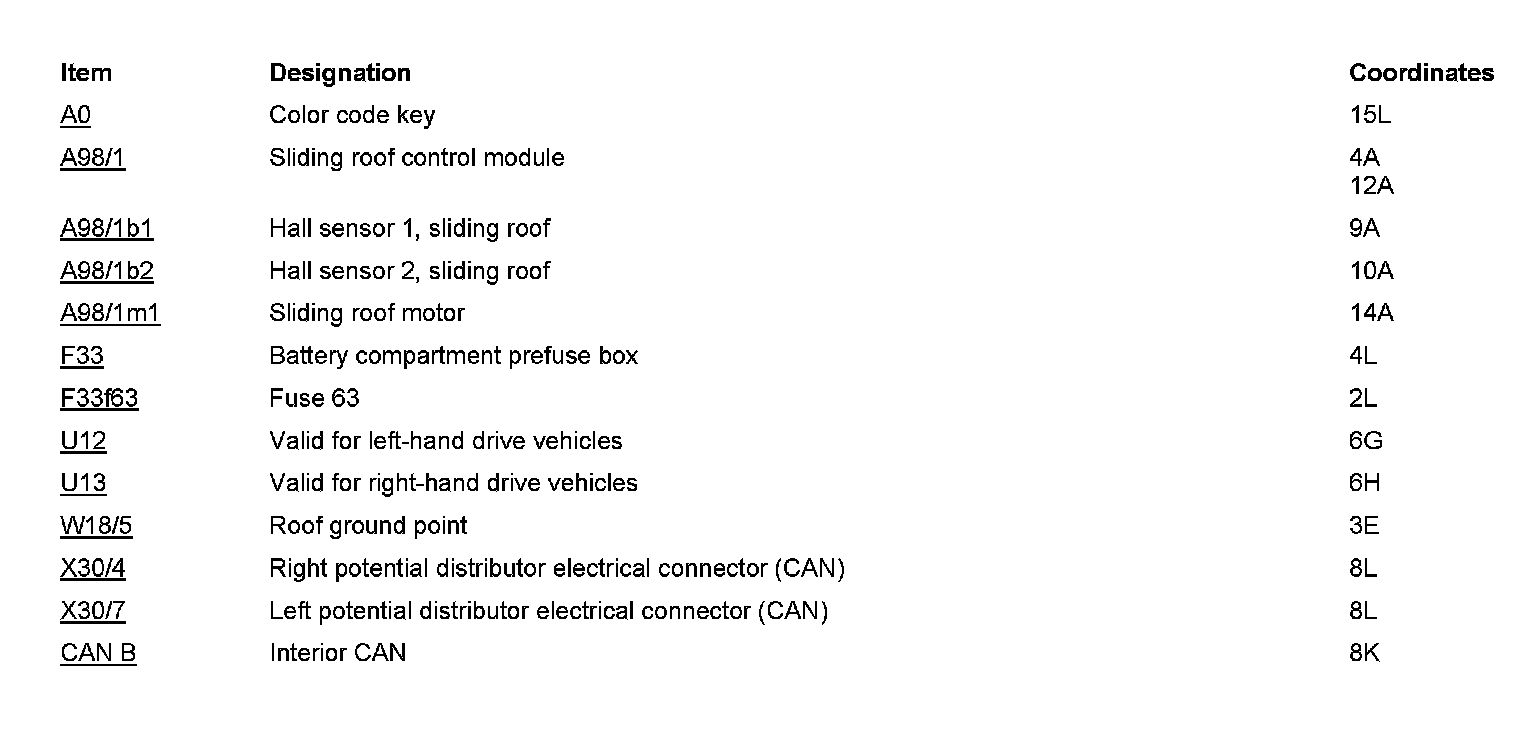

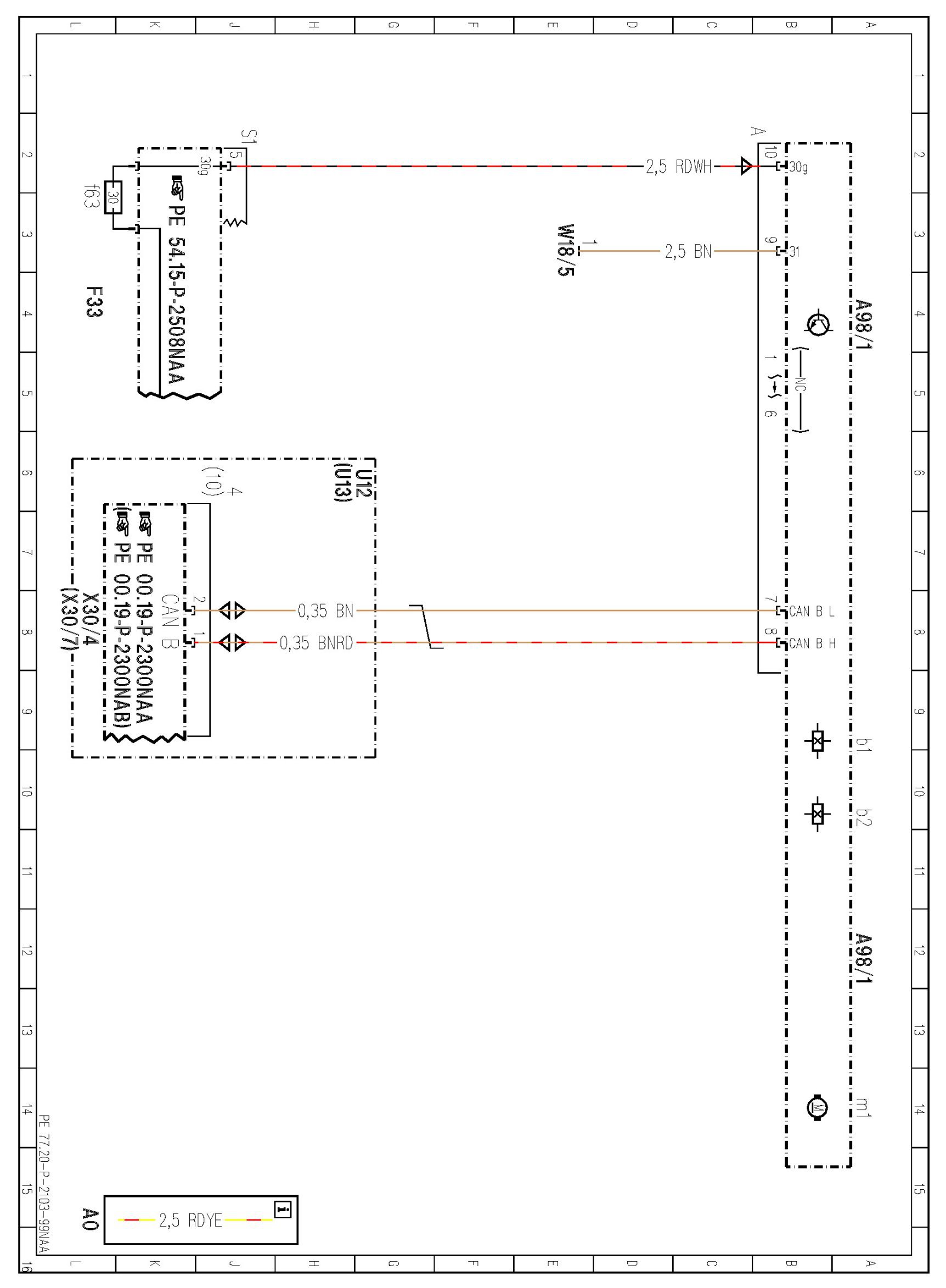

PE77.20-P-2103NAA Electric Wiring Diagram For Sliding Roof Control Module

PE77.20-P-2103NAA Electric Wiring Diagram For Sliding Roof Control Module
MODEL 166
- with CODE (414) Power Glass Tilting/sliding Roof
- Control Unit A98/1






















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
