Luggage / Roof Rack: Service and Repair
AR77.40-P-5000GZ Remove/Install Roof Railing

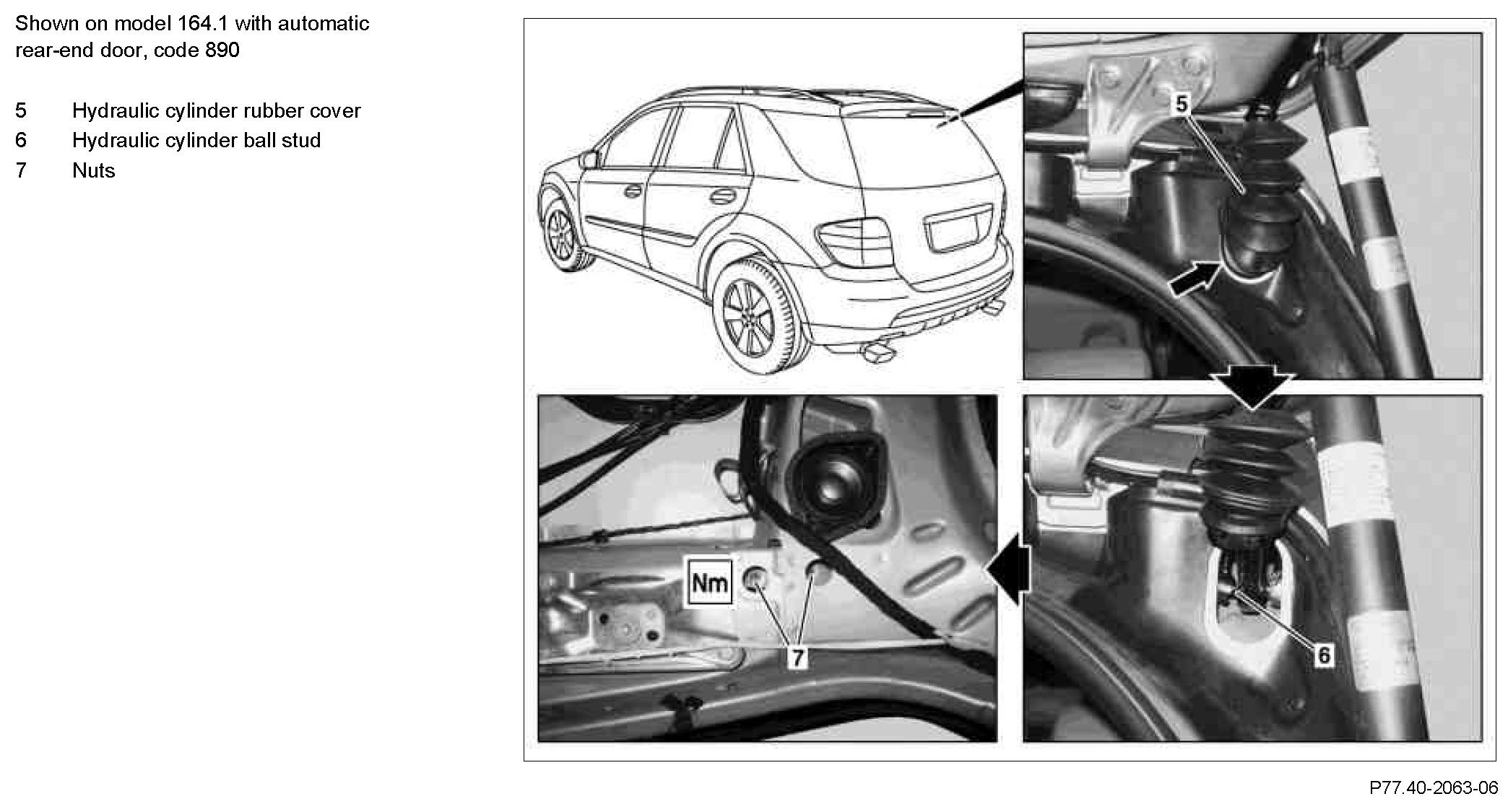

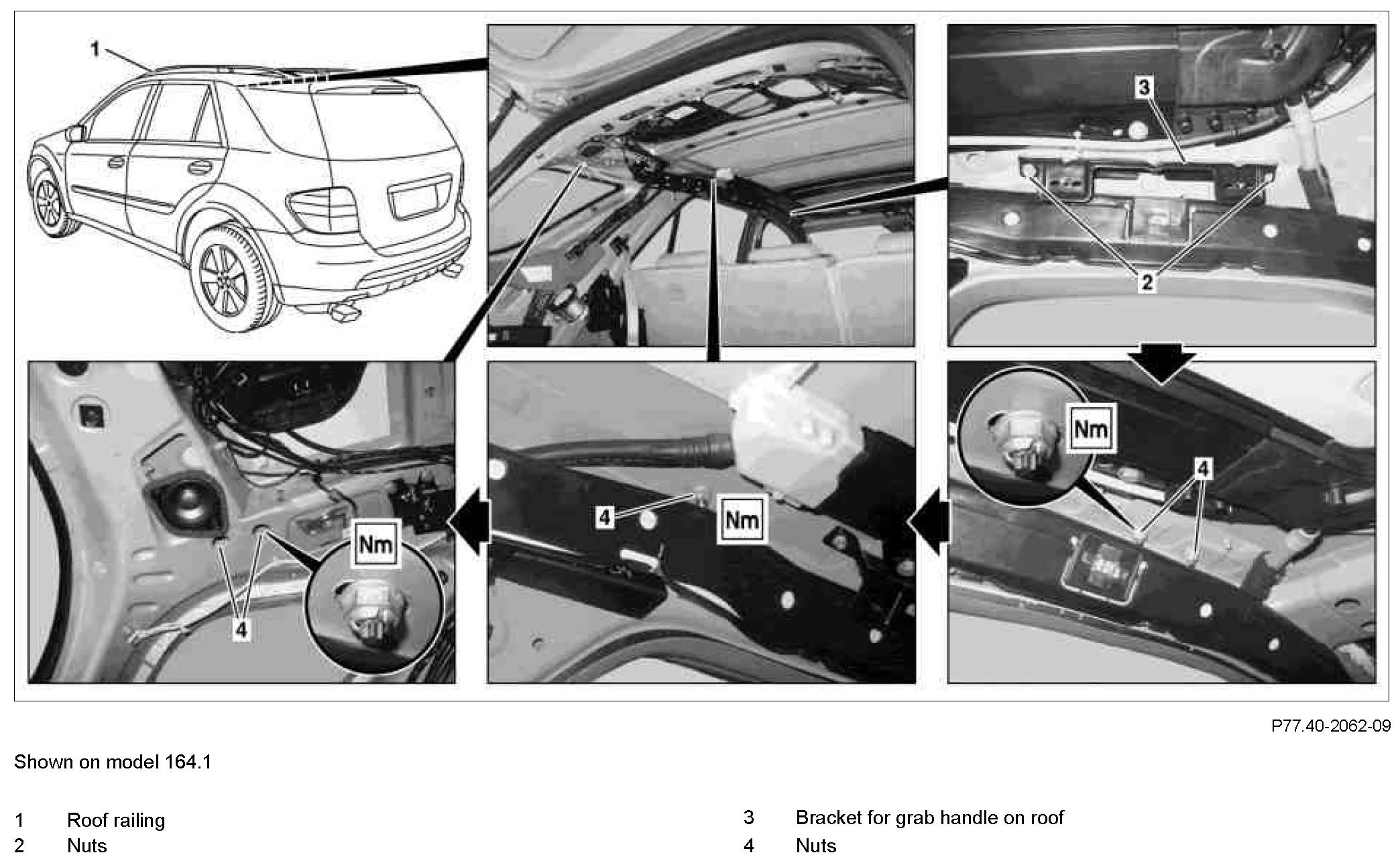

Component Identification:
Component Identification:

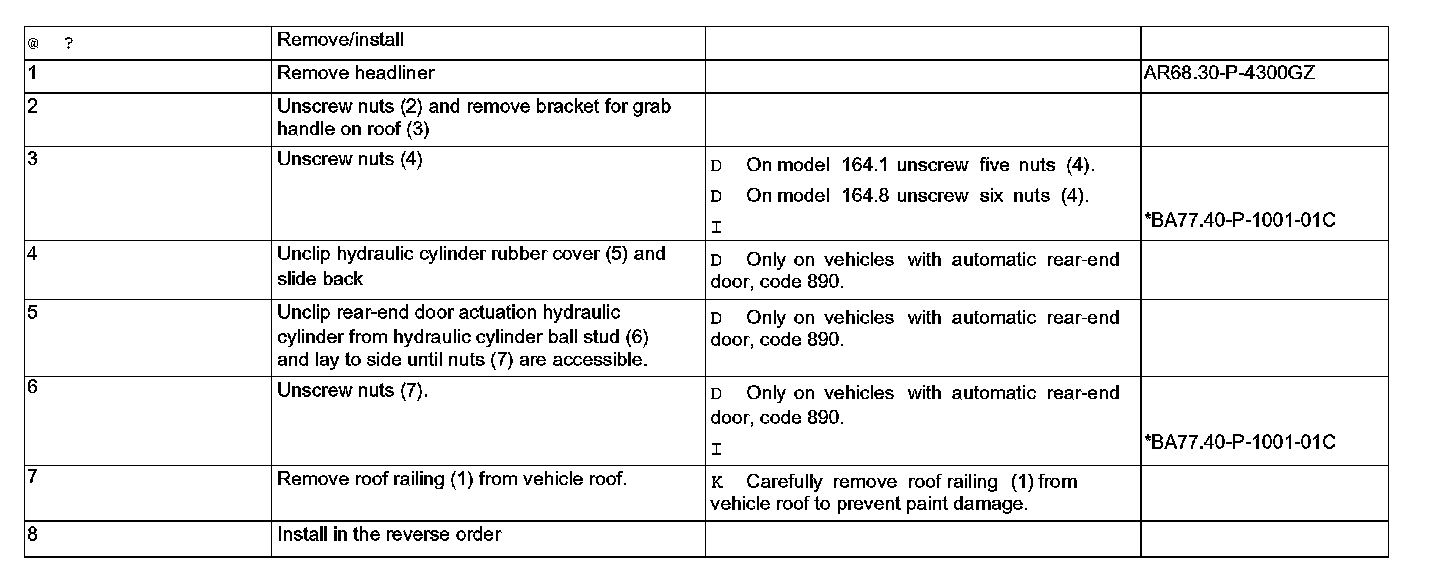

Steps 1 - 8:

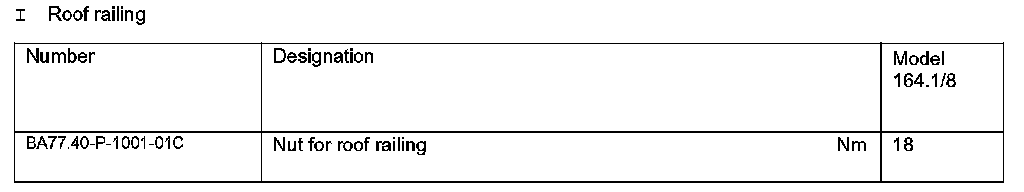

Roof Railing:
