Body - Front/Rear Door Closing Assist Inoperative

Closing assist inoperative (with option code 883).

Topic number L172.30-P-055921

Version 1

Design group 72.30 Tailgate closing assist

Date 04-12-2013

Validity MODEL 166 up to VIN end no.: A153866

Reason for change

Complaint:

Closing assist on front and/or rear door inoperative.

Note:
The door may still be manually closed.

Cause:

Closing assist drive malfunctioning.

Remedy:

Remove door module.

Replace closing assist drive. Install door module.





Symptoms

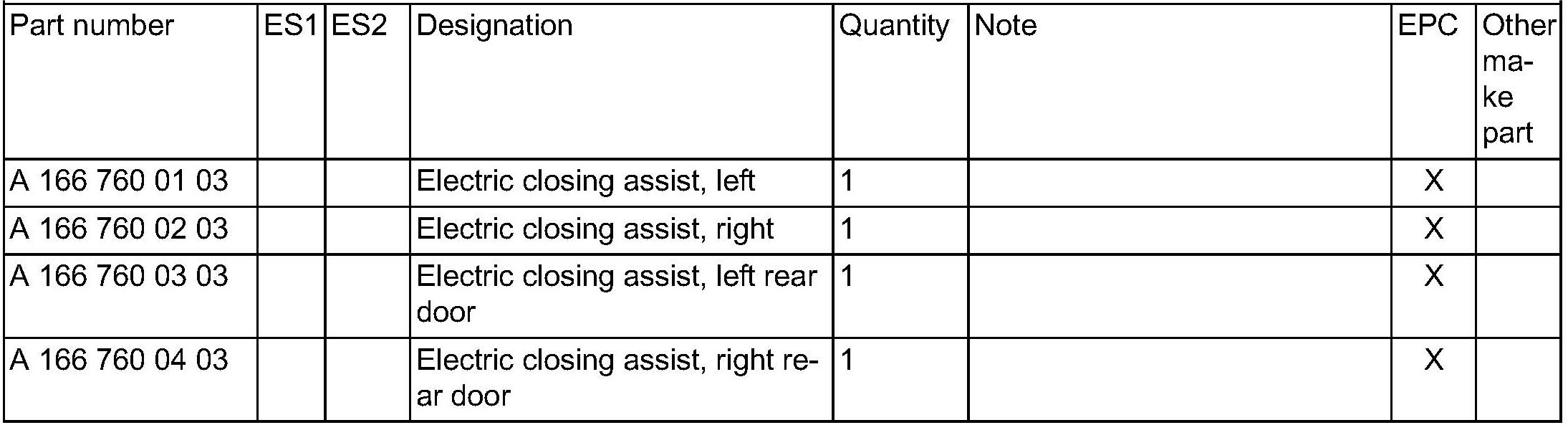

Parts





Work units

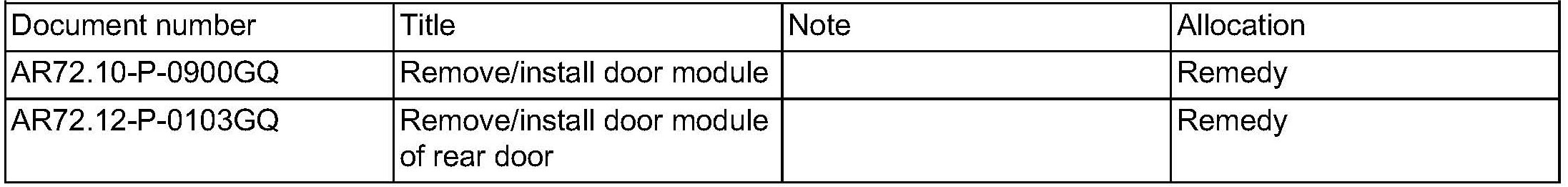

WIS-References
