AR88.70-P-9000GZ Remove/Install Complete Outside Mirror
AR88.70-P-9000GZ Remove/Install Complete Outside Mirror
AR88.70-P-9000GZ Remove/Install Complete Outside Mirror

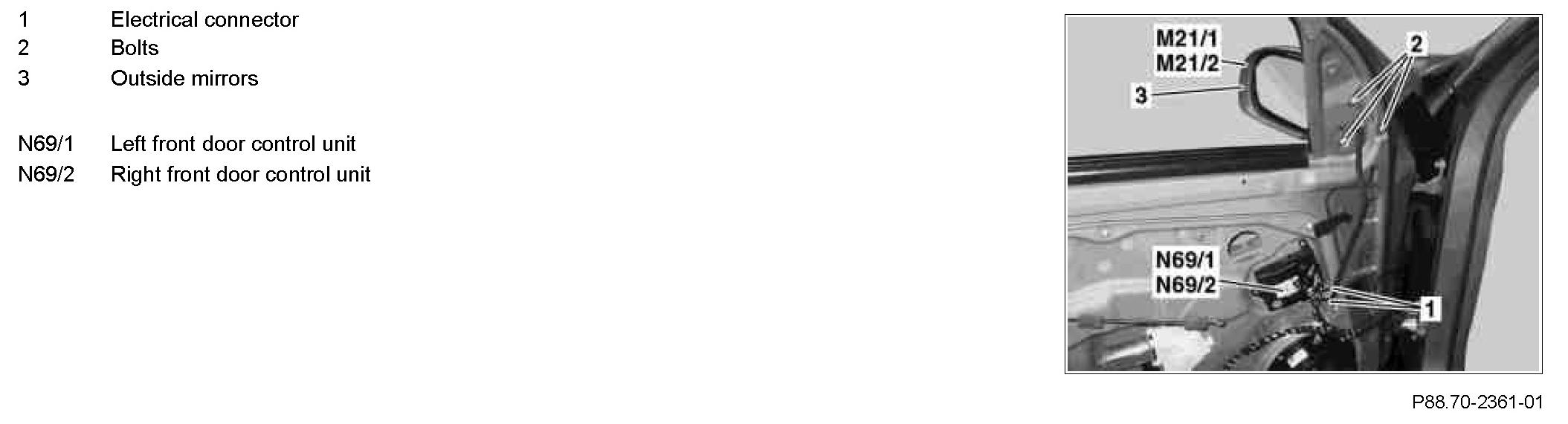

Component Identification:

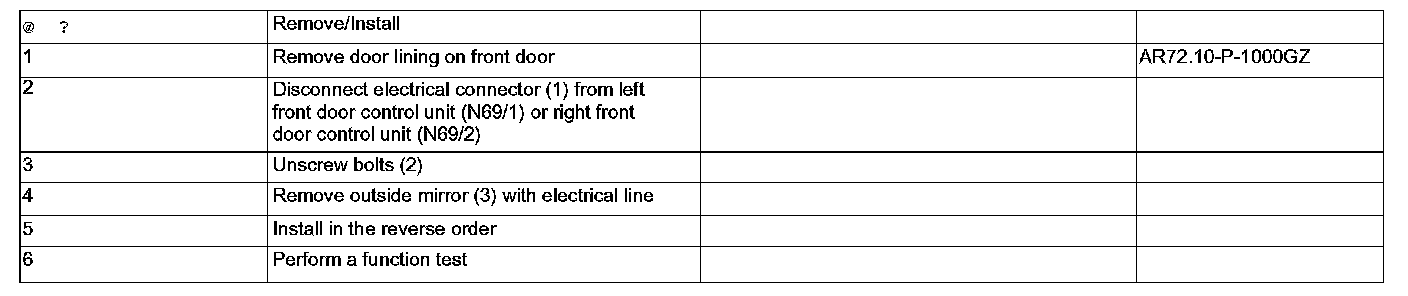

Steps 1 - 6:
