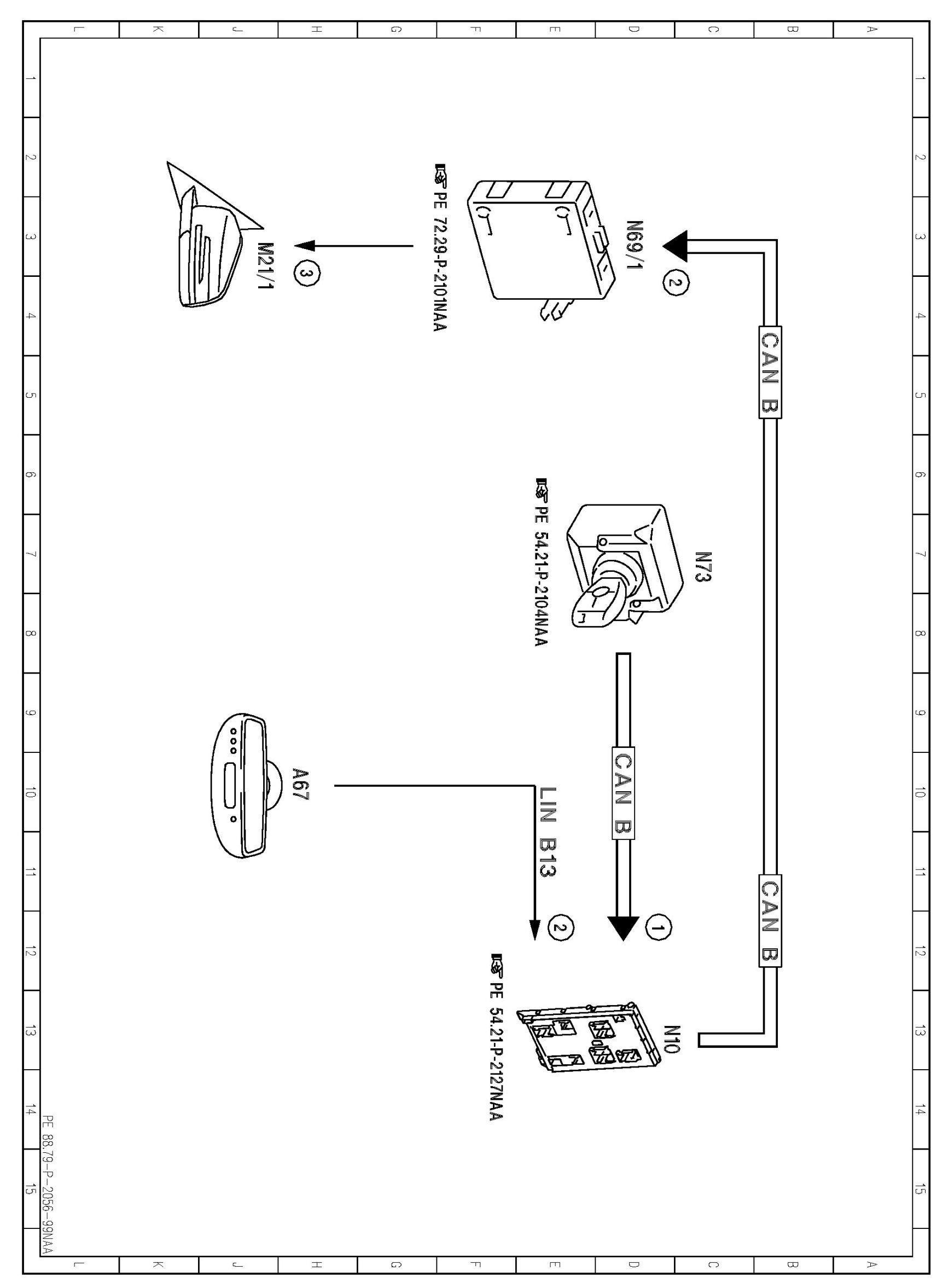

PE88.79-P-2056NAA Electrical Function Schematic For Automatic Dimming Mirror

PE88.79-P-2056NAA Electrical Function Schematic For Automatic Dimming Mirror
MODEL 166
with CODE (249) Automatically Dimming Inside Rearview Mirror And Outside Mirror (Driver)






















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
