Mercedes Benz Truck
>>
2012
>>
ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Door Locks
>>
Door Lock Cylinder
>>
Service and Repair
Door Lock Cylinder: Service and Repair
AR72.10-P-4015GZ Removing And Installing Front
Door Lock Cylinder

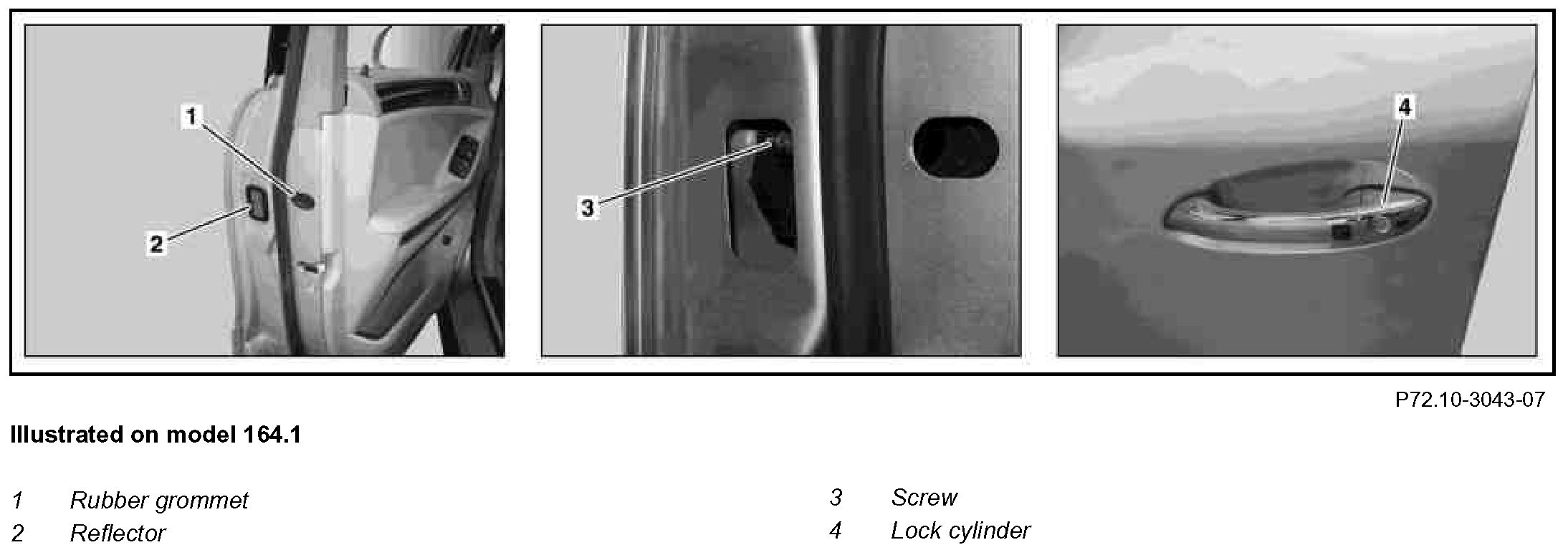

Component Identification:

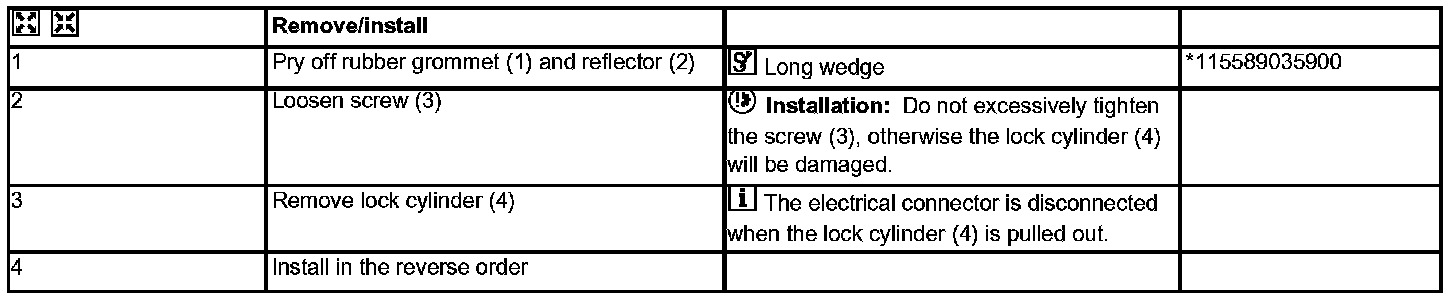

Steps 1-4:

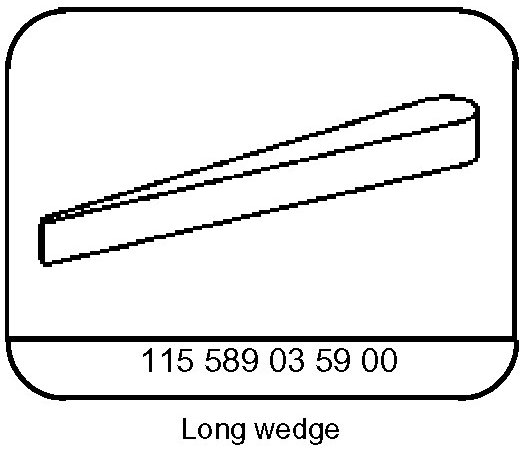

Special Tool:
