AR68.30-P-4800GQ Remove/Install Side Paneling in Trunk

AR68.30-P-4800GQ Remove/Install Side Paneling in Trunk
MODEL 166

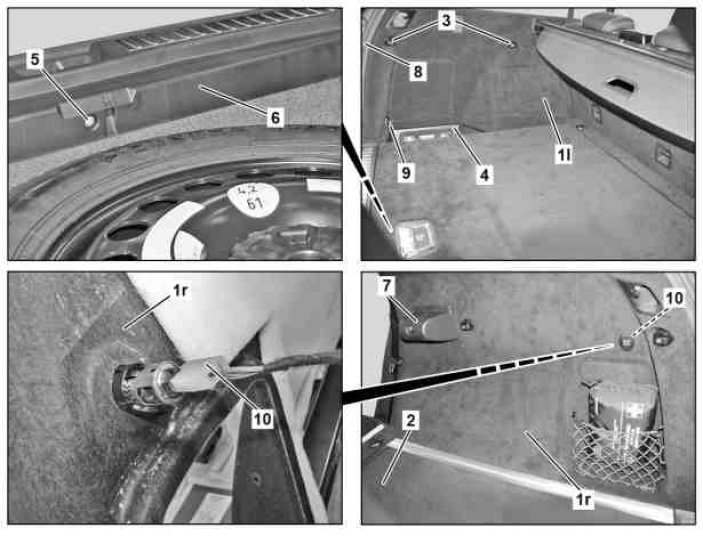

1l Left paneling
1r Right paneling
2 Load compartment floor
3 Anchoring hook
4 Stowage compartment
5 Screw
6 Cover strip
7 Support
8 Edge guard
9 Anchoring lug
10 Electrical connector








110 589 03 59 00
Mounting wedge
