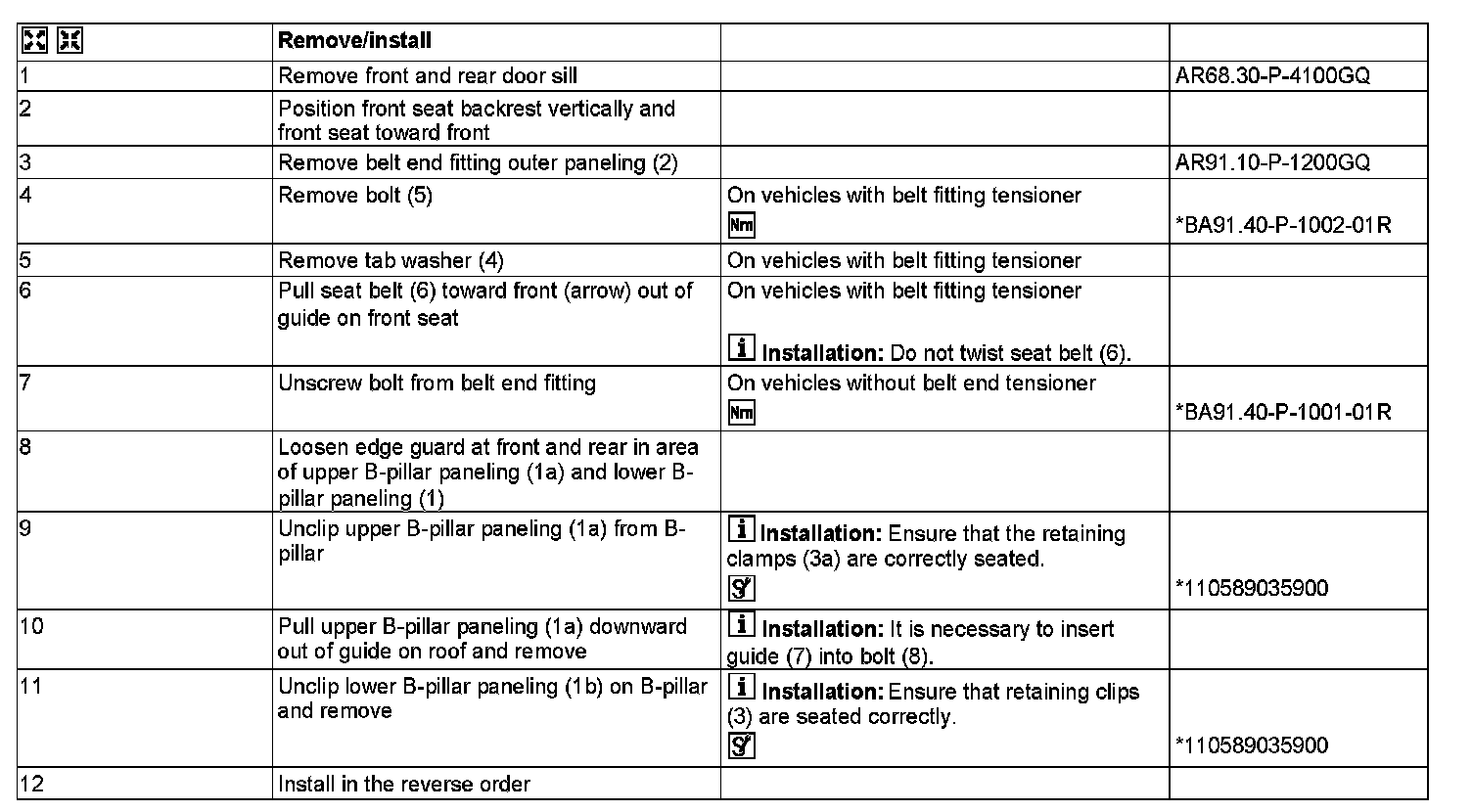

AR68.30-P-4700GQ Remove/Install Paneling on B-Pillar

AR68.30-P-4700GQ Remove/Install Paneling on B-pillar
MODEL 166

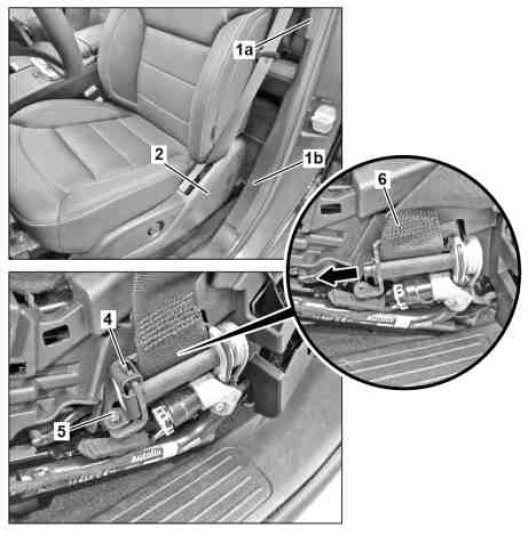

Shown on vehicle with belt fitting tensioner

1a Upper B-pillar paneling
1b Bottom B-pillar paneling
2 Belt end fitting outer paneling
4 Locking plate
5 Screw
6 Seat belt

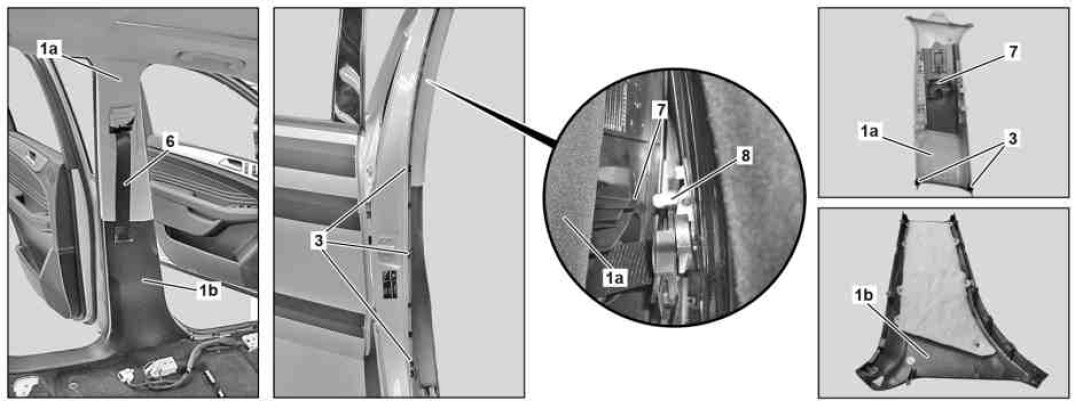

1a Upper B-pillar paneling
1b Bottom B-pillar paneling
3 Retaining clips
7 Guide
8 Pin














110 589 03 59 00
Mounting wedge
