AR68.30-P-4495GQ Remove/Install Paneling on D-Pillar

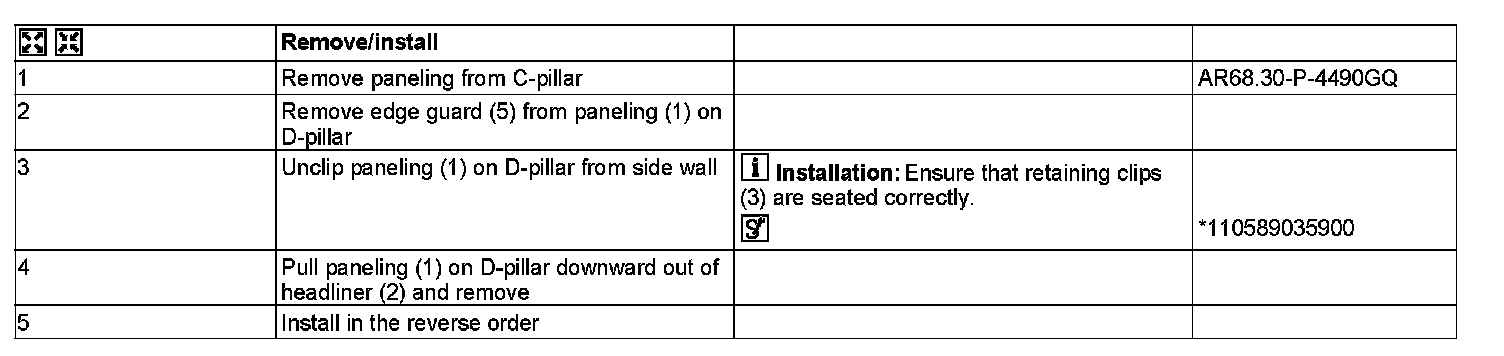

AR68.30-P-4495GQ Remove/Install Paneling on D-pillar
MODEL 166

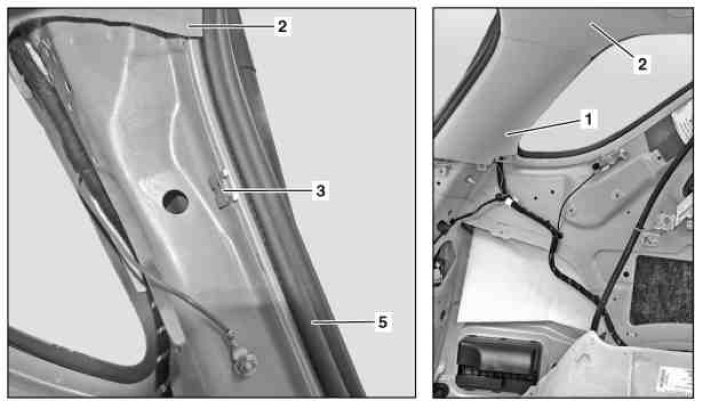

1 Cover
2 Headliner
3 Retaining clamp
5 Edge guard








110 589 03 59 00
Mounting wedge
