Body - Noises When Retracting The Twin Roller Blinds

Model series 166 - Noises from twin roller blinds when retracting (code 541 only)

Topic number LI68.50-P-054110

Version 1

Design group 68.50 Curtains, screens, luggage nets, load anchorage points

Date 10-03-2012

Validity Model series 166 up to chassis number *A076753
Only code 541 "Load compartment cover incl. safety net" or twin roller blinds

Reason for change

Complaint:
Noises when retracting the twin roller blinds.

Cause:
The hard end stops on the twin roller blinds or load compartment cover incl. safety net (code 541) can cause annoying noises.

Production changed to soft felt stops as of chassis number *A076753

Remedy:

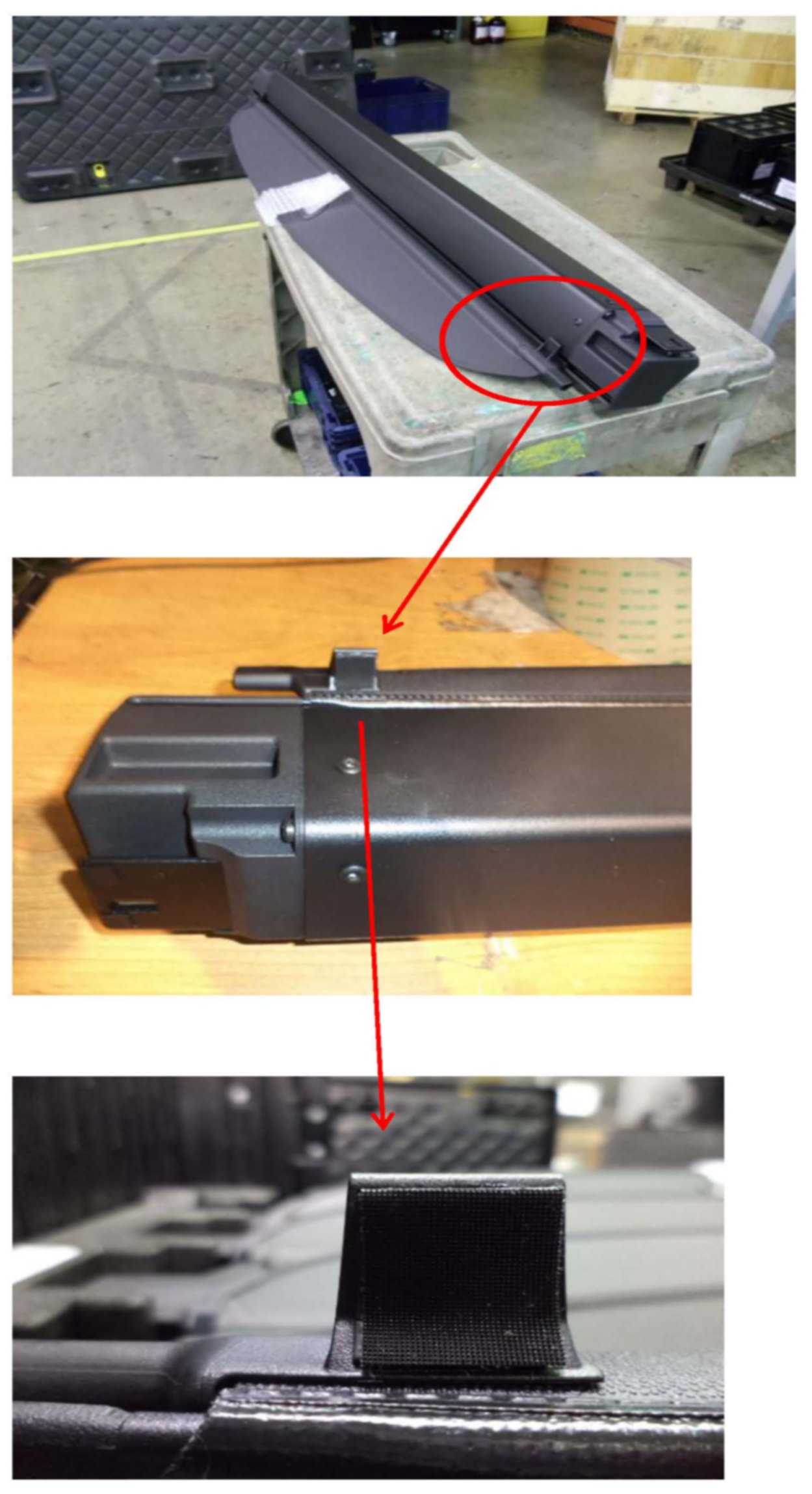

Aftermarket application of felt to end stops:

1. Verify the part number A 166 810 00 09.

2. Clean and roughen the bonding surface (surface of old stop).

3. Glue pieces of felt on both sides.





Attachments

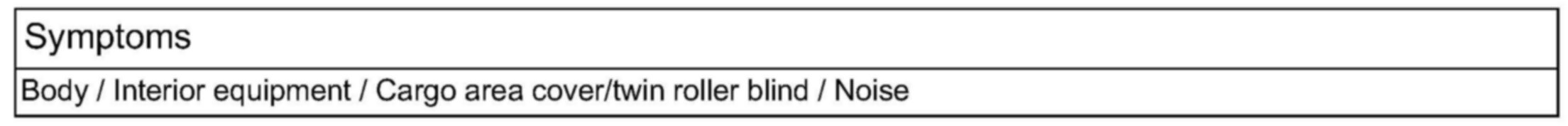

Symptoms





Attachment
