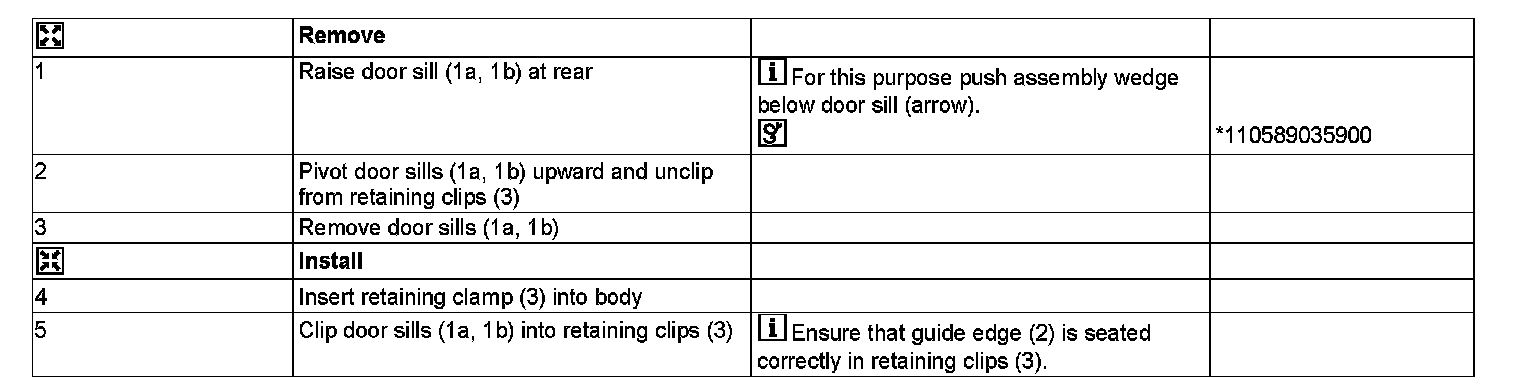

AR68.30-P-4100GQ Remove/Install Door Sill
AR68.30-P-4100GQ Remove/Install Door Sill
AR68.30-P-4100GQ Remove/Install Door Sill

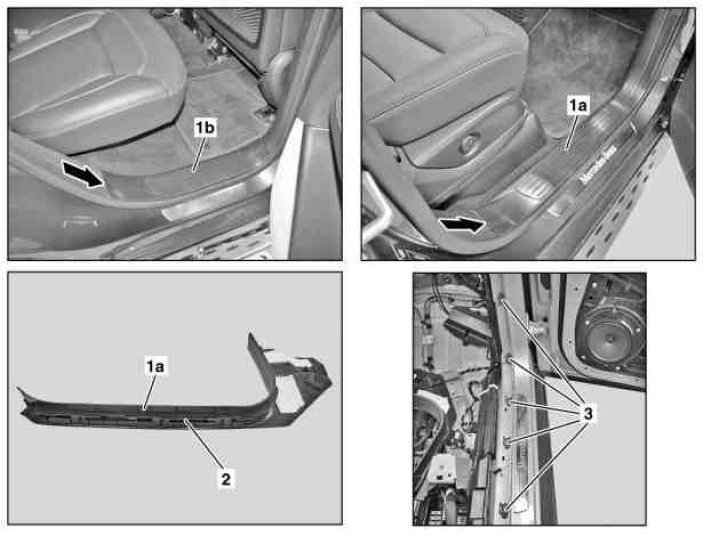

MODEL 166
1a Front door sill molding
1b Rear door sill molding
2 Guide edge
3 Retaining clips
110 589 03 59 00
Mounting wedge
