Home >> Mercedes Benz Truck >> 2012 >> ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Scuff Plate >> Service and Repair >> Procedures >> AN82.20-P-0001GQ Retrofit Illuminated Door Sill Molding

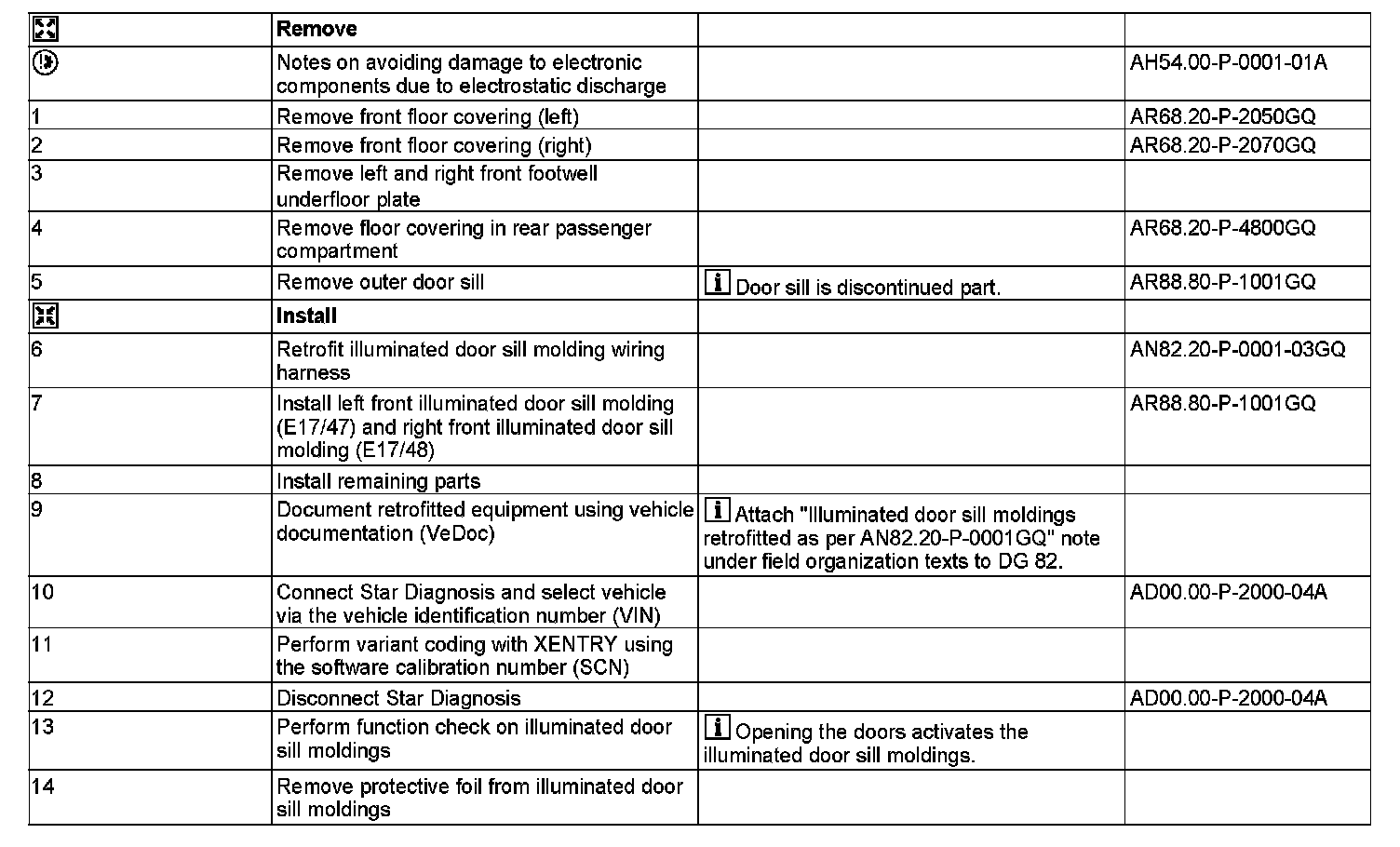

AN82.20-P-0001GQ Retrofit Illuminated Door Sill Molding




AN82.20-P-0001GQ Retrofit Illuminated Door Sill Molding
MODEL 166.0
- except CODE (876) Interior lights package





E17/47 Left front illuminated door sill molding
E17/48 Right front illuminated door sill molding
