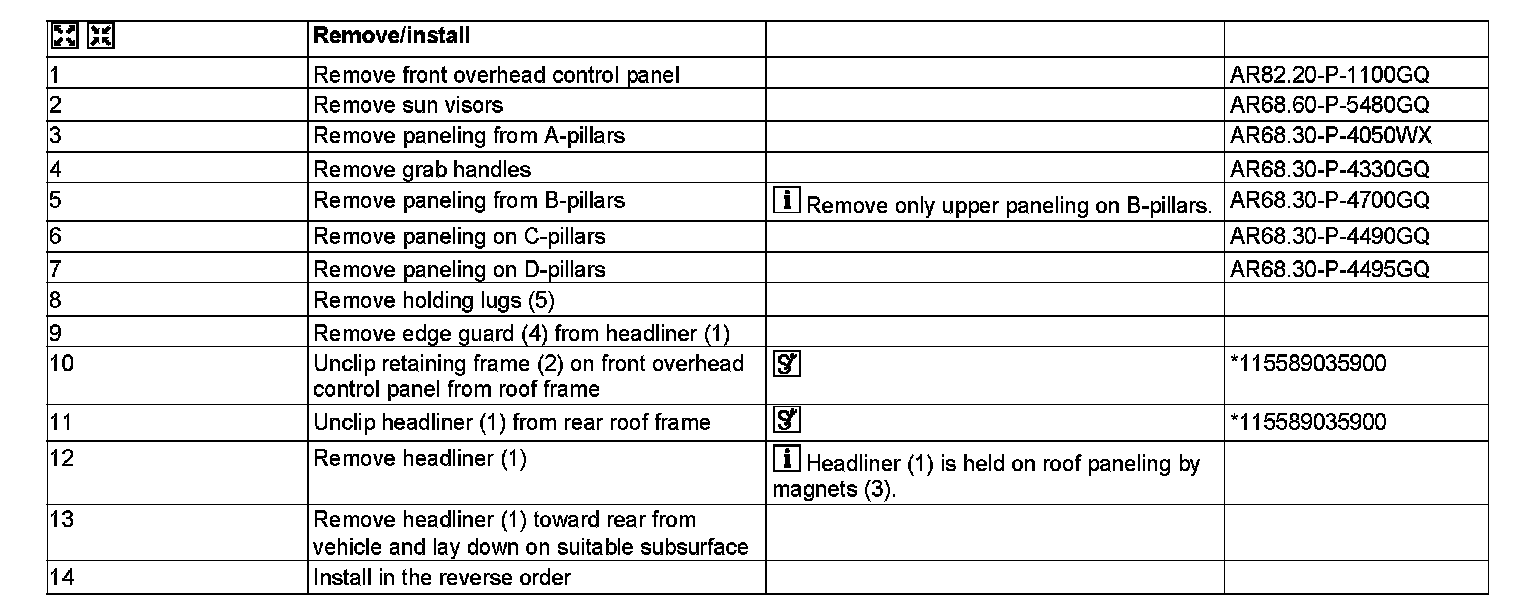

Removal and Replacement

AR68.30-P-4300GQ Remove/Install Headliner
MODEL 166

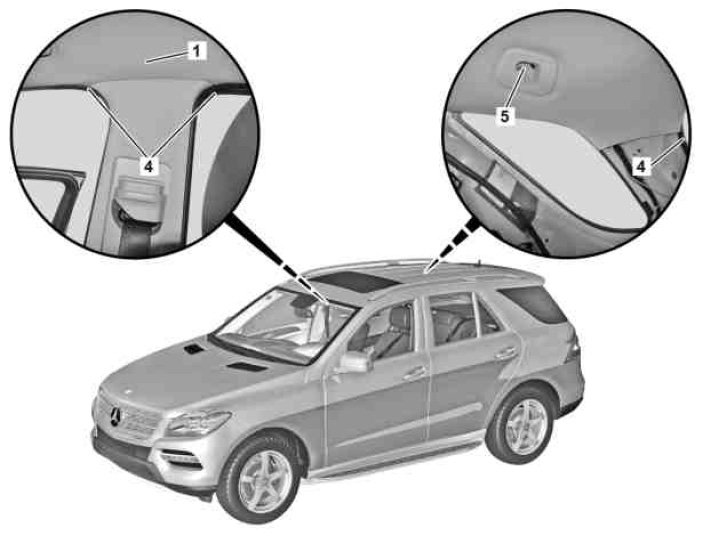

Shown on vehicle with code (414) Power glass tilting/sliding roof

1 Headliner
4 Edge guards
5 Retaining eye

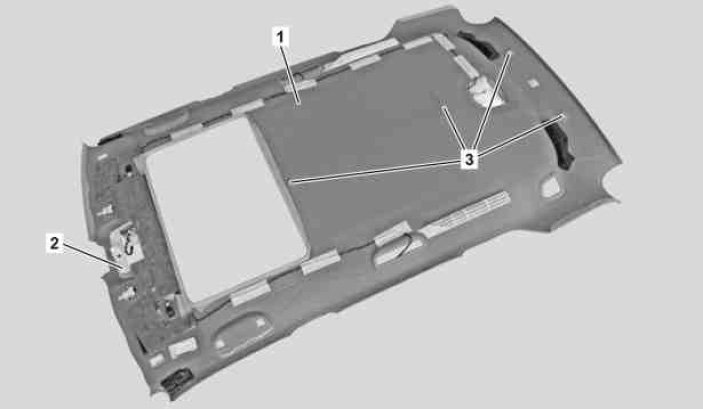

Shown on vehicle with code (414) Power glass tilting/sliding roof

1 Headliner
2 Retaining frame
3 Solenoids








115 589 03 59 00
Long wedge
