AR68.10-P-1520GQ Remove/Install Cover Below Instrument Panel (Right)

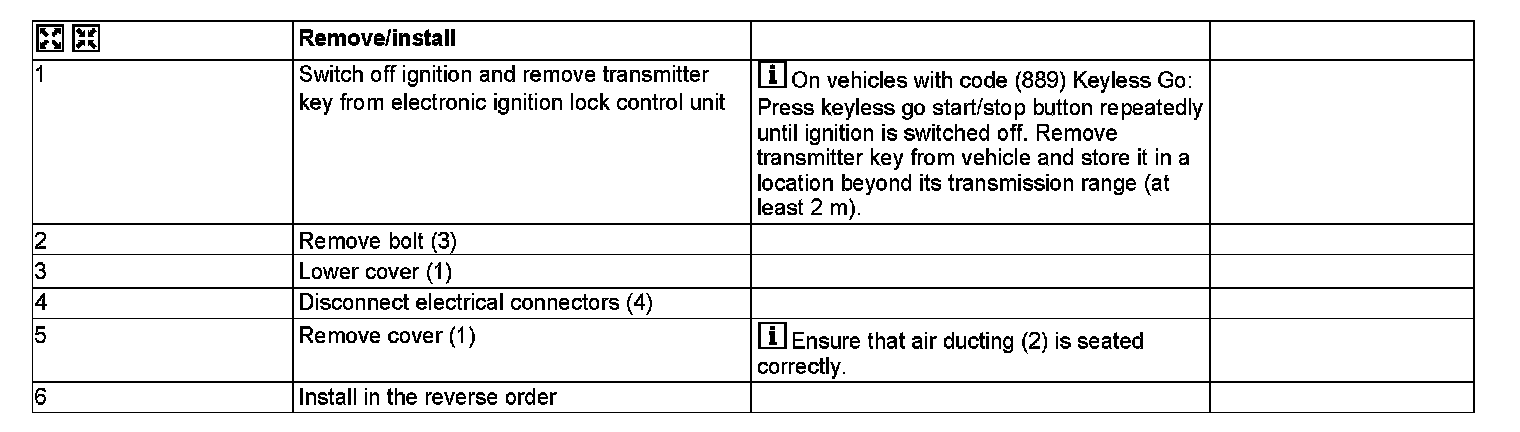

AR68.10-P-1520GQ Remove/Install Cover Below Instrument Panel (right)
MODEL 166

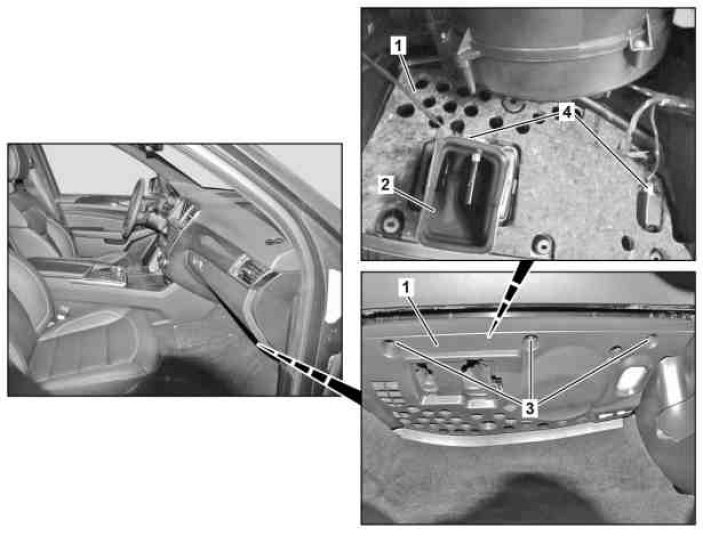

1 Cover
2 Air ducting
3 Bolts
4 Electrical connectors
