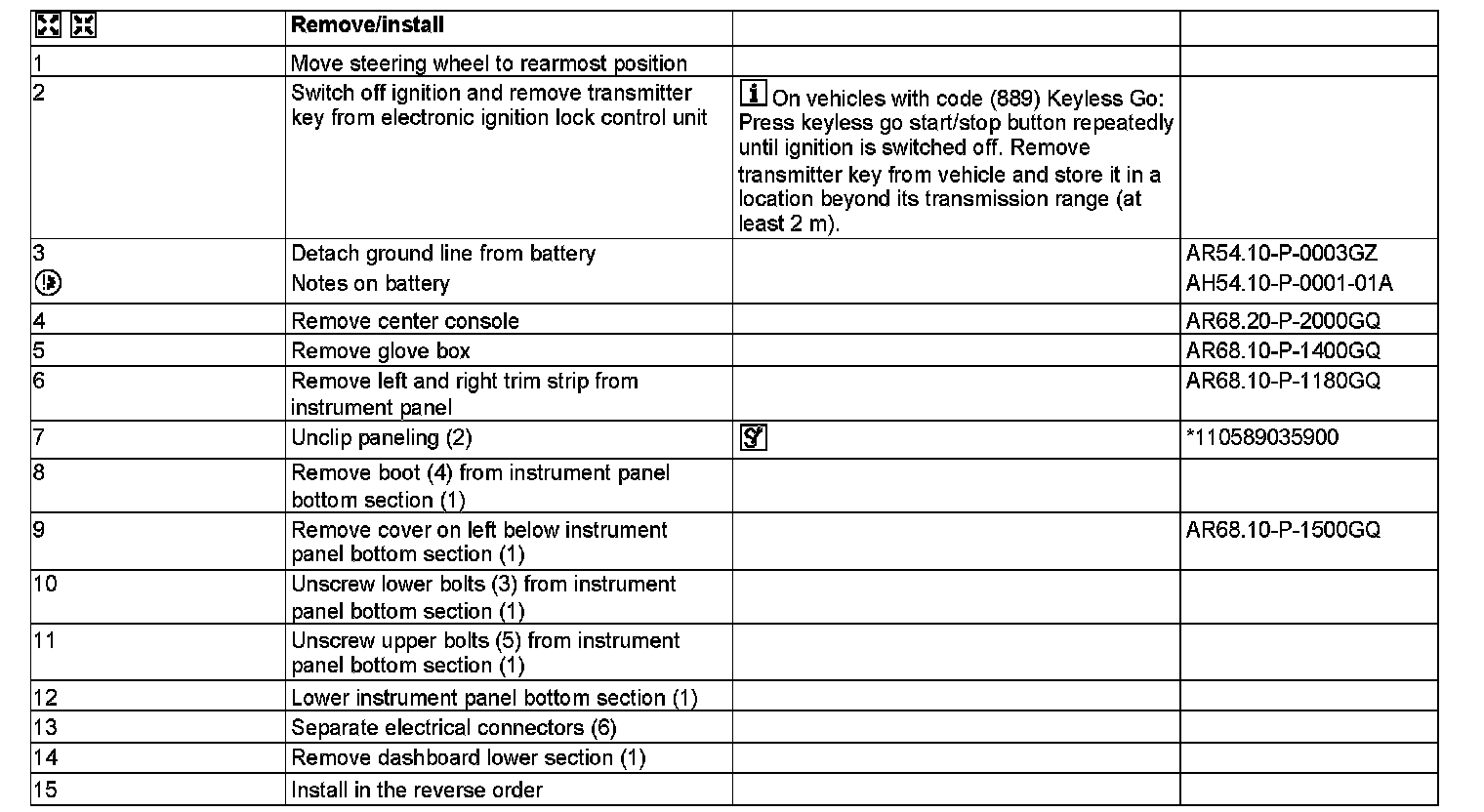

AR68.10-P-1505GQ Remove/Install Dashboard Lower Section on Driver Side

AR68.10-P-1505GQ Remove/Install Dashboard Lower Section on Driver Side
MODEL 166

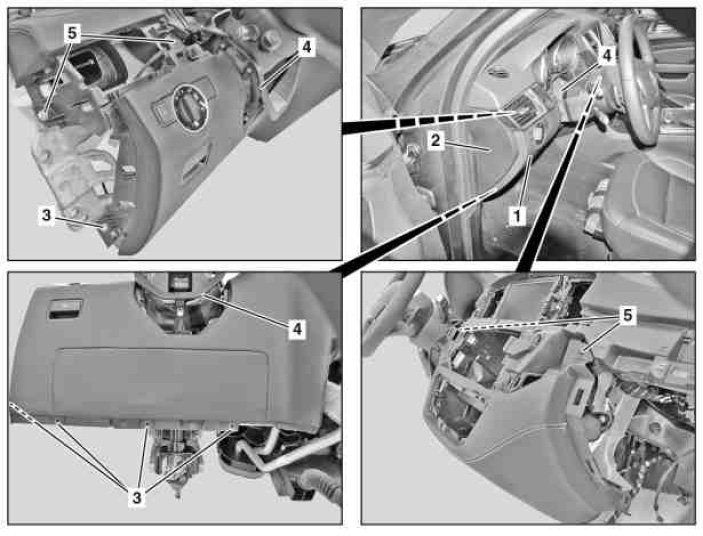

1 Lower section of dashboard
2 Cover
3 Bolts
4 Boot
5 Bolts

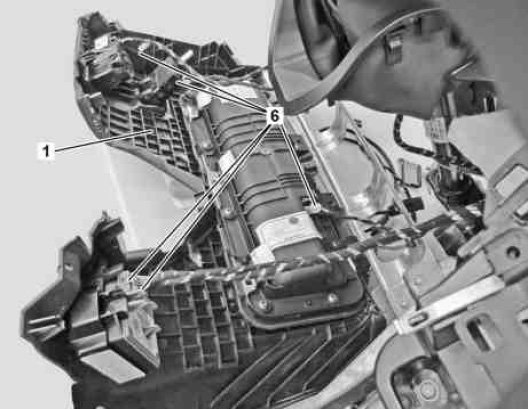

1 Lower section of dashboard
6 Electrical connectors








110 589 03 59 00
Mounting wedge
