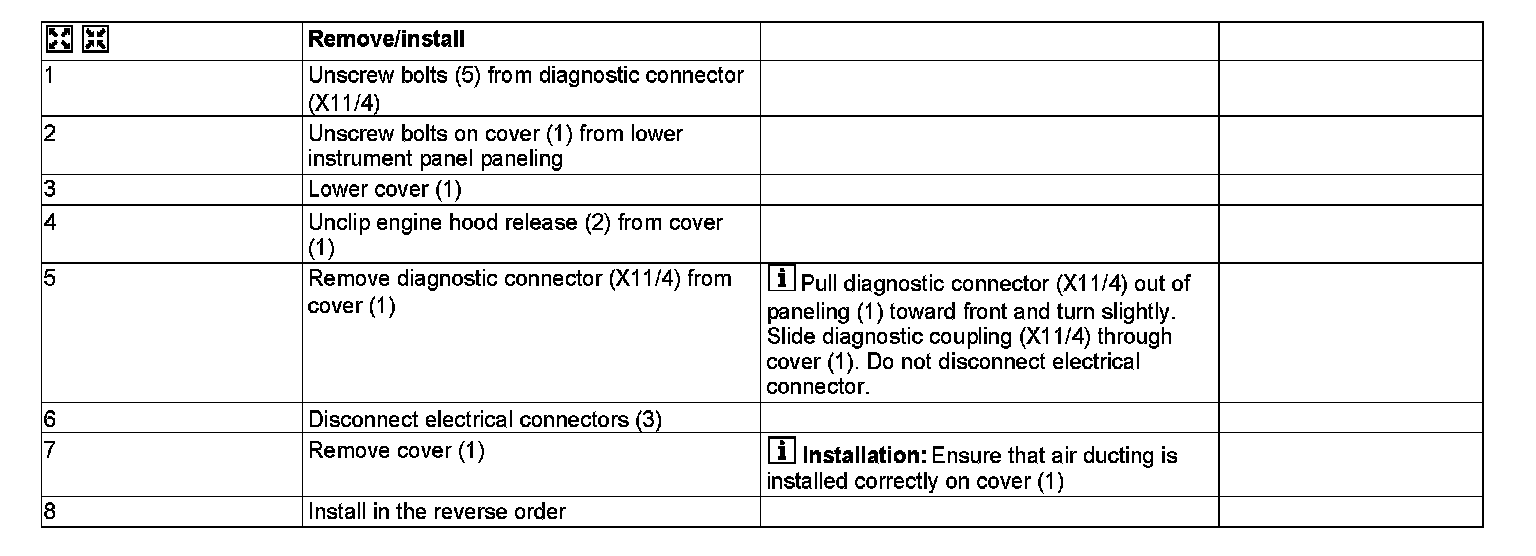

AR68.10-P-1500GQ Remove/Install Cover Below Instrument Panel (Left)




AR68.10-P-1500GQ Remove/Install Cover Below Instrument Panel (left)
MODEL 166

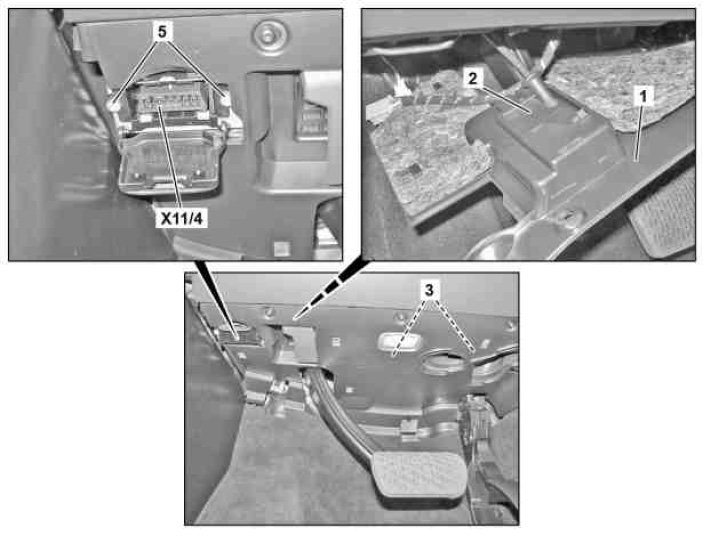

1 Cover
2 Hood unlocking
3 Electrical connectors
5 Bolts

X11/4 Diagnostic connector
