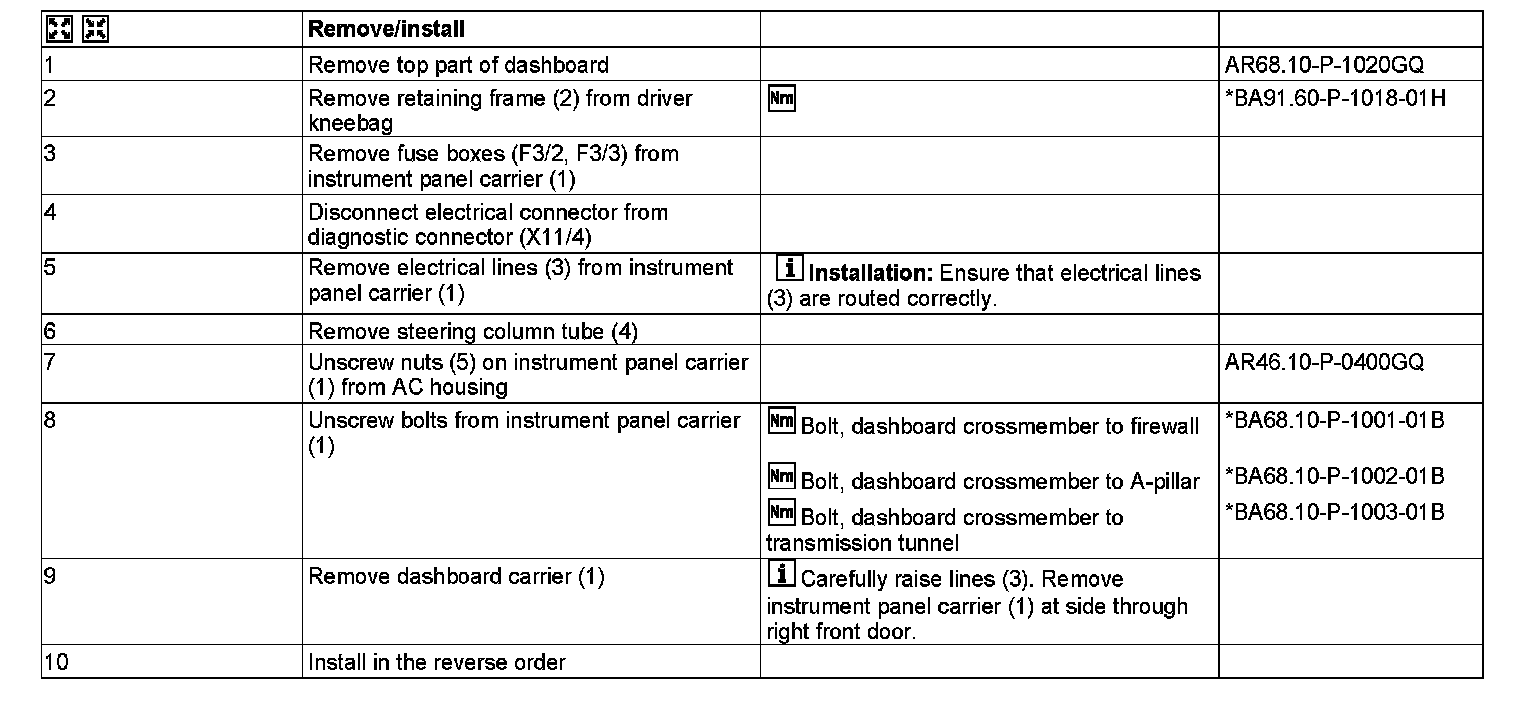

AR68.10-P-1111GQ Remove/Install Dashboard Carrier

AR68.10-P-1111GQ Remove/Install Dashboard Carrier
MODEL 166





1 Instrument panel carrier
2 Retaining frame
3 Electrical line
4 Jacket tube
5 Nut

F3/2 Fuse box, circuit 30, cockpit
F3/3 Cockpit circuit 30g fuse box
X11/4 Diagnostic connector
