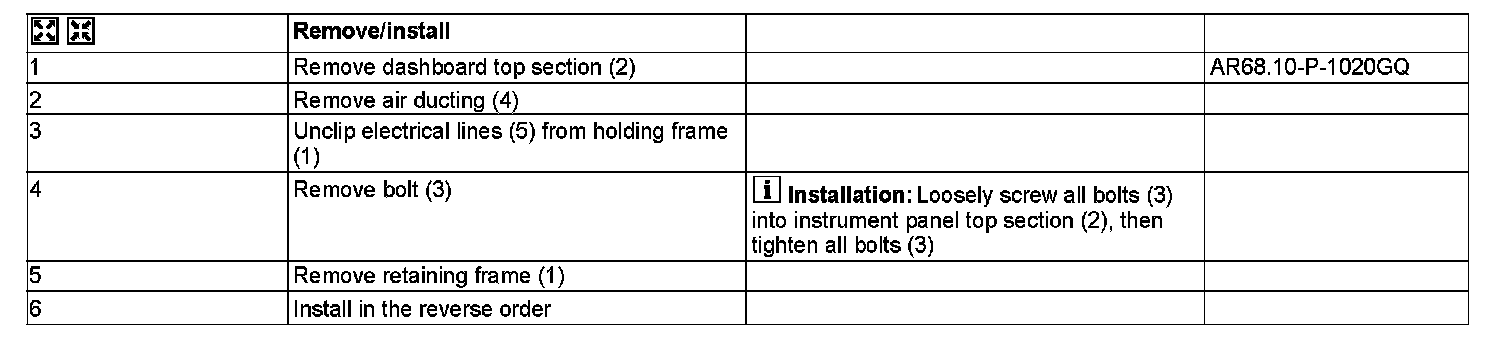

AR68.10-P-1031GQ Remove/Install Retaining Frame Controls in Dashboard Center Section




AR68.10-P-1031GQ Remove/Install Retaining Frame Controls in Dashboard Center Section
MODEL 166

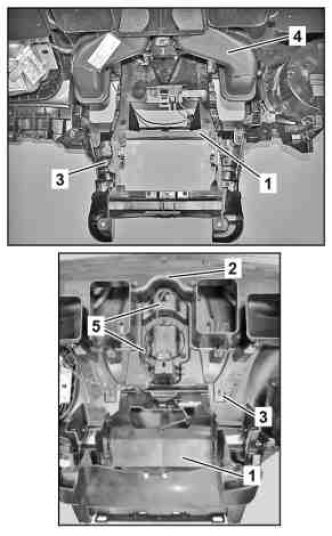

1 Retaining frame
2 Dashboard top section
3 Bolts
4 Air ducting
5 Electrical line
