AR68.10-P-1020GQ Remove/Install Dashboard Top Section

AR68.10-P-1020GQ Remove/Install Dashboard Top Section
MODEL 166

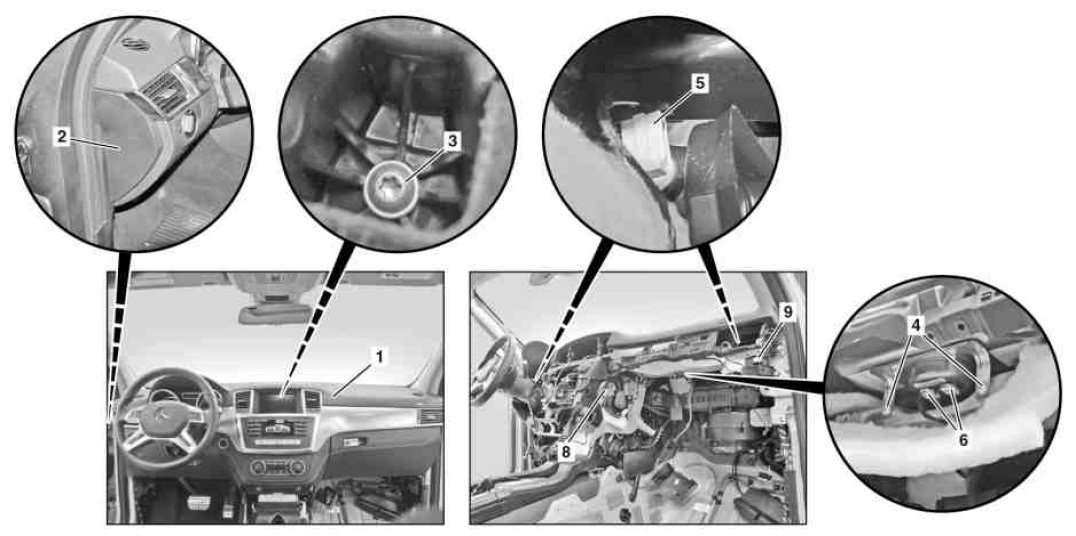

1 Dashboard top section
2 Cover
3 Screw
4 Bolts
5 Electrical connector
6 Electrical connector
8 Auxiliary fan
9 Screw

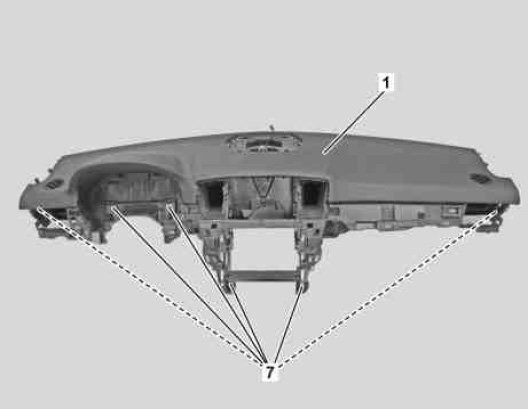

1 Dashboard top section
7 Bolts
