AR68.20-P-2070GQ Remove/Install Front Floor Covering (Right)

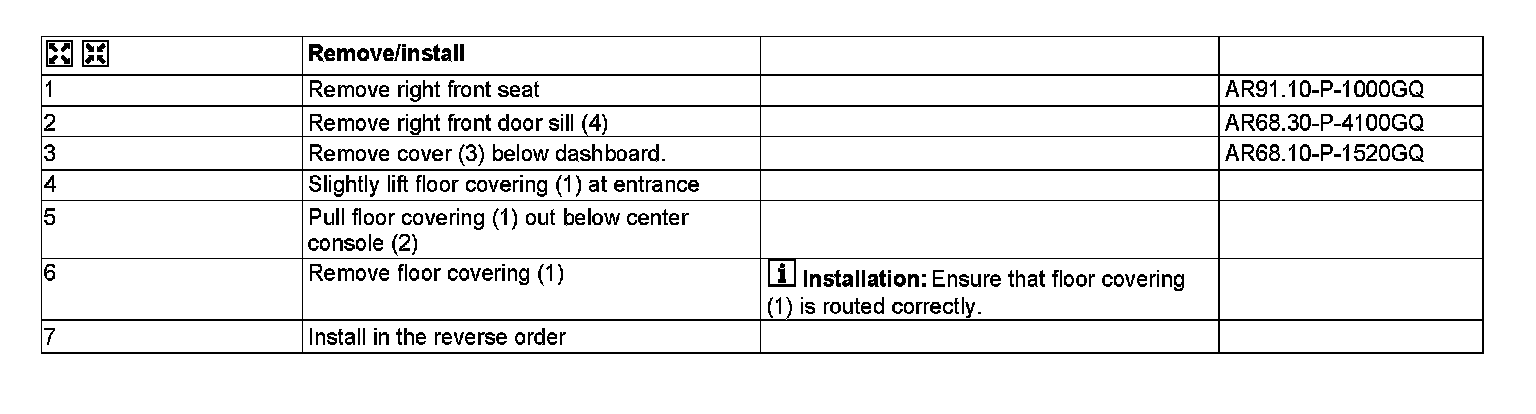

AR68.20-P-2070GQ Remove/Install Front Floor Covering (right)
MODEL 166

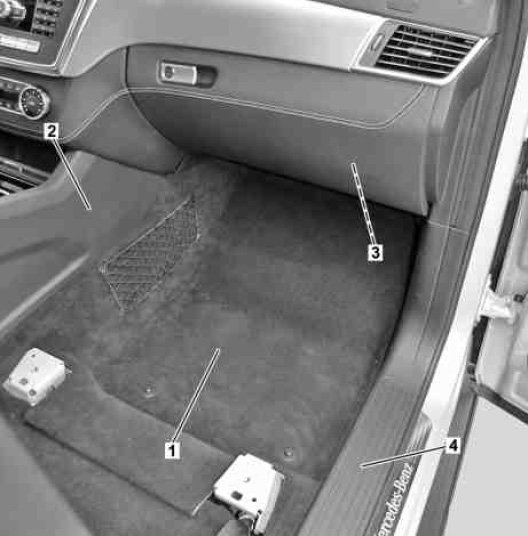

1 Floor Covering
2 Center console
3 Cover
4 Door sill
