Grille: Service and Repair

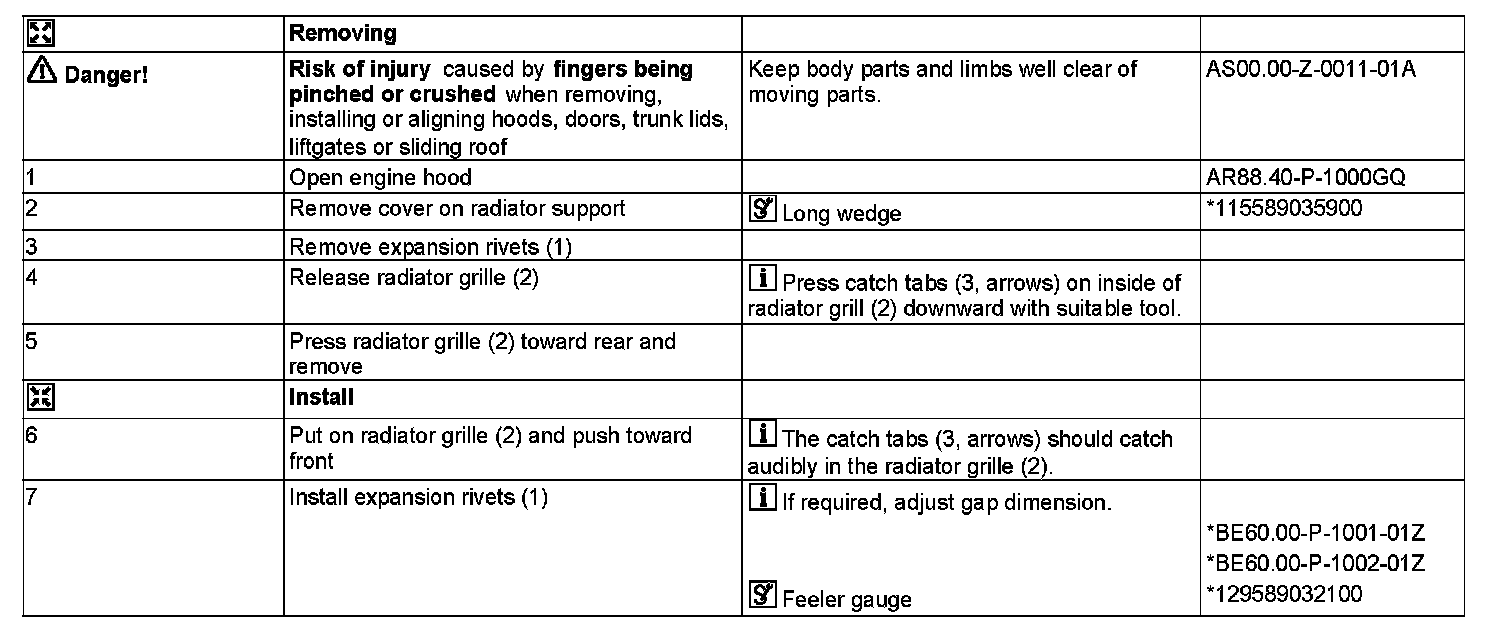

AR88.40-P-4001GQ Remove/Install Radiator Grille
MODEL 166.0

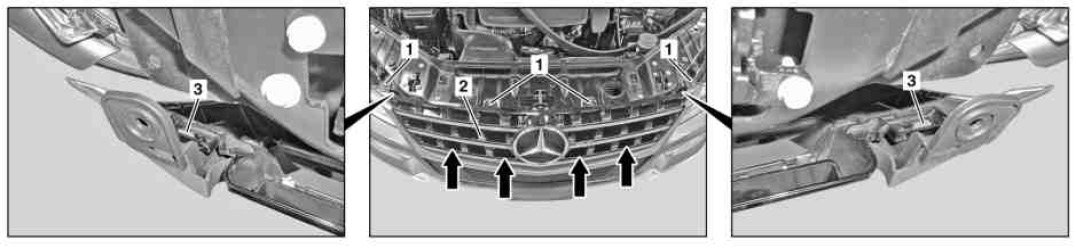

1 Expanding rivets
2 Radiator grille
3 Catch tabs











115 589 03 59 00
Long wedge





129 589 03 21 00
Feeler gauge
