Rear Subframe: Service and Repair

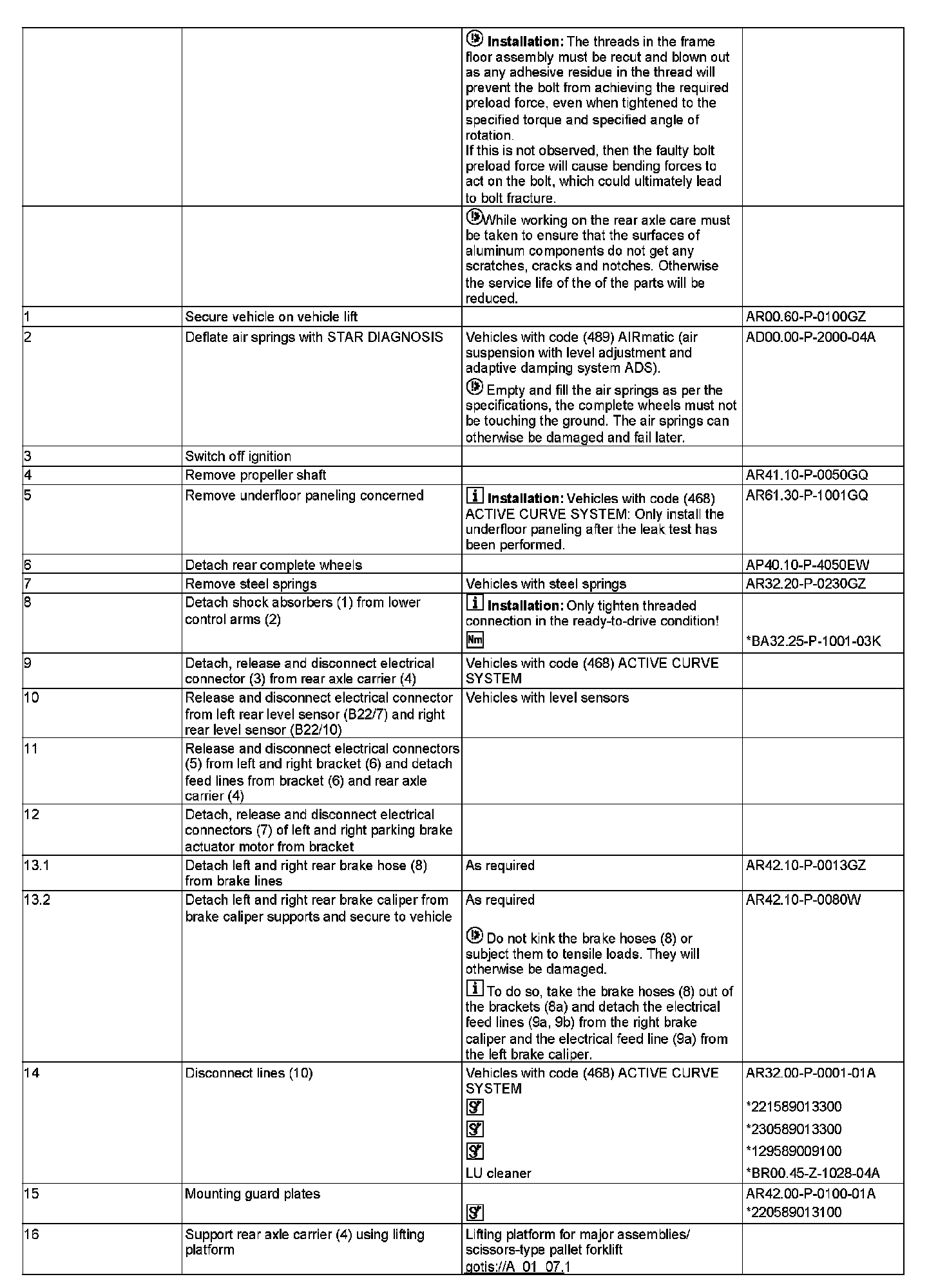

AR35.10-P-0010GQ Remove/Install Complete Rear Axle

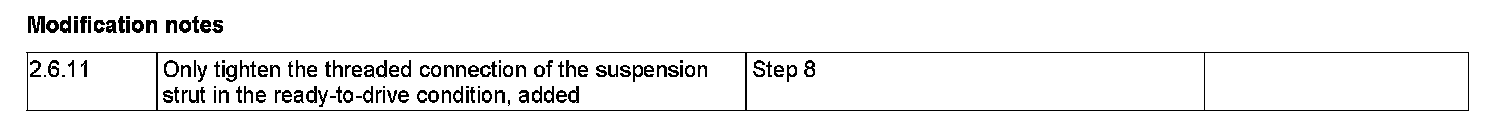

MODEL 166





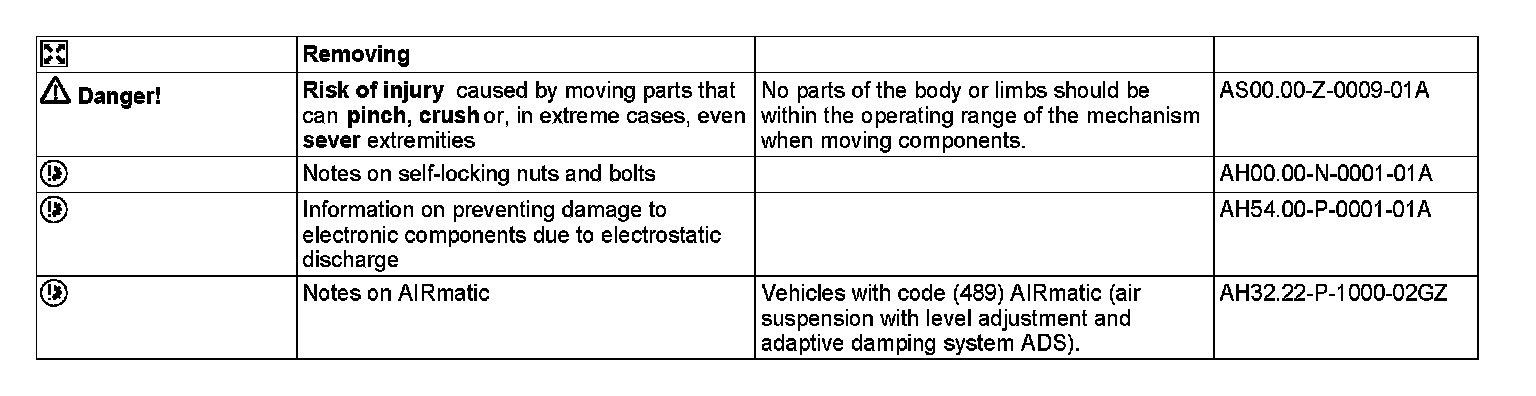

Shows model 166.057

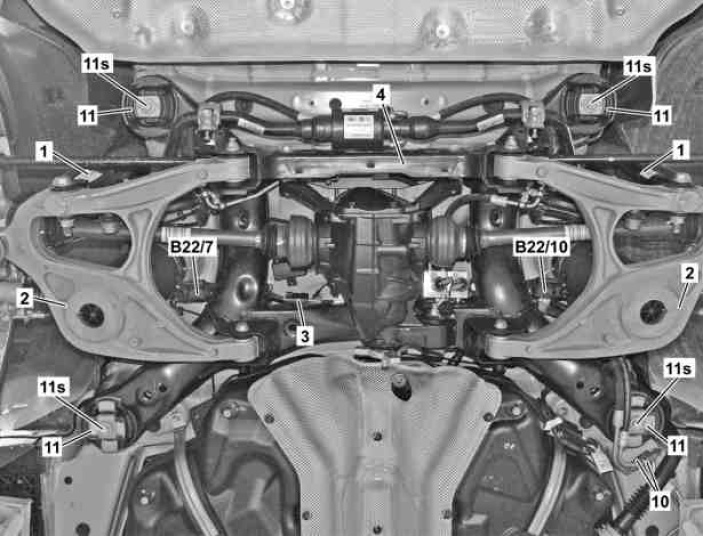

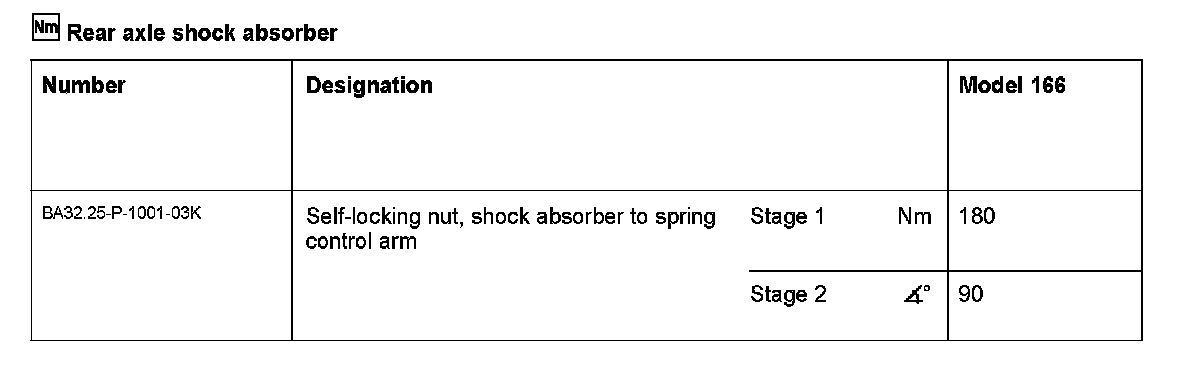

1 Shock absorber
2 Lower transverse control arm
3 Electrical connector

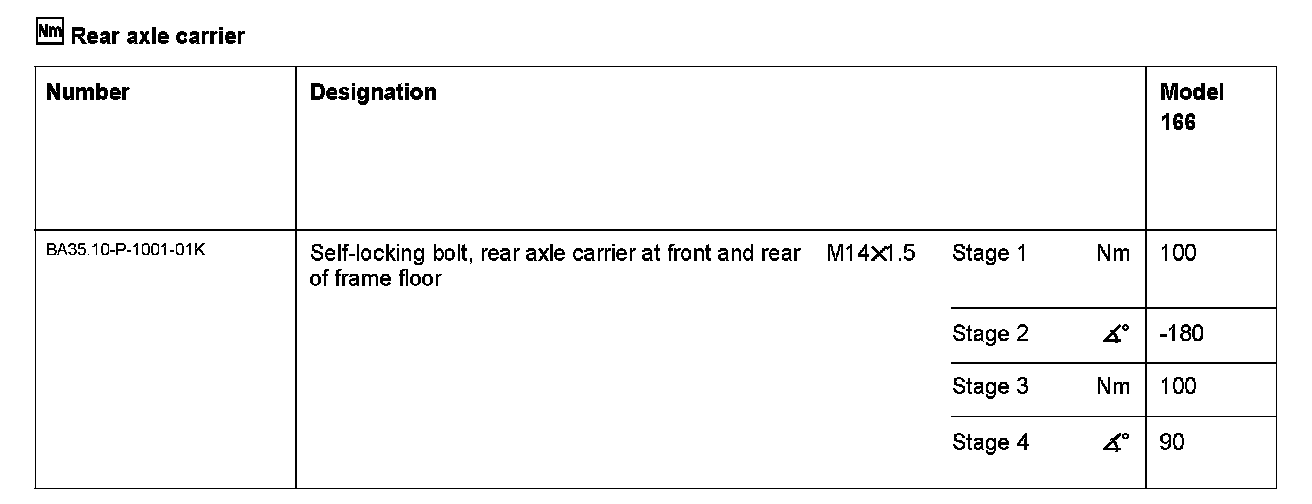

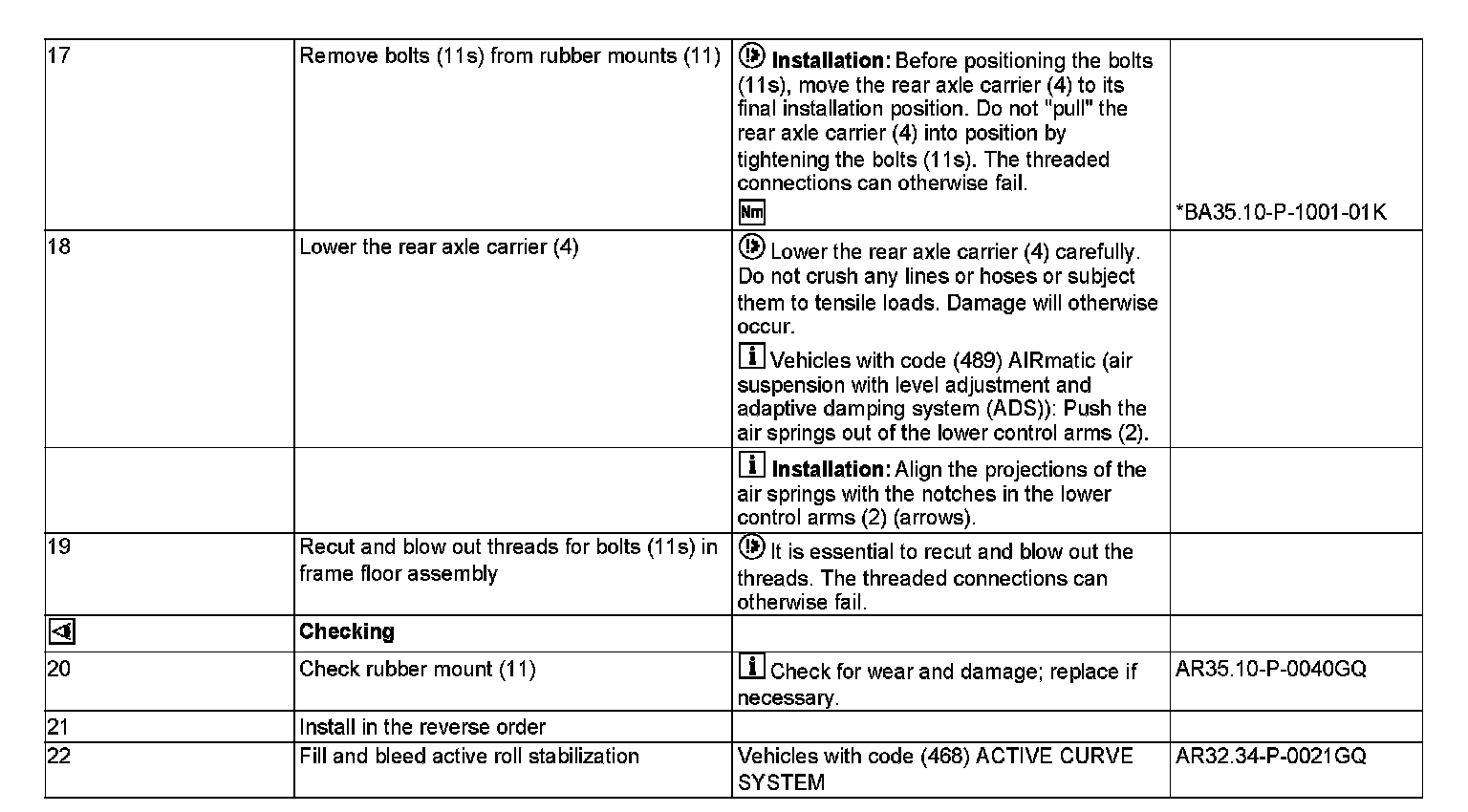

4 Rear axle carrier
10 Cable
11 Rubber bushing
11s Screw

B22/7 Left rear level sensor
B22/10 Right rear level sensor





Shown on model 166.057

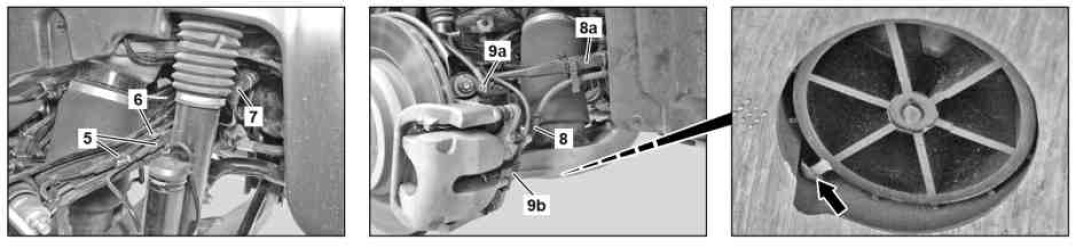

5 Electrical connector
6 Bracket
7 Electrical connector
8 Brake hose
8a Bracket
9a, 9b Electrical feed line























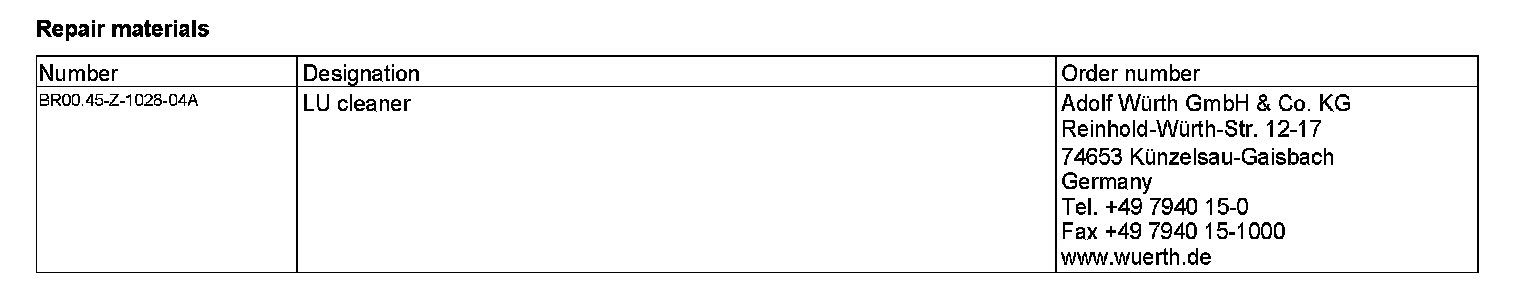

221 589 01 33 00
Detaching tool





230 589 01 33 00
Detaching tool





129 589 00 91 00

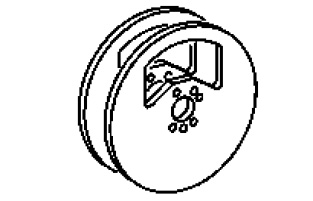

Set of stop plugs





220 589 01 31 00
Guard plate
