AR35.10-P-0040GQ Remove/Install Front and Rear Rubber Bushings In Rear Axle Mount

AR35.10-P-0040GQ Remove/Install Front And Rear Rubber Bushings In Rear Axle Mount
MODEL 166

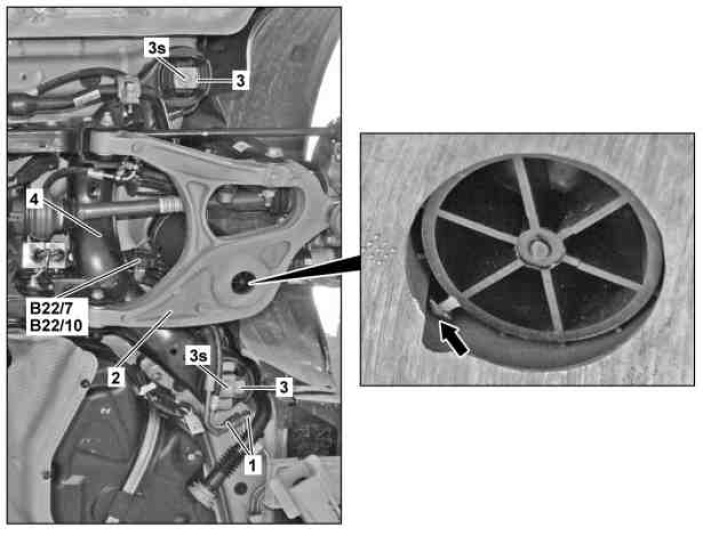

Shows model 166.057

1 Cable
2 Lower transverse control arm
3 Rubber bushing
3s Screw
4 Rear axle carrier
10 Shock absorber

B22/7 Left rear level sensor
B22/10 Right rear level sensor




















164 589 01 43 00
Extraction and insertion tool





652 589 00 33 21
Hand pump





652 589 00 33 22
Hollow cylinder





652 589 00 33 23
Hydraulic hose (complete)





652 589 00 33 11
Worm shaft





001 589 01 63 00
Retaining belt





221 589 01 33 00
Detaching tool





230 589 01 33 00
Detaching tool





129 589 00 91 00
Set of stop plugs
