Rear Fender Liner: Service and Repair

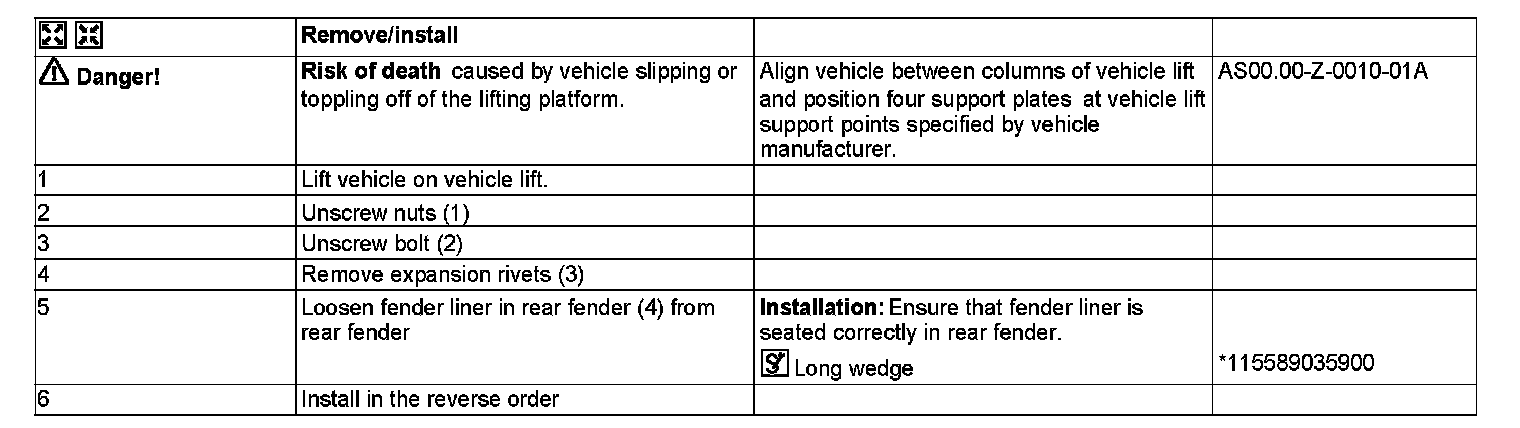

AR88.10-P-1400GQ Remove/Install Fender Liner in Rear Fender
MODEL 166.0

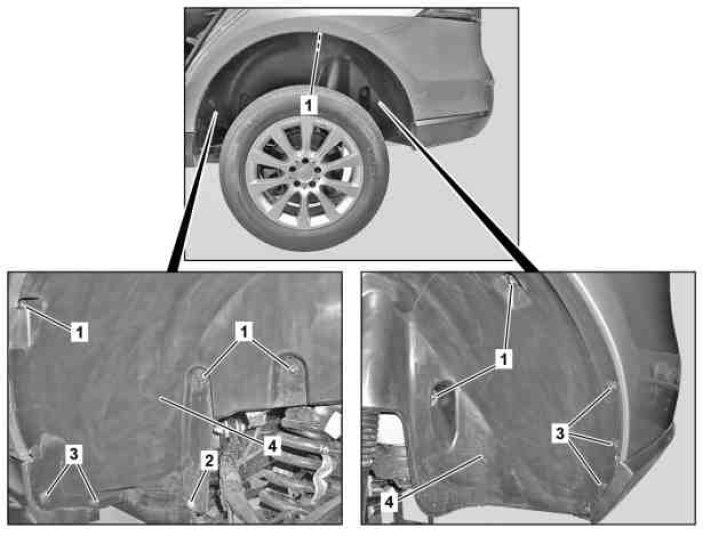

1 Nuts
2 Screw
3 Expanding rivets
4 Fender liner in rear fender








115 589 03 59 00
Long wedge
