AR88.10-P-1300GQ Remove/Install Fender Liner in Front Fender




AR88.10-P-1300GQ Remove/Install Fender Liner in Front Fender

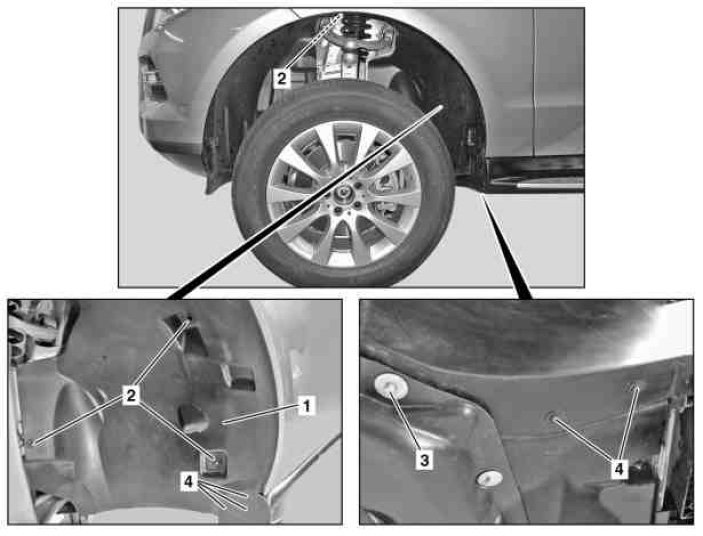

MODEL 166.0





1 Fender liner in front fender
2 Nuts
3 Screw
4 Expanding rivets
