Trunk / Liftgate Shock / Support: Service and Repair
AR72.20-P-3600GZ Remove/Install Gas-operated Strut To Rear-end Door

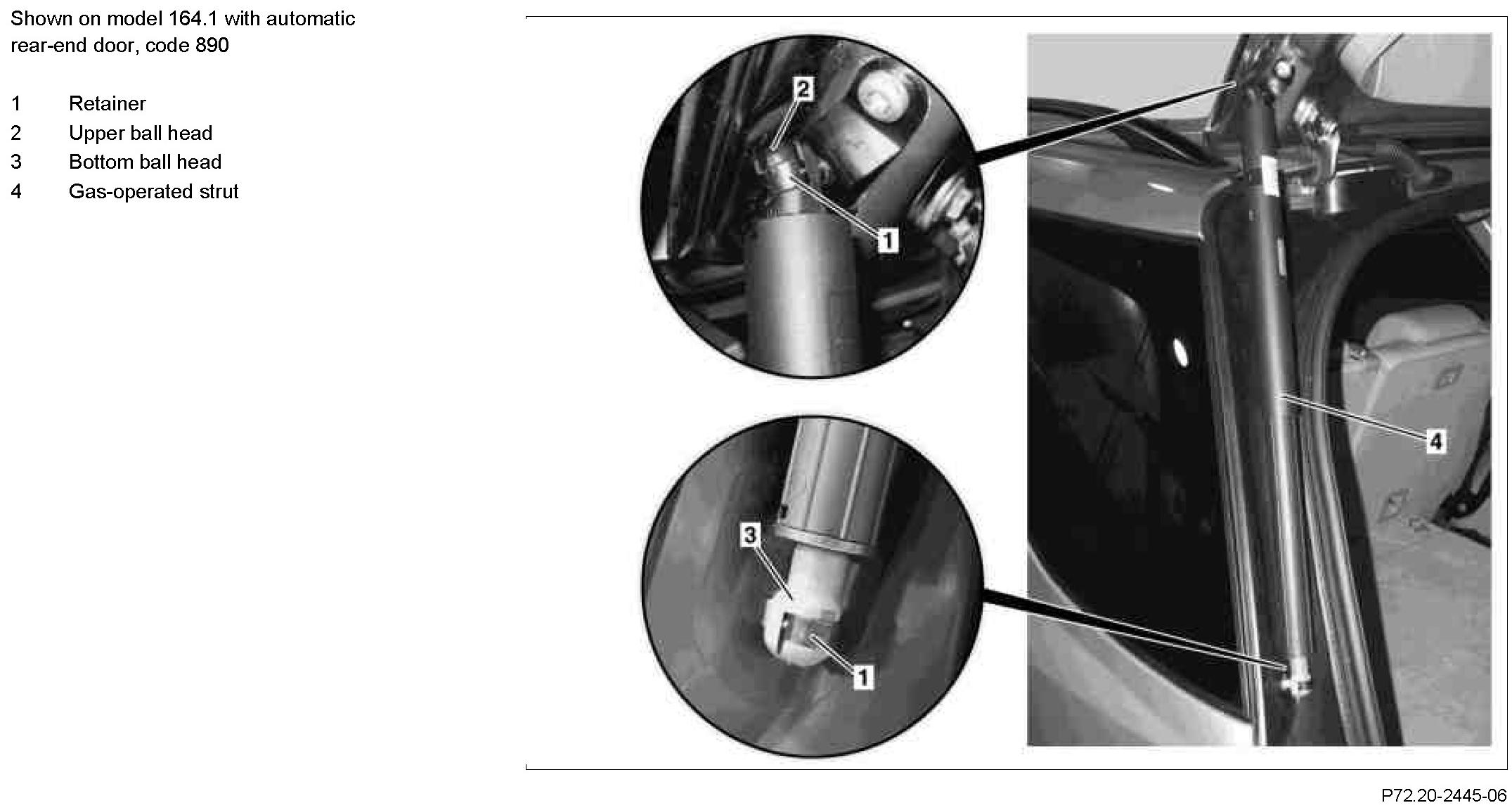

Component Identification:

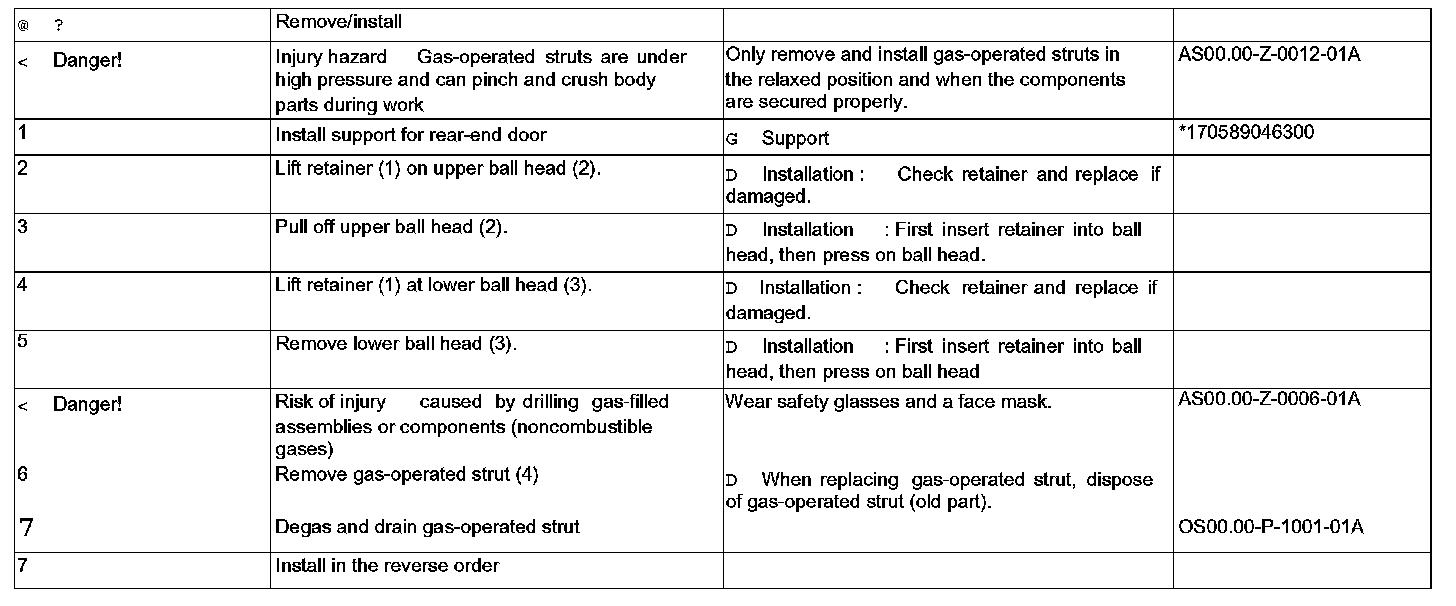

Steps 1 - 7:

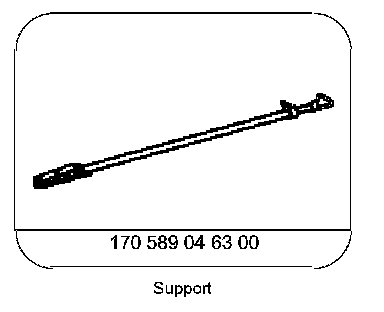

Special Tools:
