Trunk / Liftgate Interior Trim Panel: Service and Repair

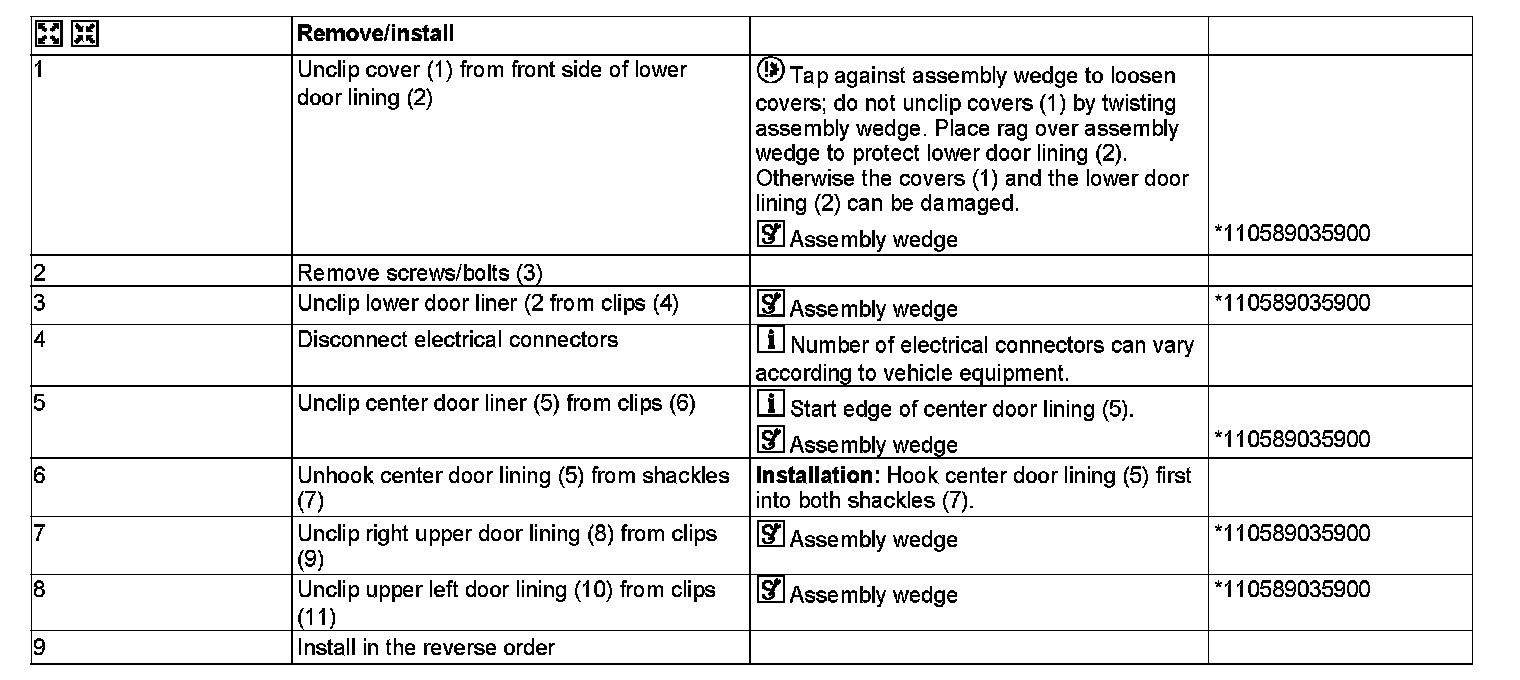

AR72.20-P-3520GQ Remove/Install Liftgate Liner
MODEL 166.0

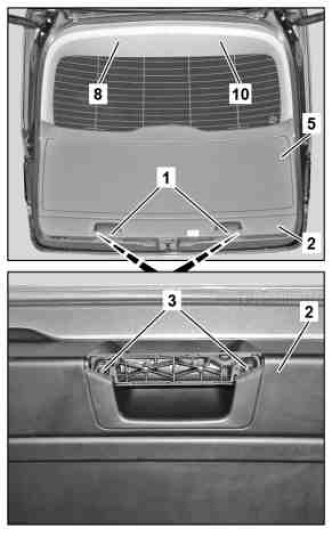

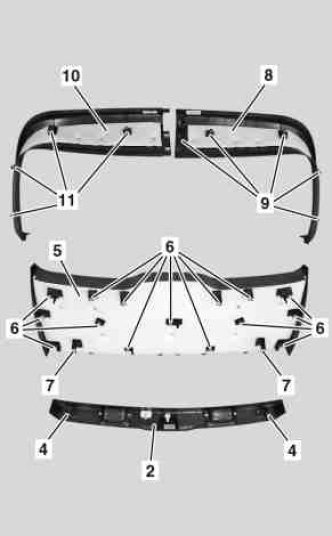

1 Covers
2 Lower door lining
3 Bolts
4 Clips
5 Center door lining
6 Clips
7 Lugs
8 Right upper door lining
9 Clips
10 Left upper door lining
11 Clips








110 589 03 59 00
Mounting wedge
