Body - Door Lock Does Not Lock

Door lock does not lock

Topic number LI72.00-P-053606

Version 1

Design group 72.00 General

Date 04-19-2012

Validity W166

Reason for change

Complaint:
Door lock does not lock.

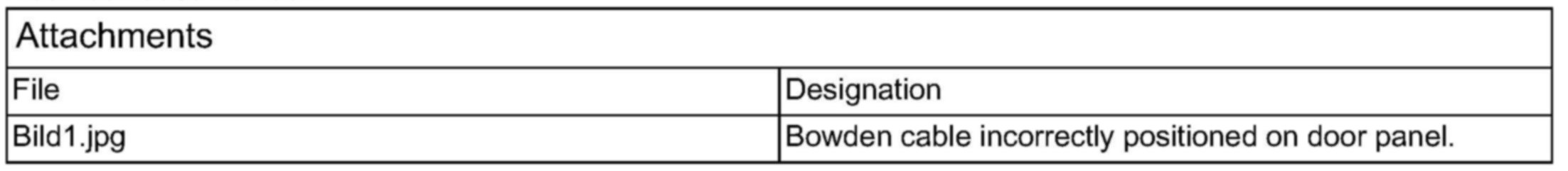

Attachments

Cause:

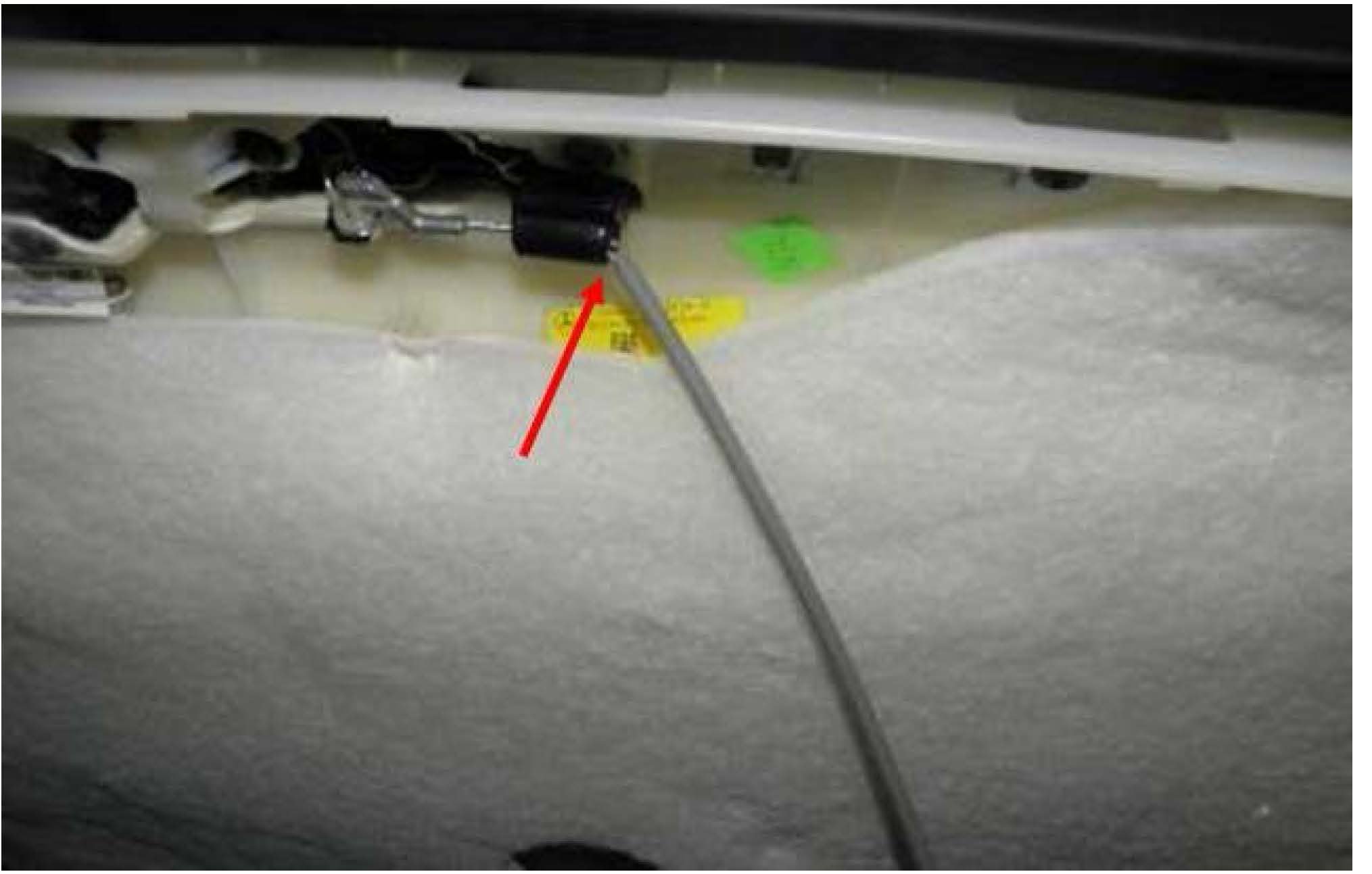

The Bowden cable is not engaged correctly in the guide on the door panel (Figure 1).

Remedy:

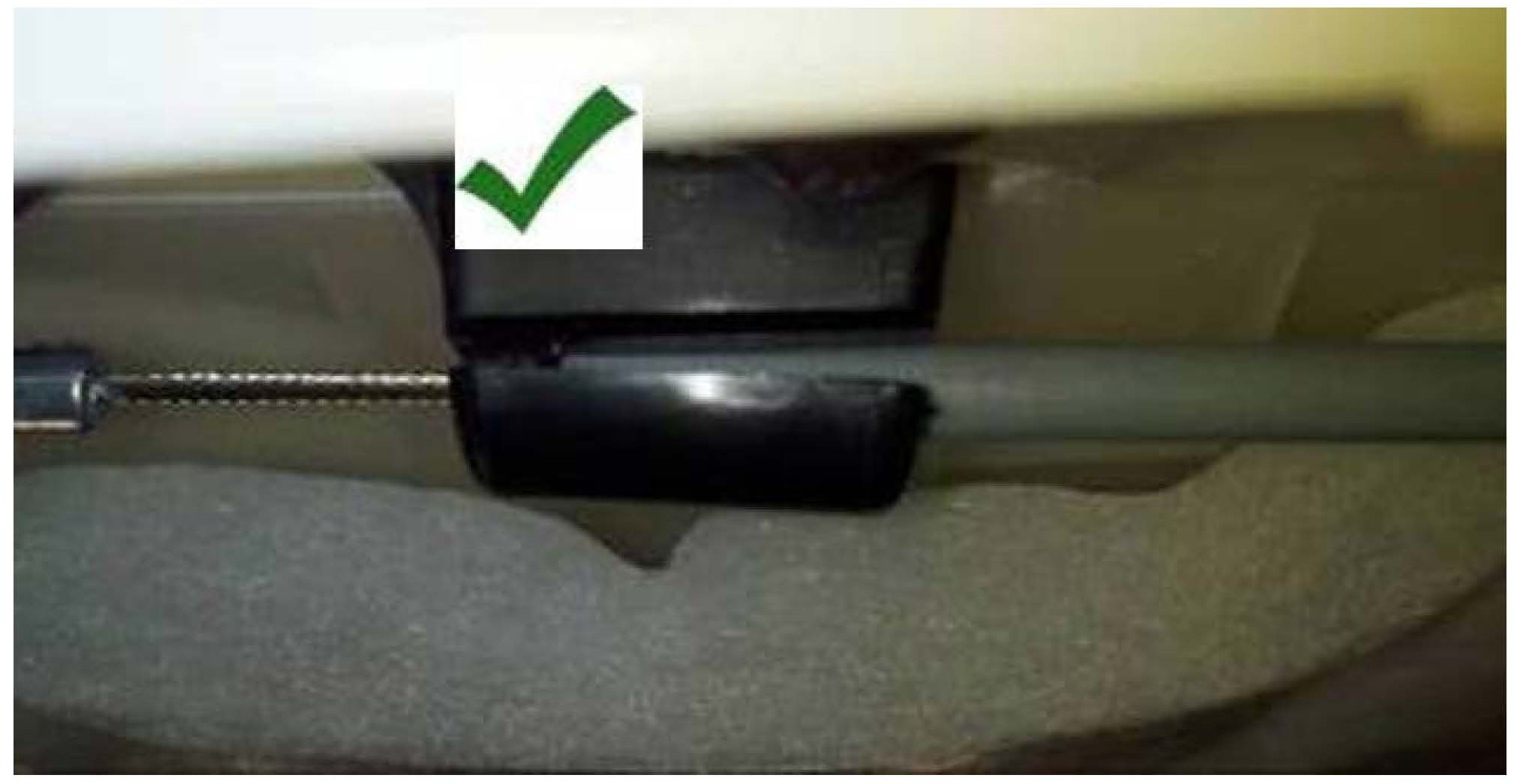

Correct position of Bowden cable in the door panel (Figure 2).

Note:

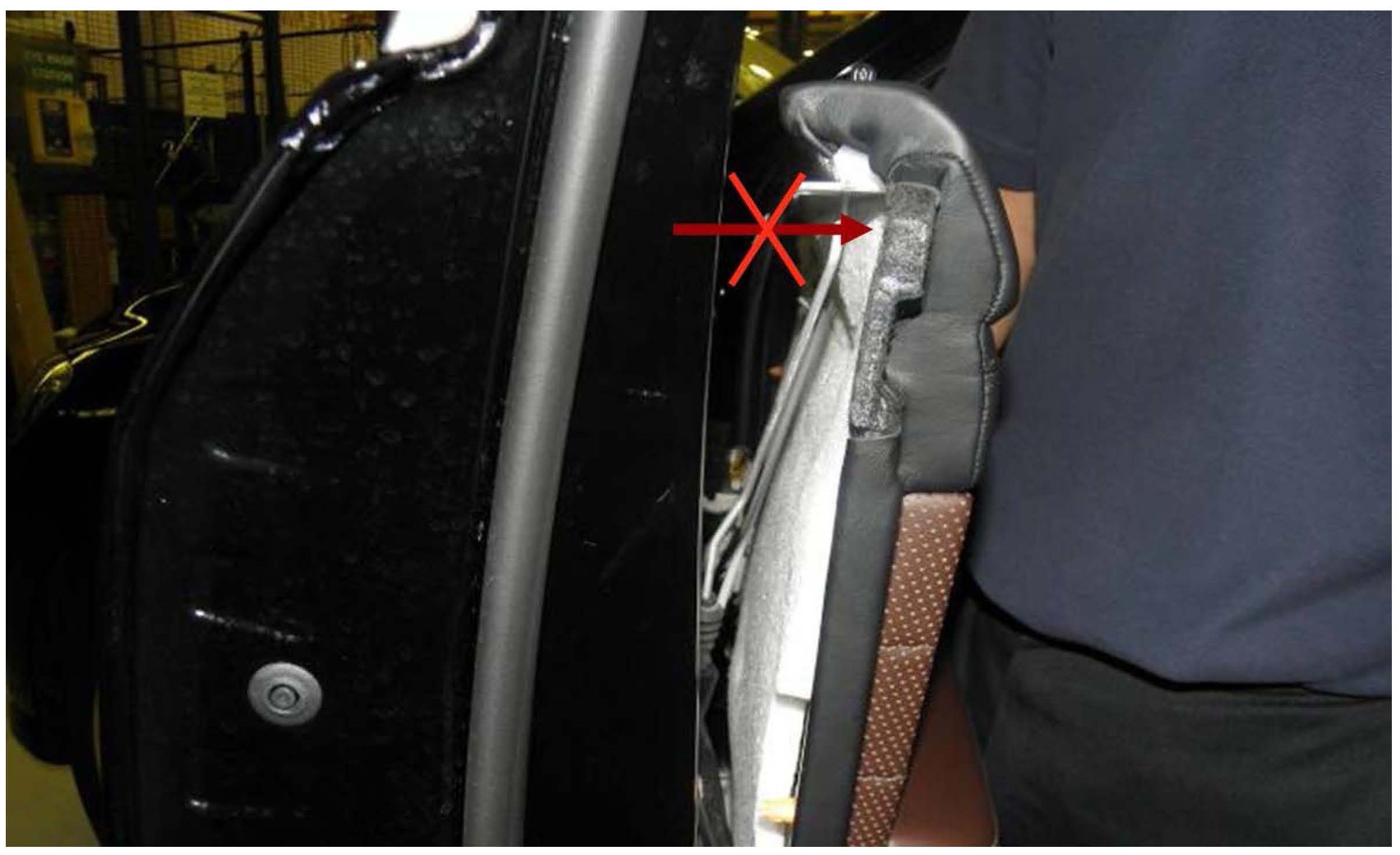

The door panel with the attached locking bar must not be pulled too far away from the door shell (Figure 3), otherwise the locking bar can become detached in the lock.

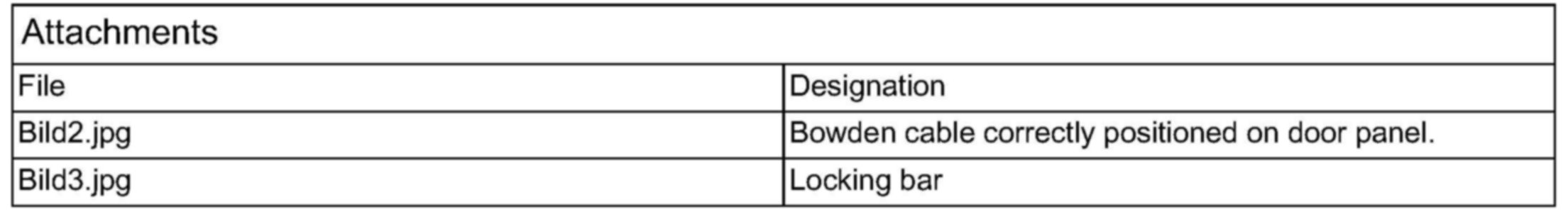

Attachments





Symptoms

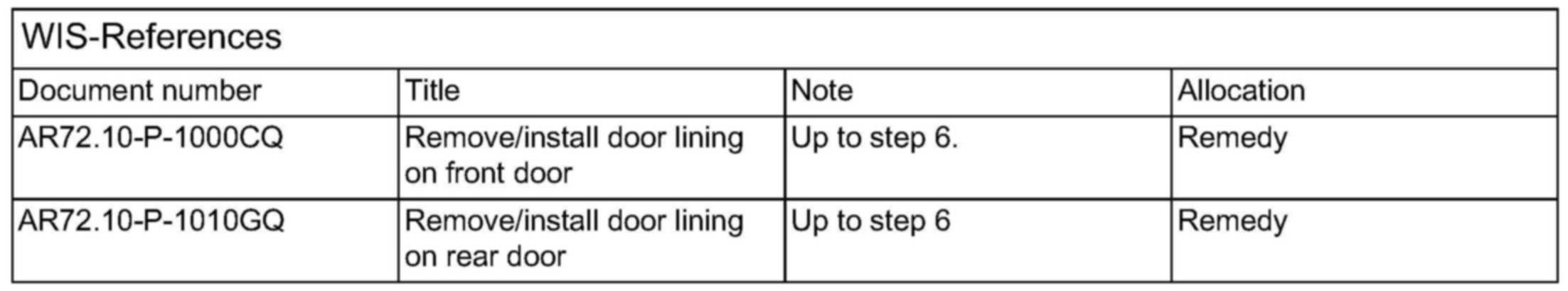

WIS-References





Figure 1





Figure 2





Figure 3
