Hood: Service and Repair

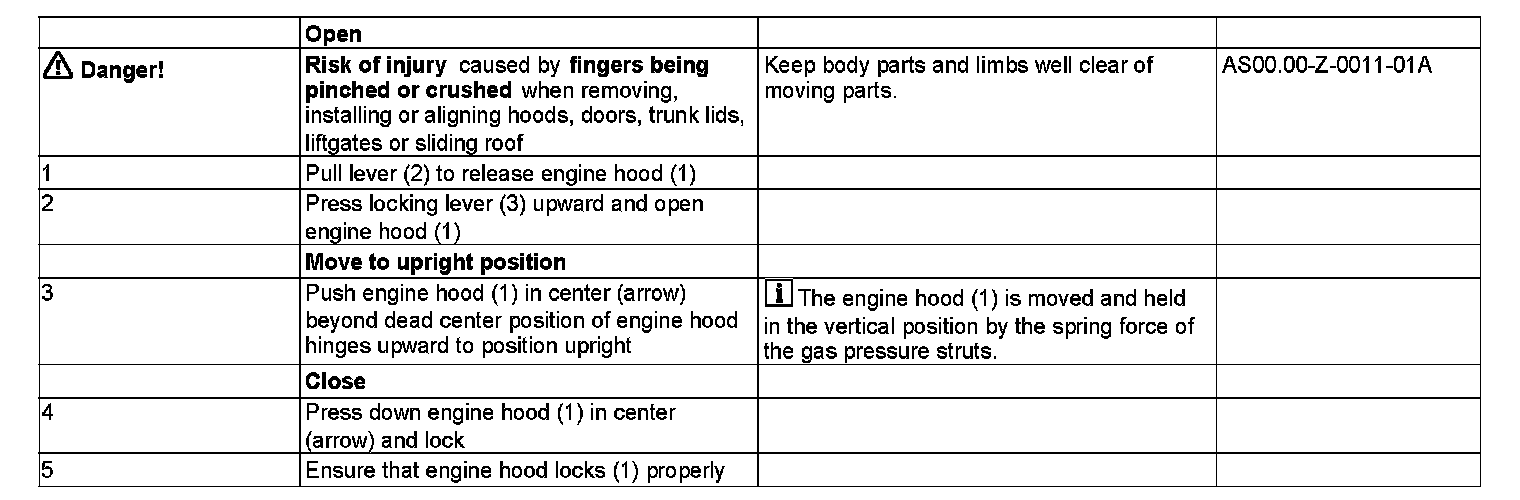

AR88.40-P-1000GQ Opening Engine Hood, Moving to Upright Position and Closing
MODEL 166.0

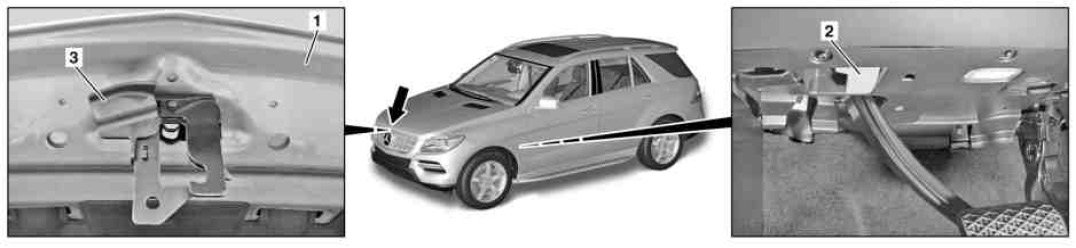

1 Engine hood
2 Lever
3 Locking lever
