Hood Hinge: Service and Repair
AR88.40-P-3060GZ Remove/Install
Hood Hinge

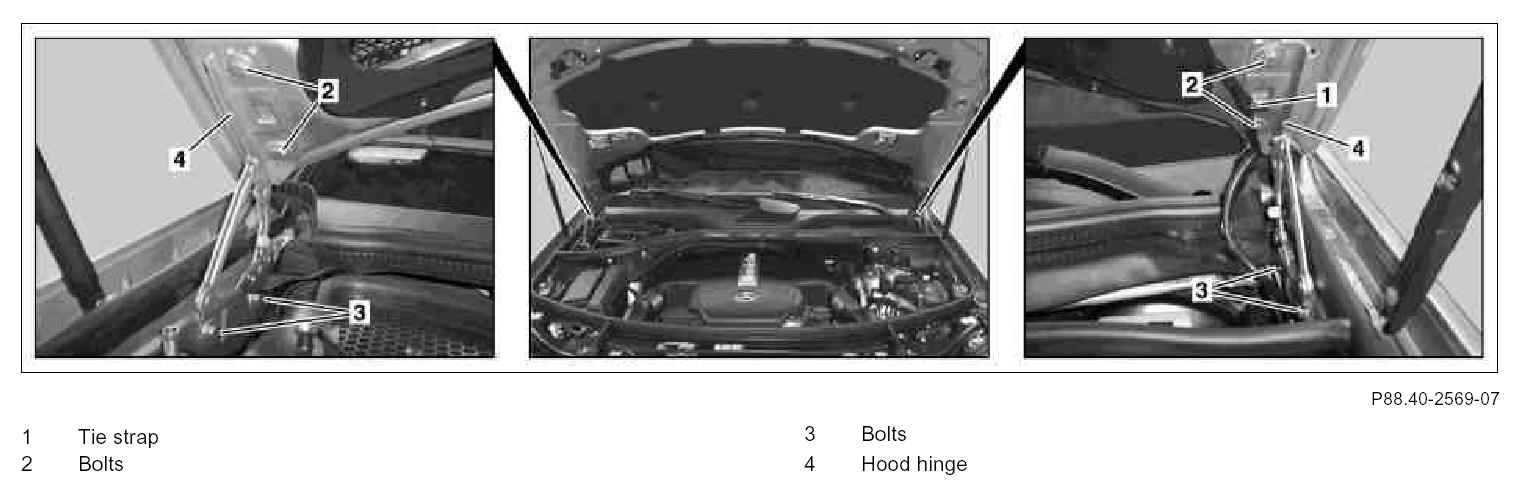

Component Identification:

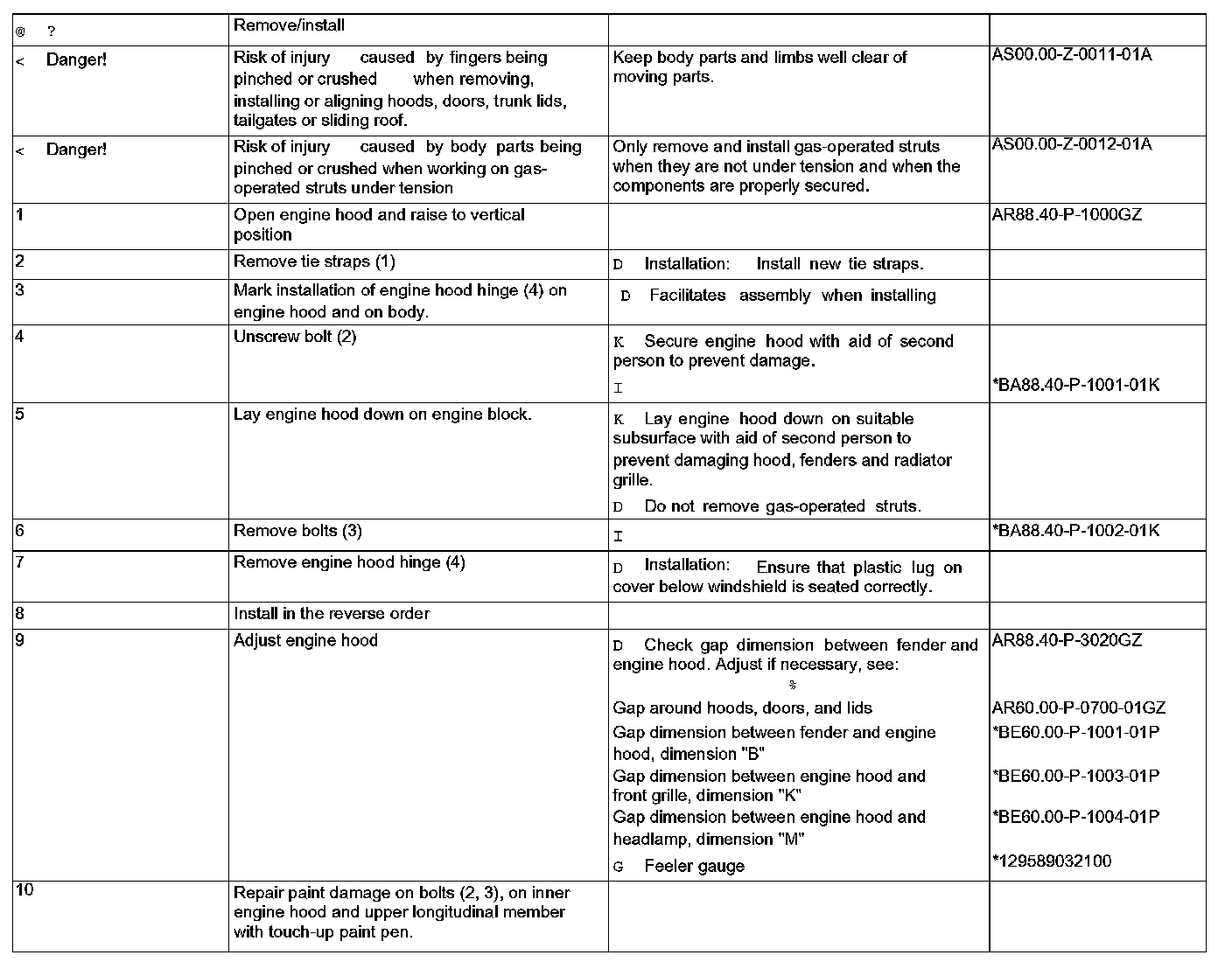

Steps 1 - 10:

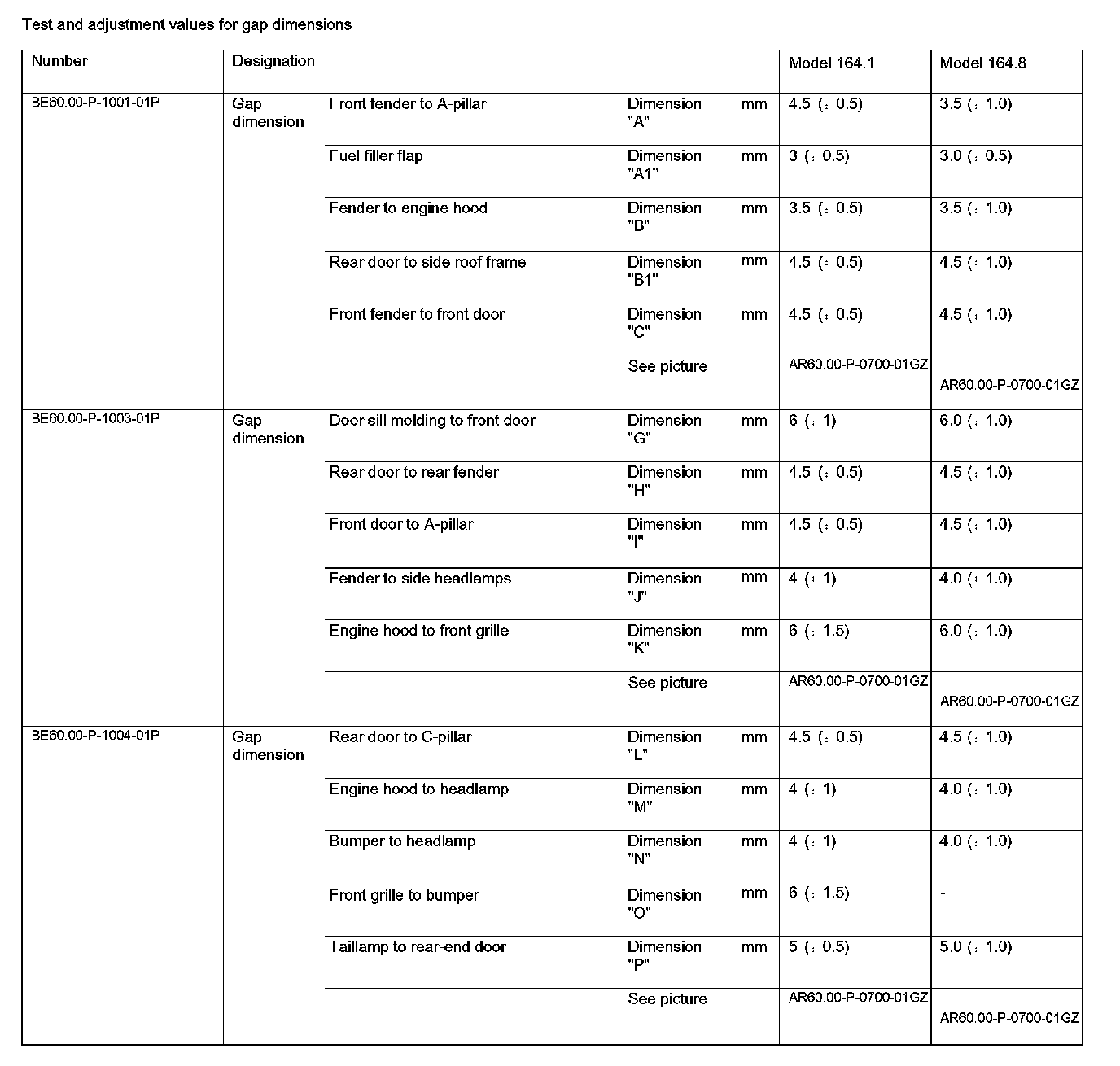

Test And Adjustment Values For Gap Dimensions:

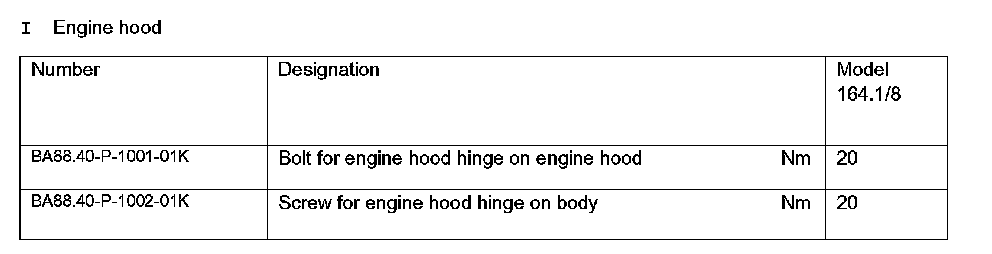

Engine Hood:

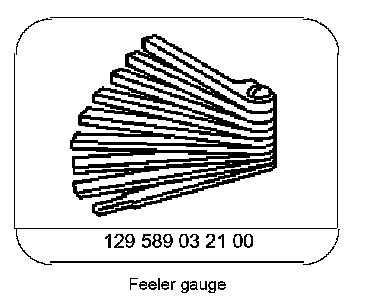

Special Tools:
