Mercedes Benz Truck
>>
2012
>>
ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Fuel Door
>>
Service and Repair
>>
AR88.60-P-6023GZ Remove/Install Tank Flap
AR88.60-P-6023GZ Remove/Install Tank Flap
AR88.60-P-6023GZ Remove/Install Tank Flap

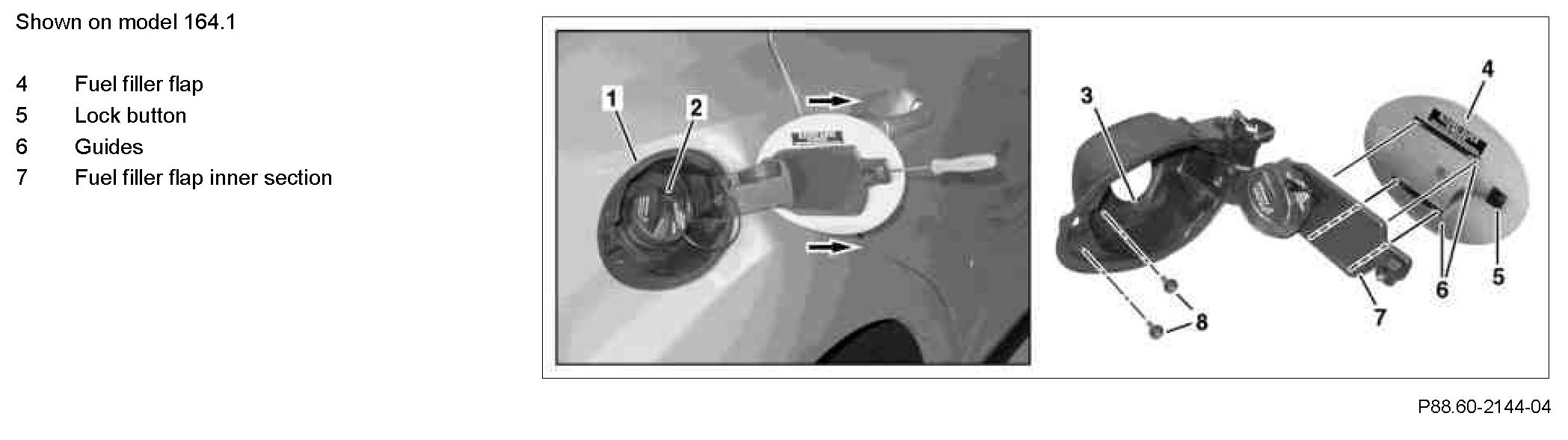

Component Identification:

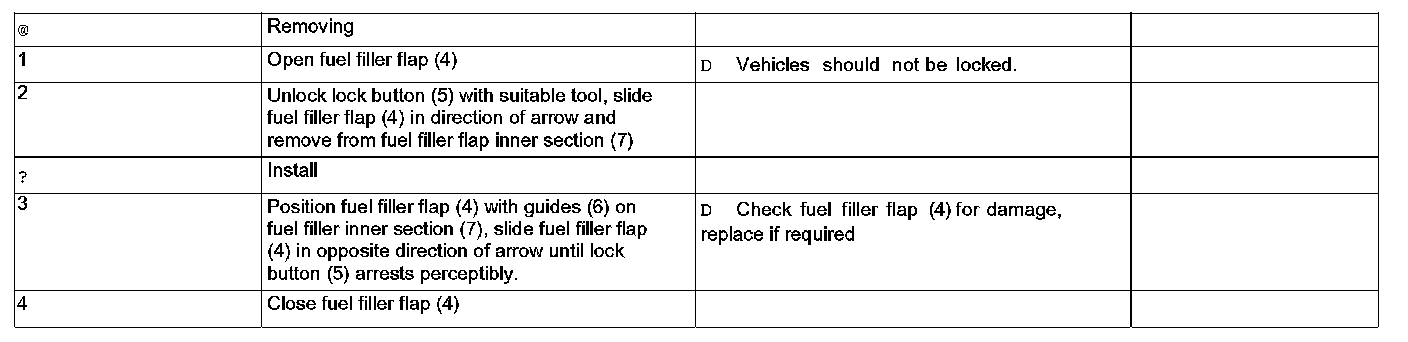

Steps 1 - 4:
