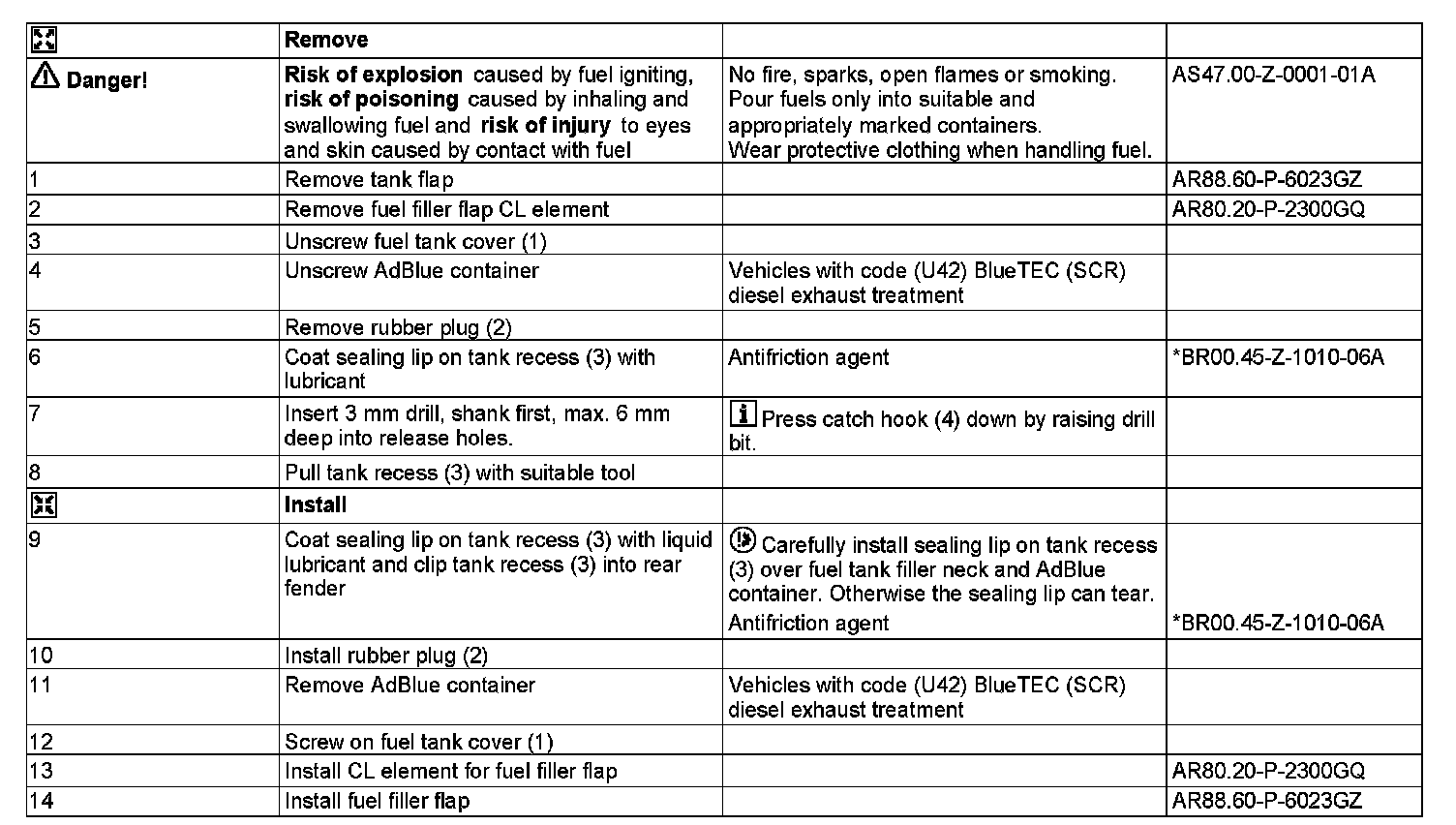

AR88.60-P-2000GQ Remove/Install Tank Recess




AR88.60-P-2000GQ Remove/Install Tank Recess
MODEL 166.0

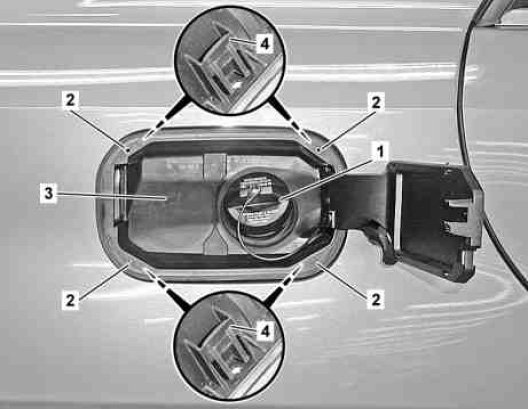

1 Fuel tank cover
2 Rubber plug
3 Tank recess
4 Catch hook
