Home >> Mercedes Benz Truck >> 2012 >> ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Rear Door >> Specifications >> BA72.20-P-1000-02J Rear-End Door

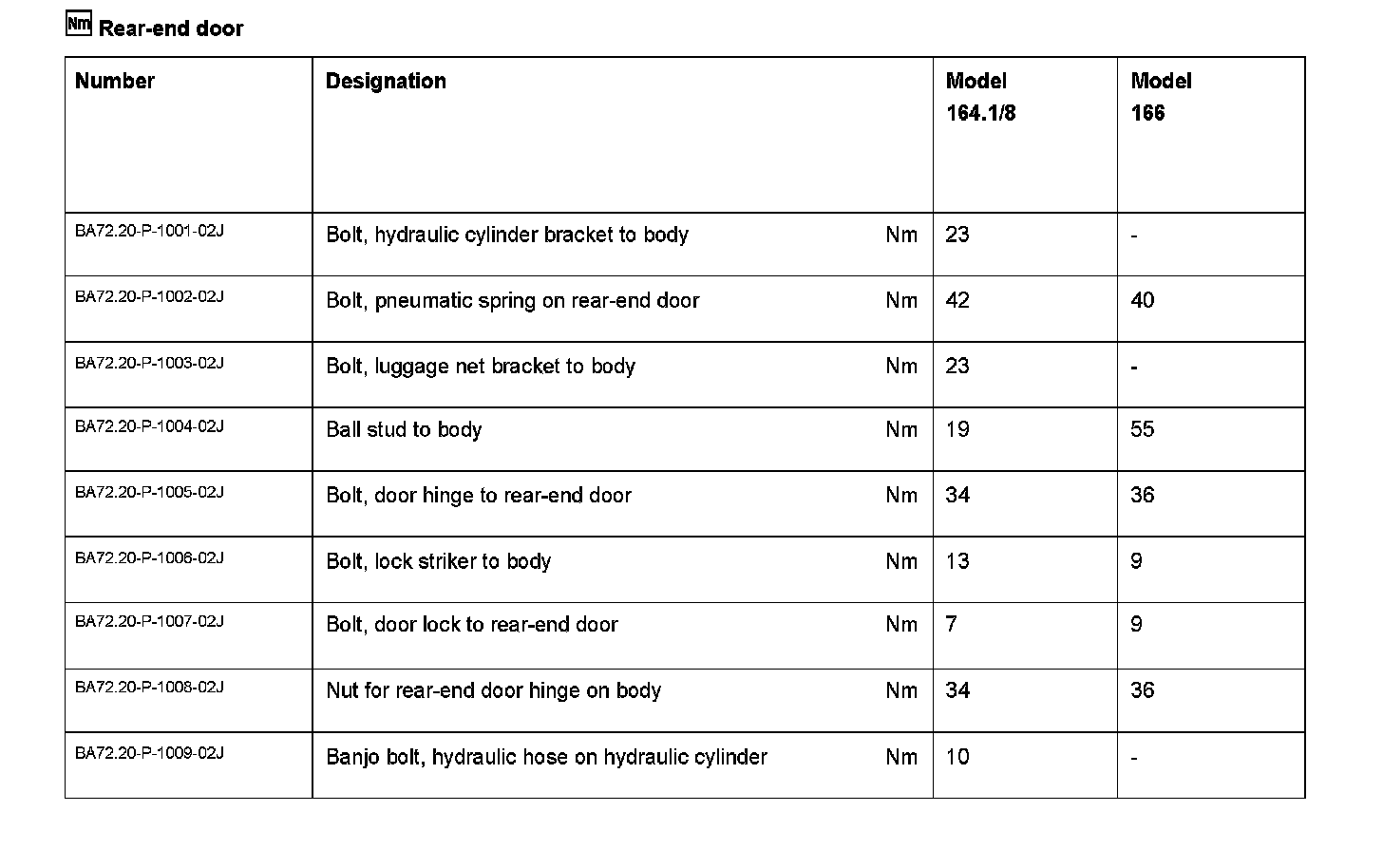

BA72.20-P-1000-02J Rear-End Door



BA72.20-P-1000-02J Rear-end Door
Model 164, 166
