Rear Door Weatherstrip: Service and Repair



AR72.12-P-1015GZ Remove/Install Door Sealing Frame On Rear Door

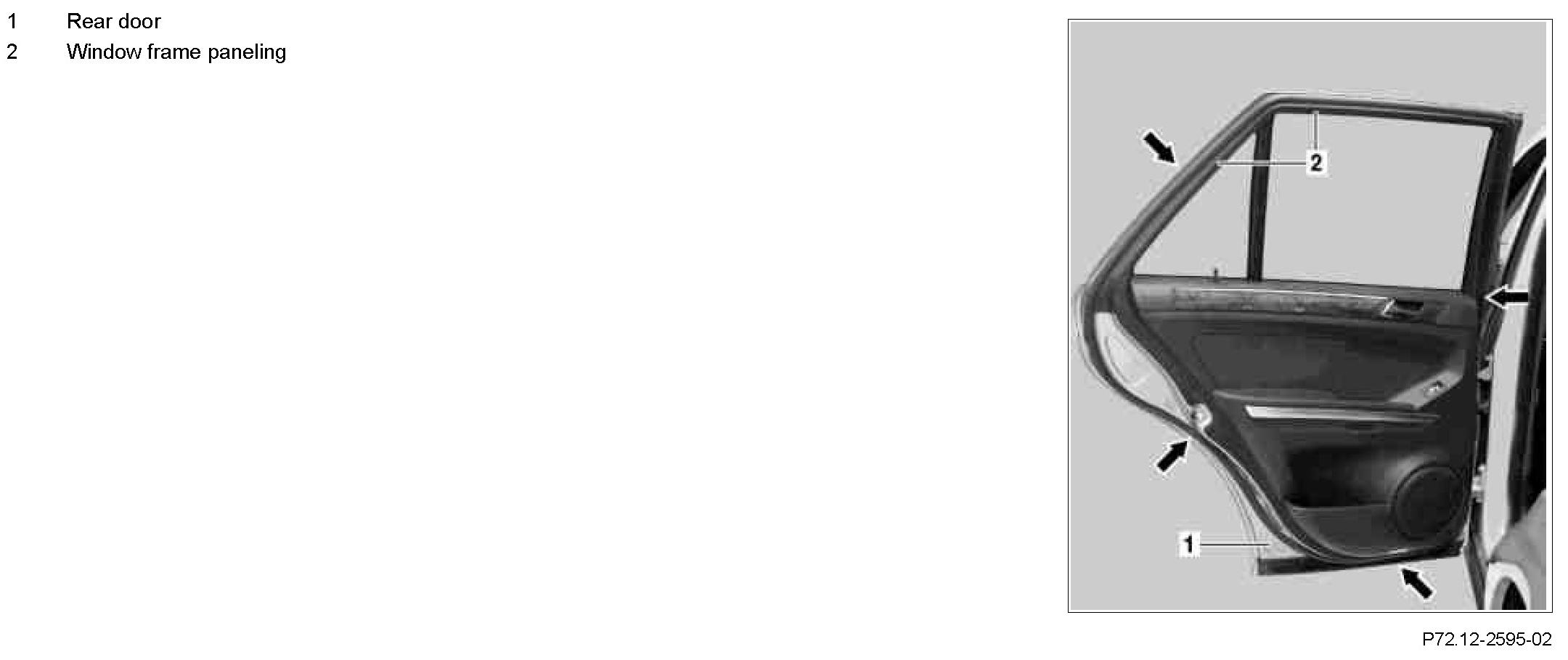

Component Identification:

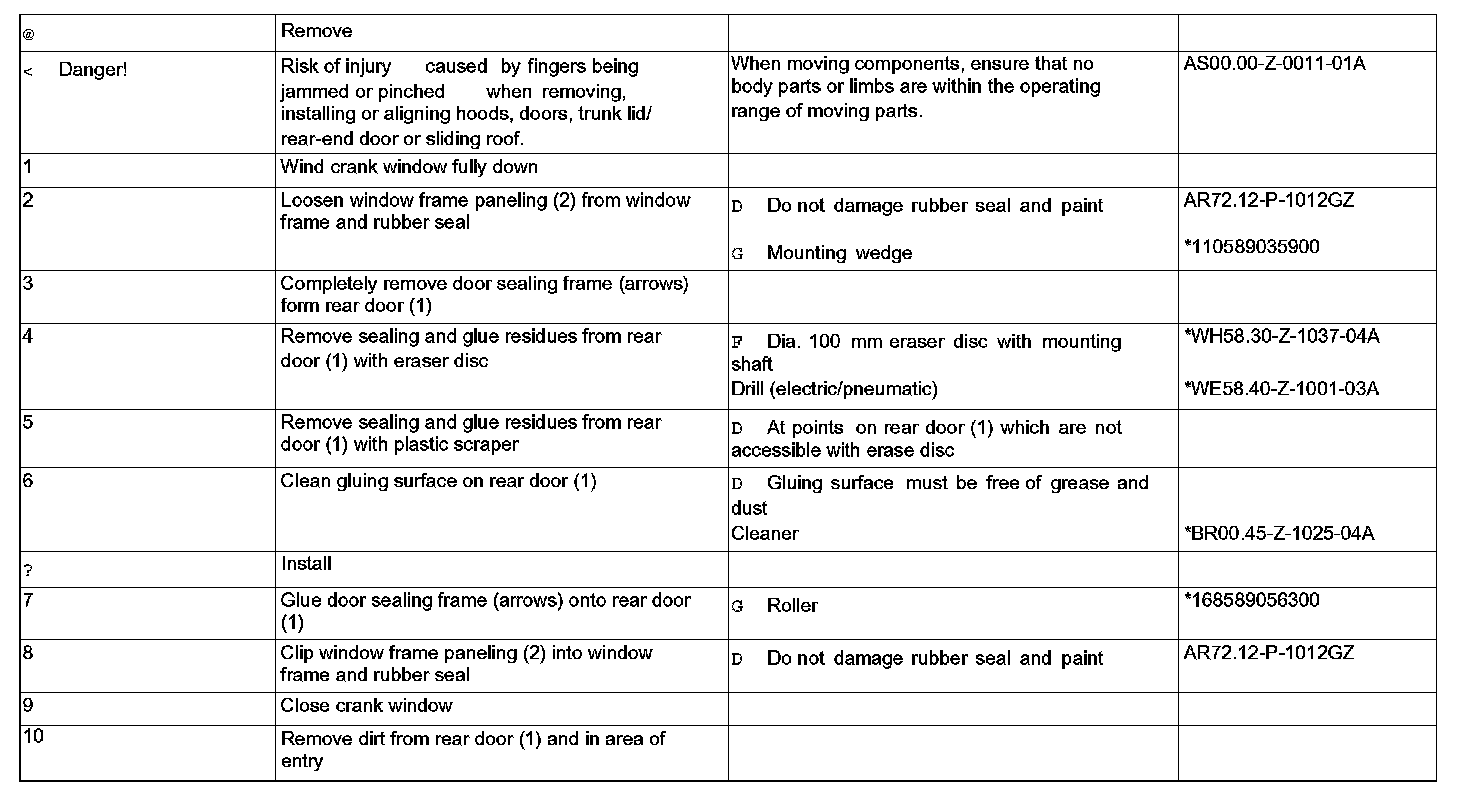

Steps 1 - 10:

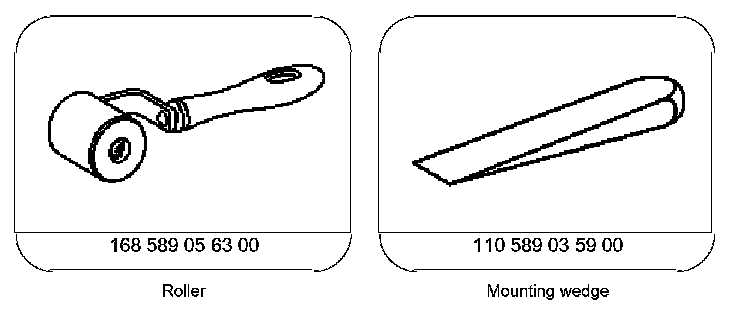

Special Tools:

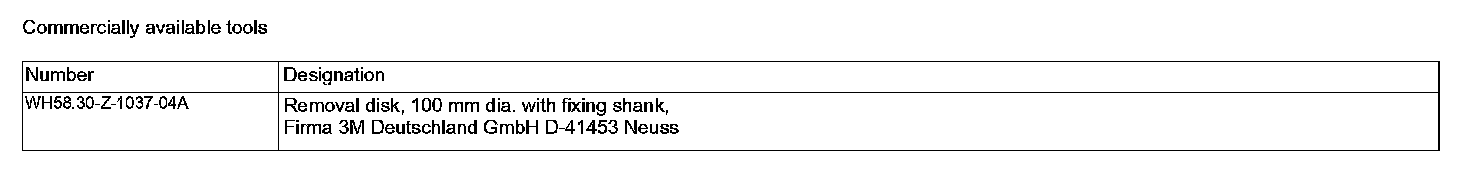

Commercially Available Tools:




Workshop Equipment:

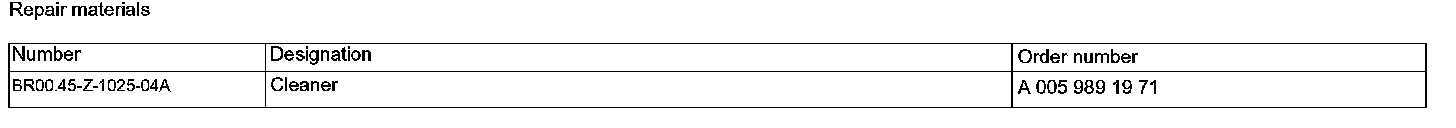

Repair Materials:
