Rear Door: Adjustments

AR72.12-P-0650CW Adjust Rear Door
- except CODE (Z04) Light armoring [models 212.0]

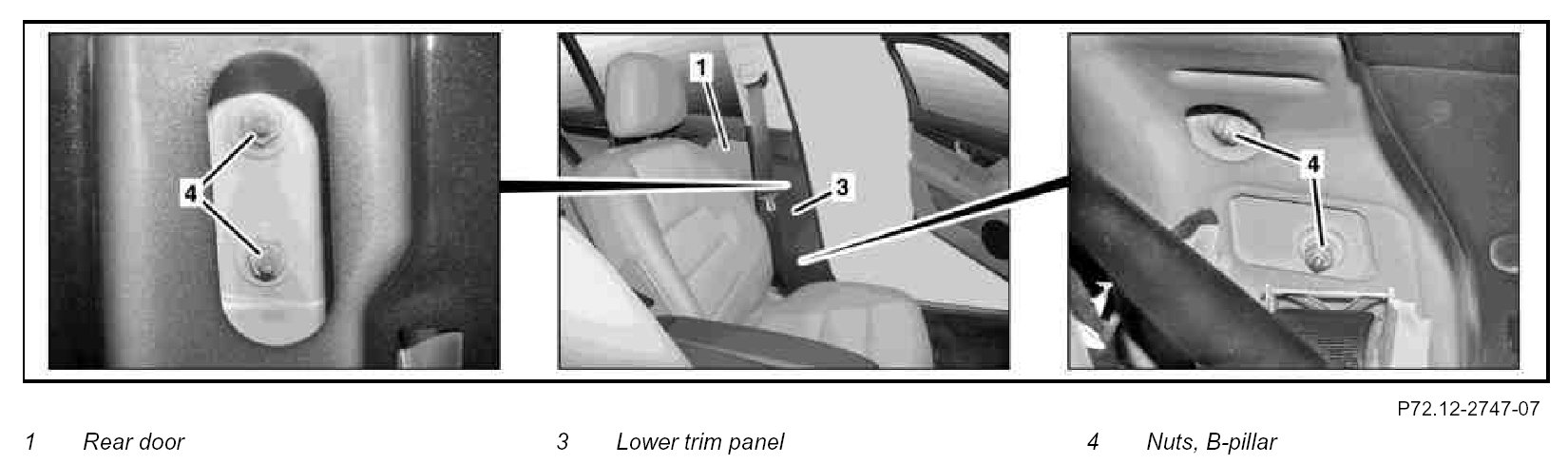

Component Identification:

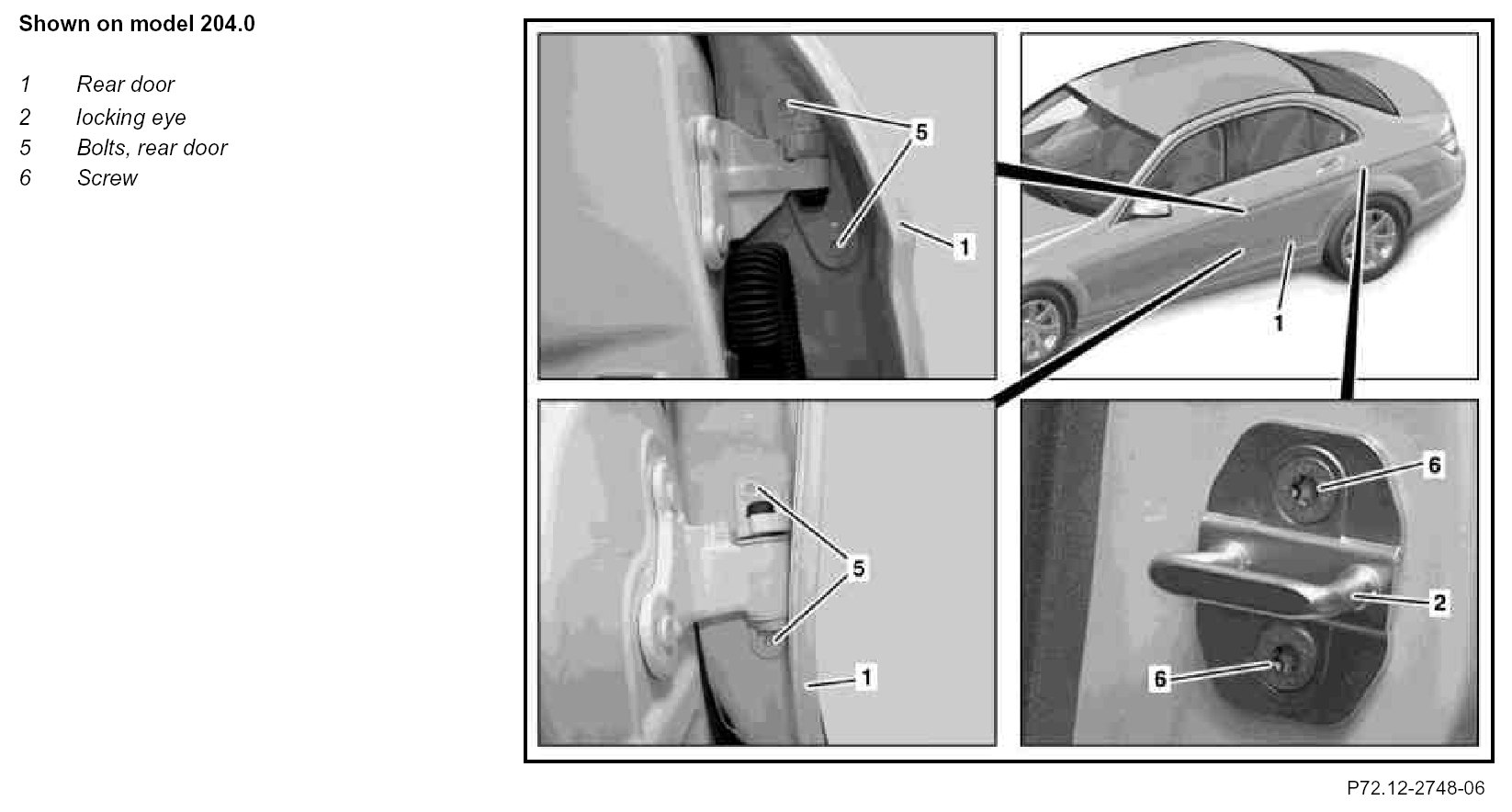

Component Identification:

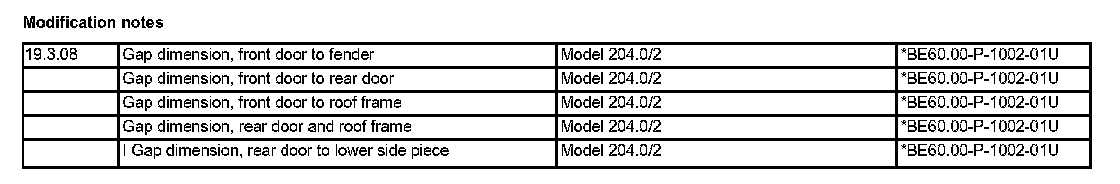

Modification Notes:

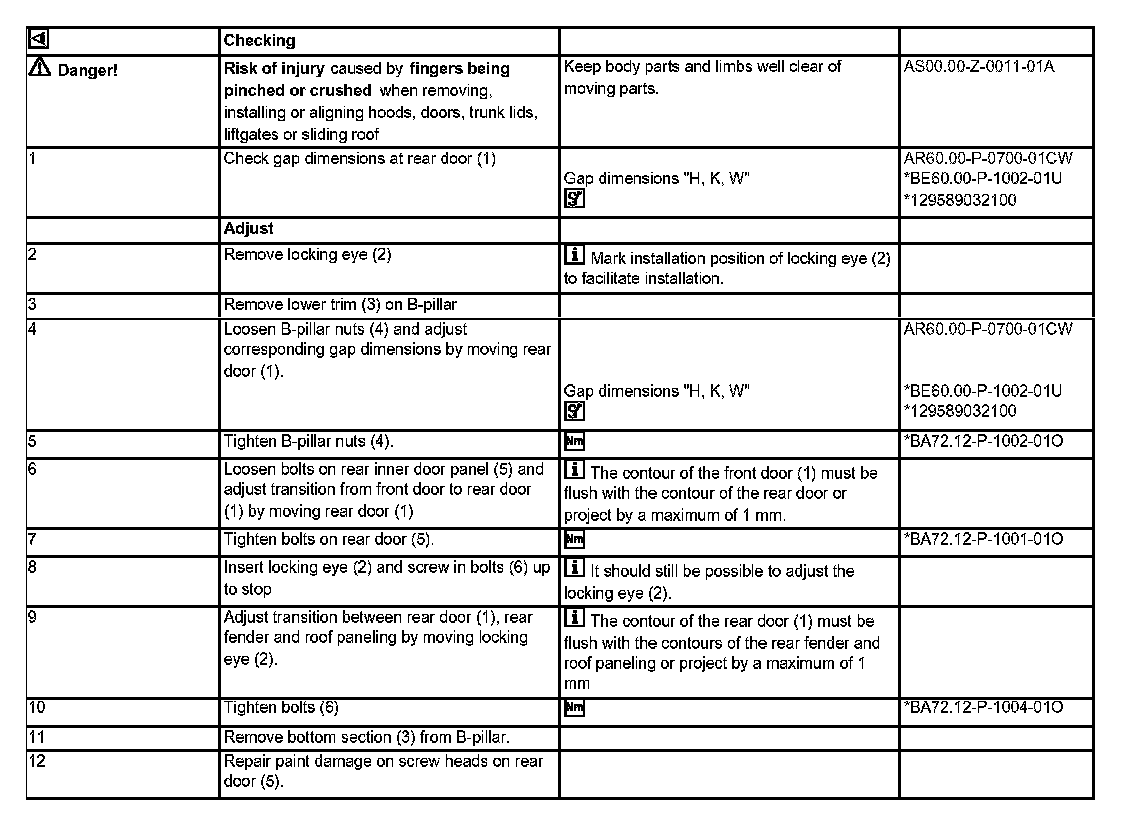

Steps 1 - 12:

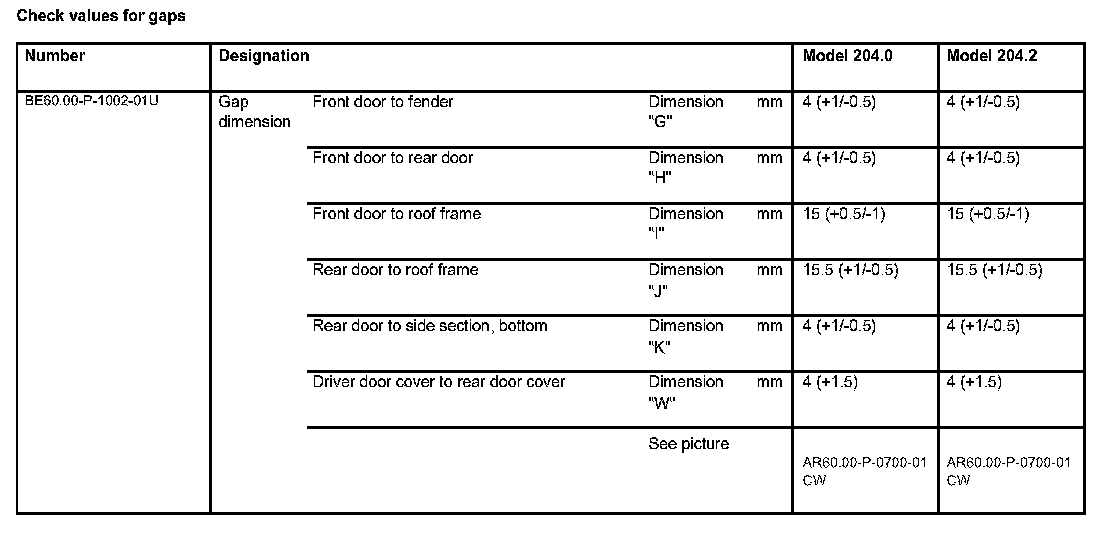

Check Values For Gaps:

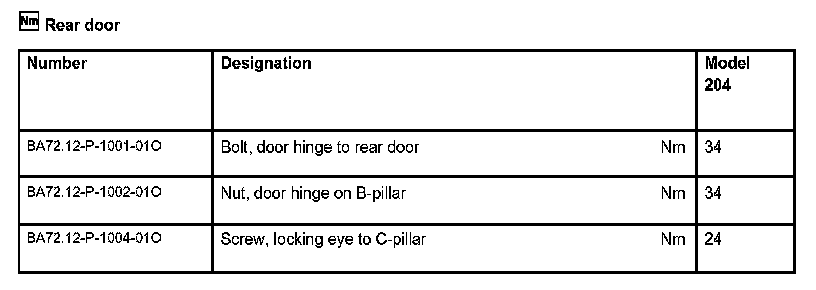

Rear Door:

Special Tools:
