FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz Truck
>>
2012
>>
ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Doors
>>
Front Door
>>
Front Door Weatherstrip
>>
Service and Repair
Front Door Weatherstrip: Service and Repair
AR72.10-P-2120GZ Remove/Install Door Sealing
Frame

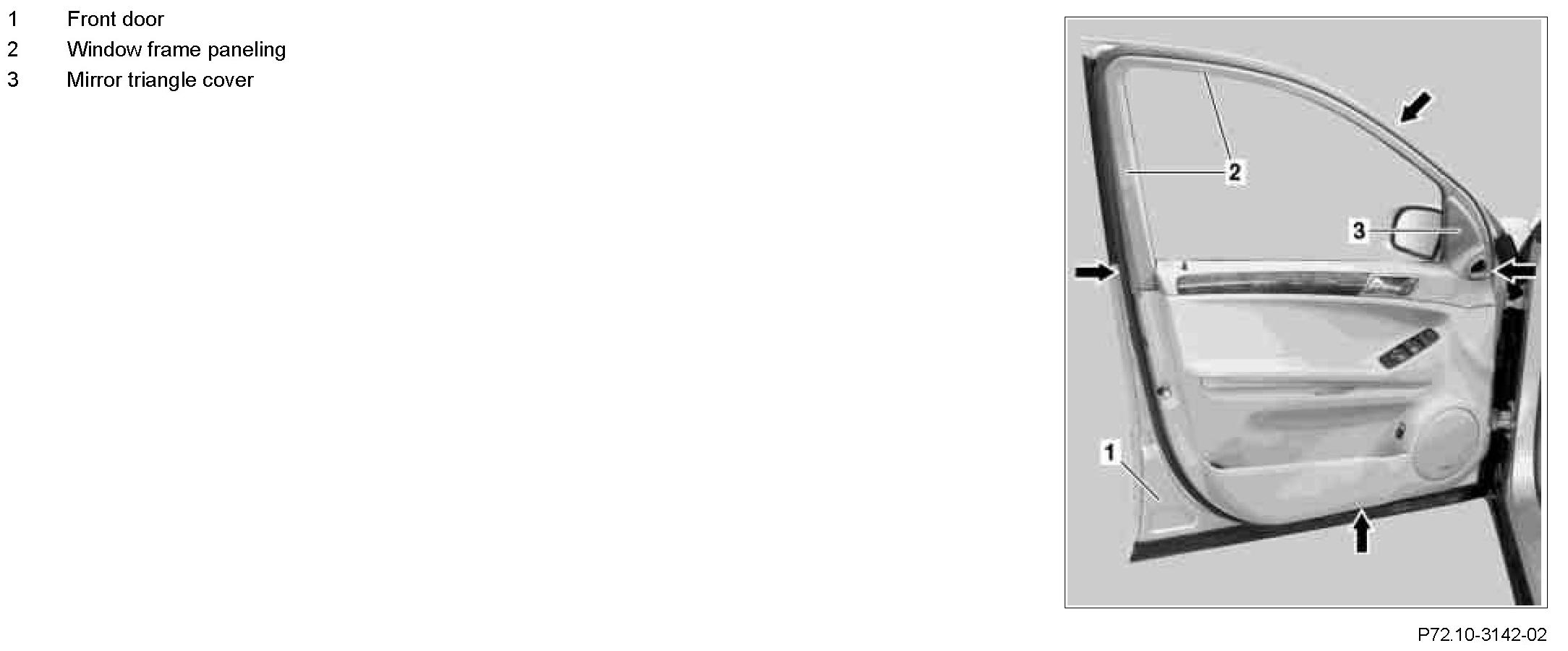

Component Identification:

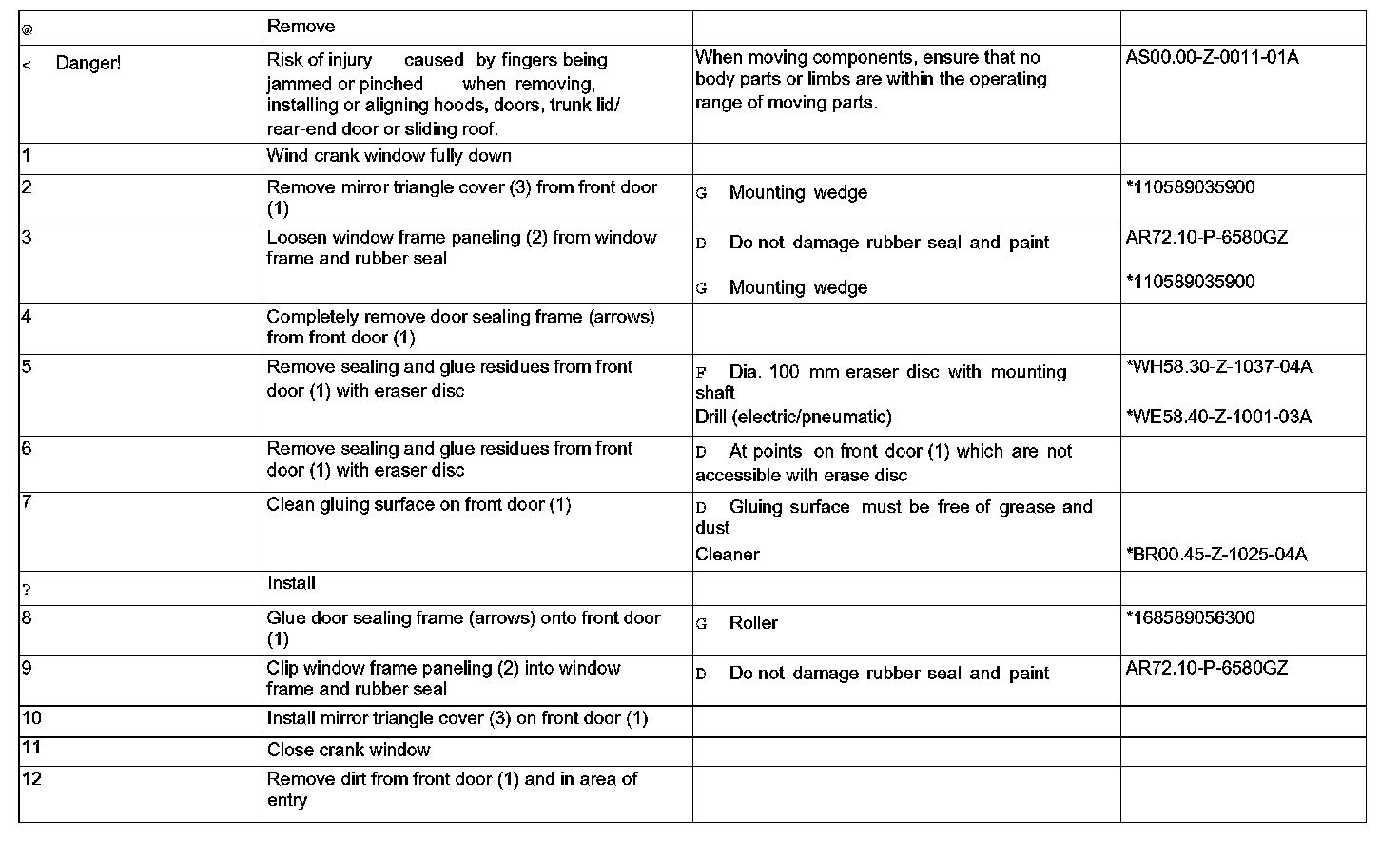

Steps 1 - 12:

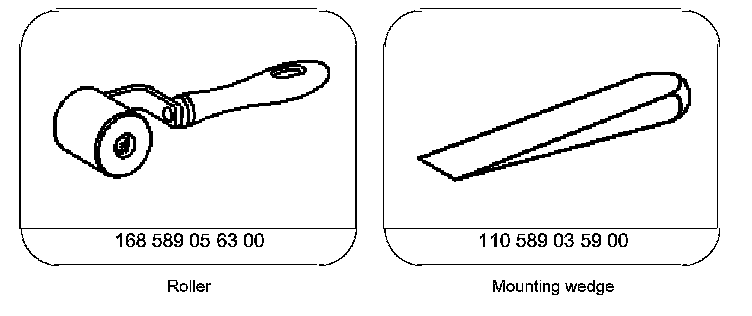

Special Tools:

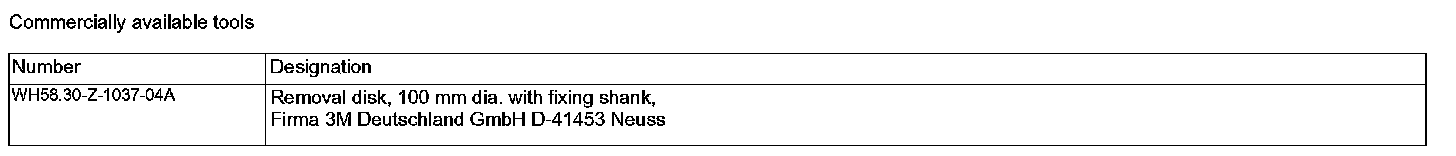

Commercially Available Tools:
Workshop Equipment:

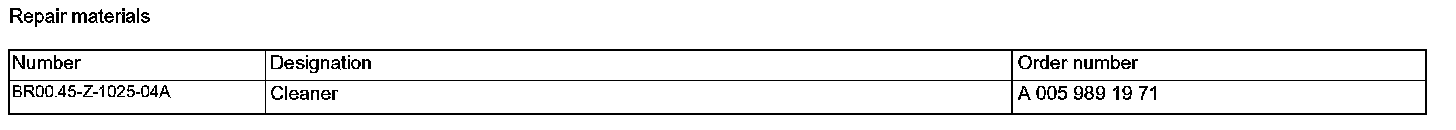

Repair Materials:
