Cowl Drain Tube: Service and Repair

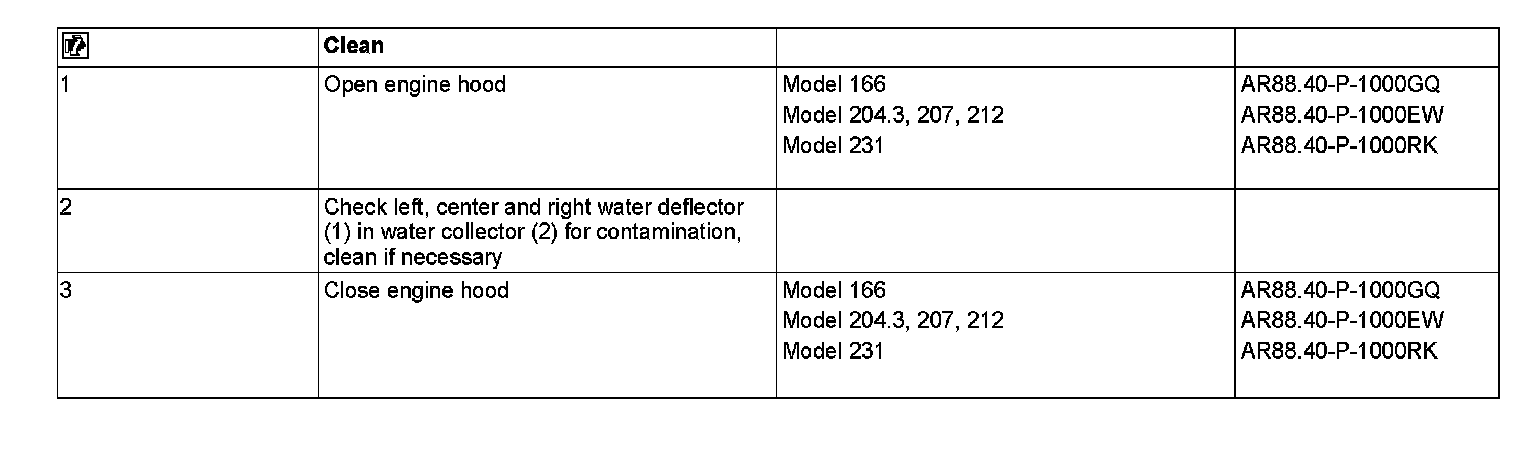

AP82.35-P-8232A Clean Water Deflector
MODEL 166, 204, 207, 212, 218, 231

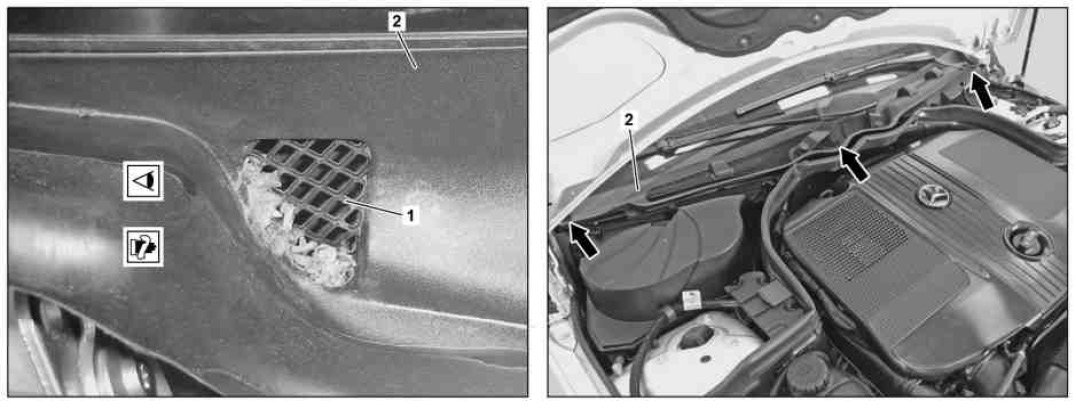

Shows model 204
1 Water deflector
2 Water collector
