Front Bumper: Service and Repair

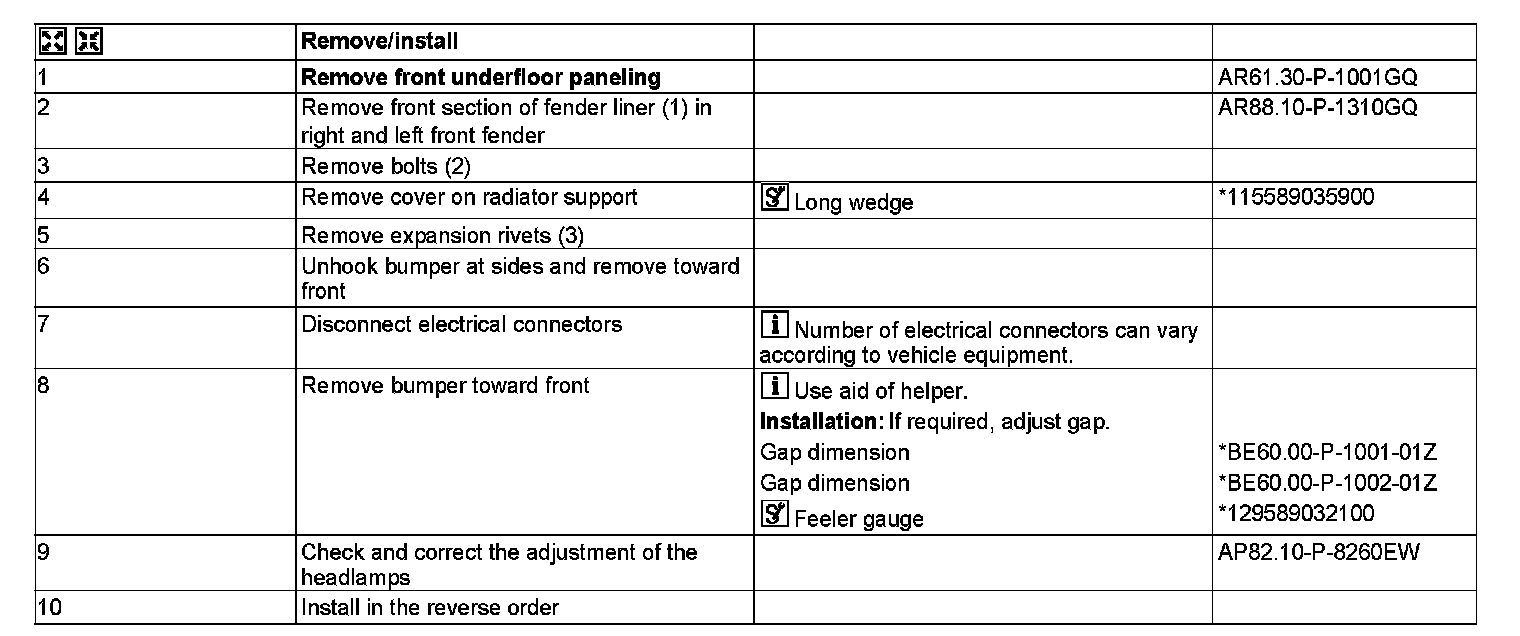

AR88.20-P-2000GQ Remove/Install Front Bumper
MODEL 166.0

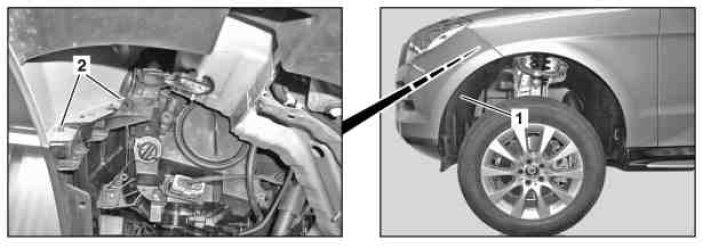

1 Front section of fender liner
2 Bolts

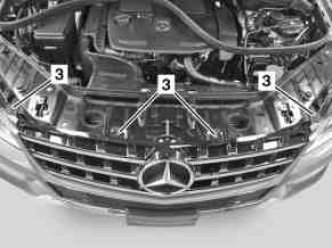

3 Expanding rivets











115 589 03 59 00
Long wedge





129 589 03 21 00
Feeler gauge
