Home >> Mercedes Benz Truck >> 2012 >> ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928) >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Service and Repair >> AR54.21-P-2009GQ Remove/Install Rear Control Unit

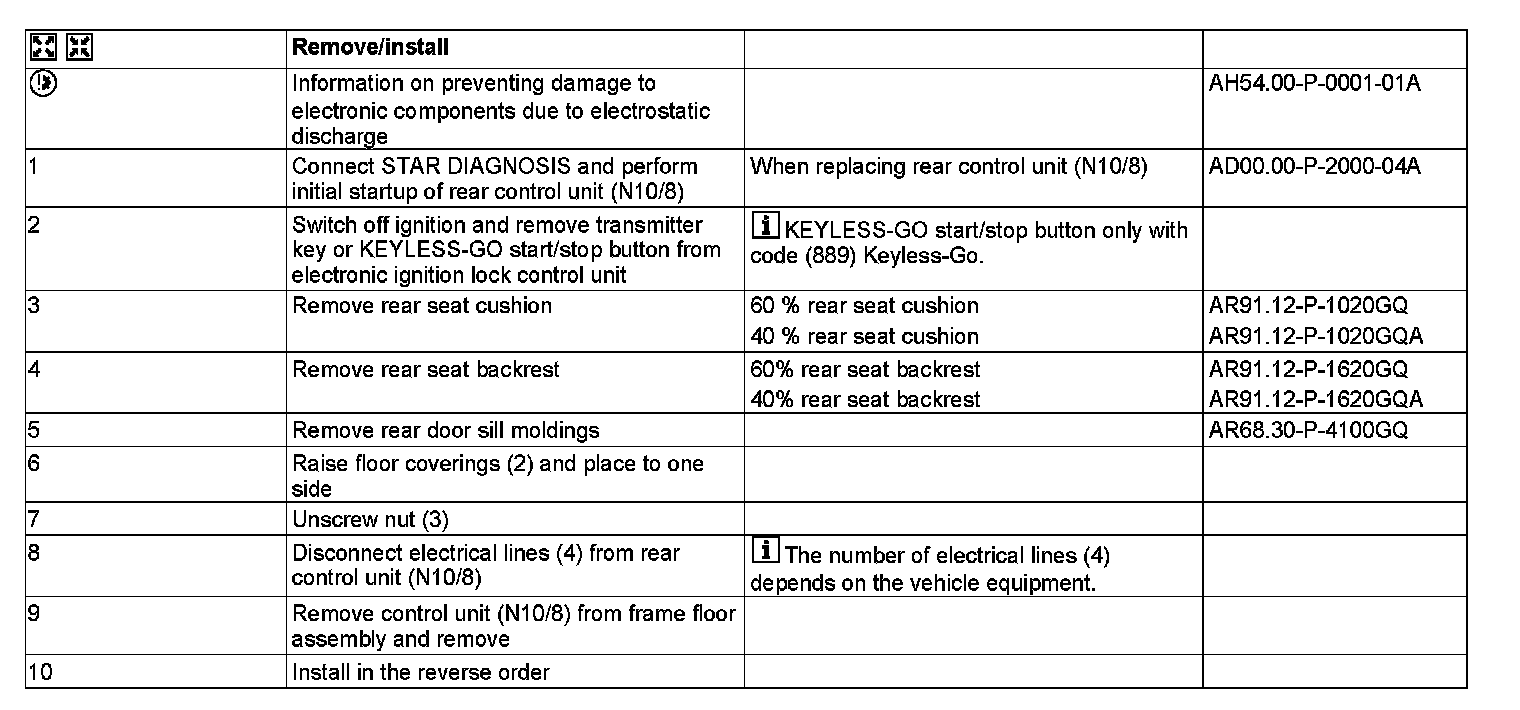

AR54.21-P-2009GQ Remove/Install Rear Control Unit




AR54.21-P-2009GQ Remove/Install Rear Control Unit
MODEL 166

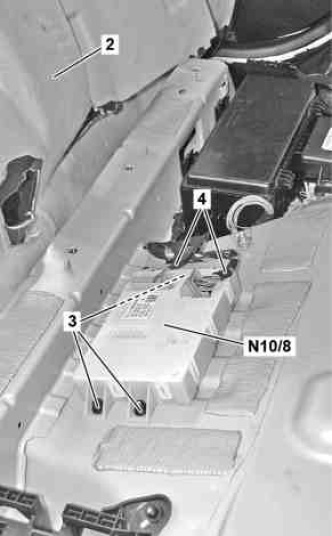

2 Floor Covering
3 Nuts
4 Electrical line
N10/8 Rear control unit
