PE54.21-P-2110NAB Rear Control Unit
PE54.21-P-2110NAB Rear Control Unit
PE54.21-P-2110NAB Rear Control Unit
MODEL 166.8
-

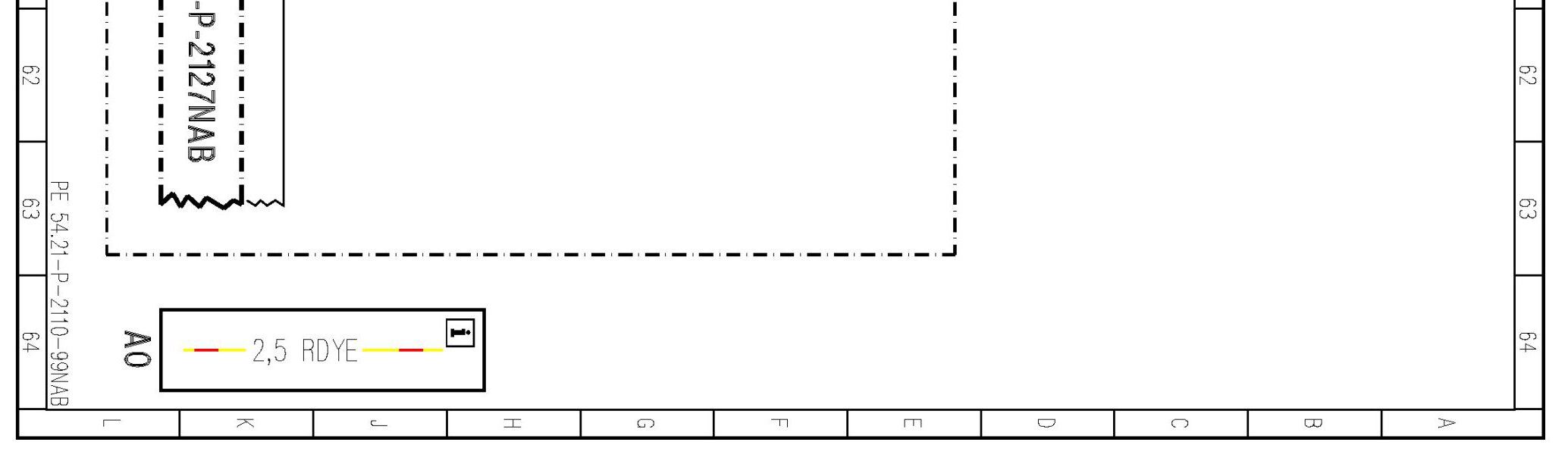

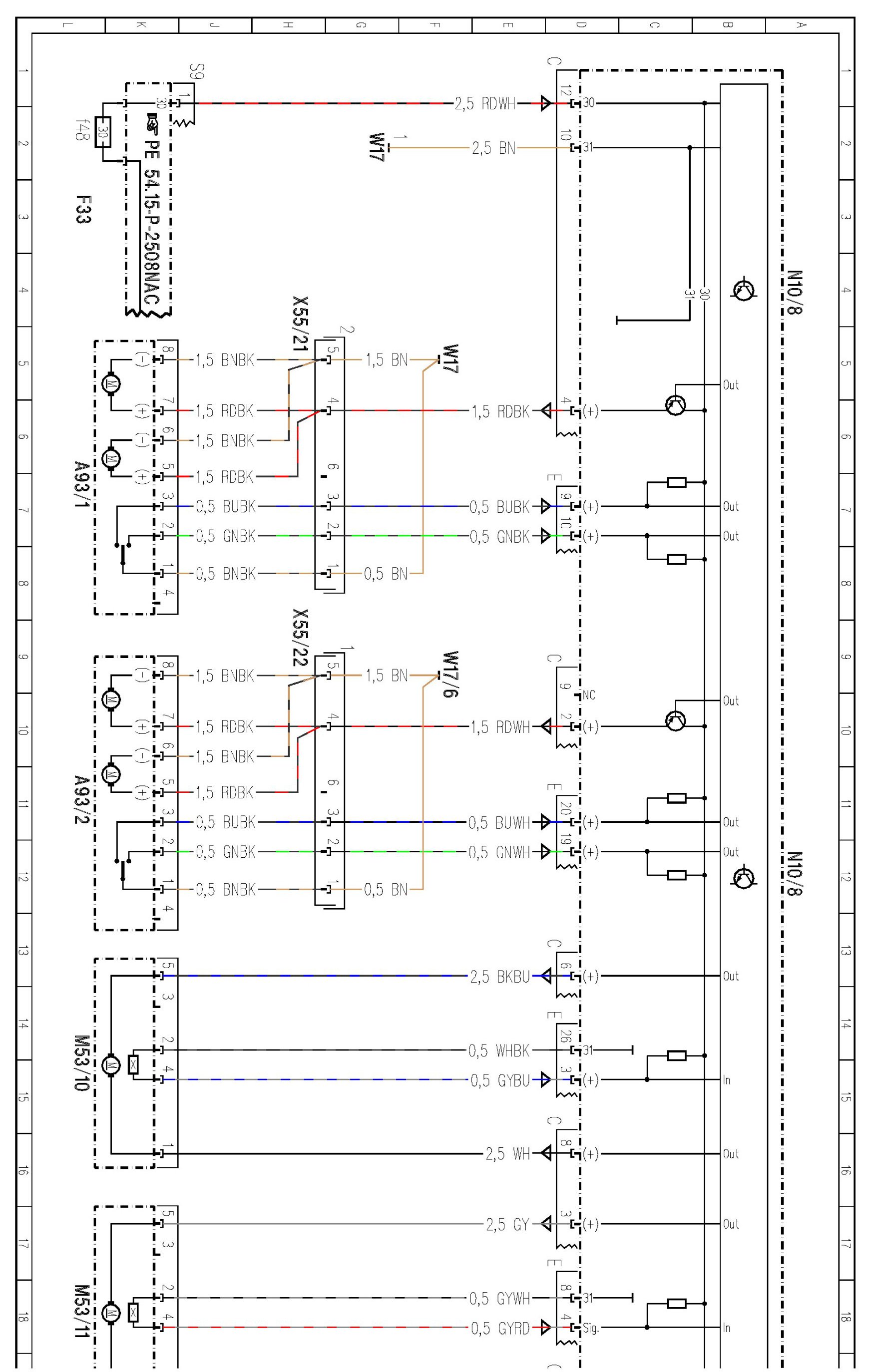

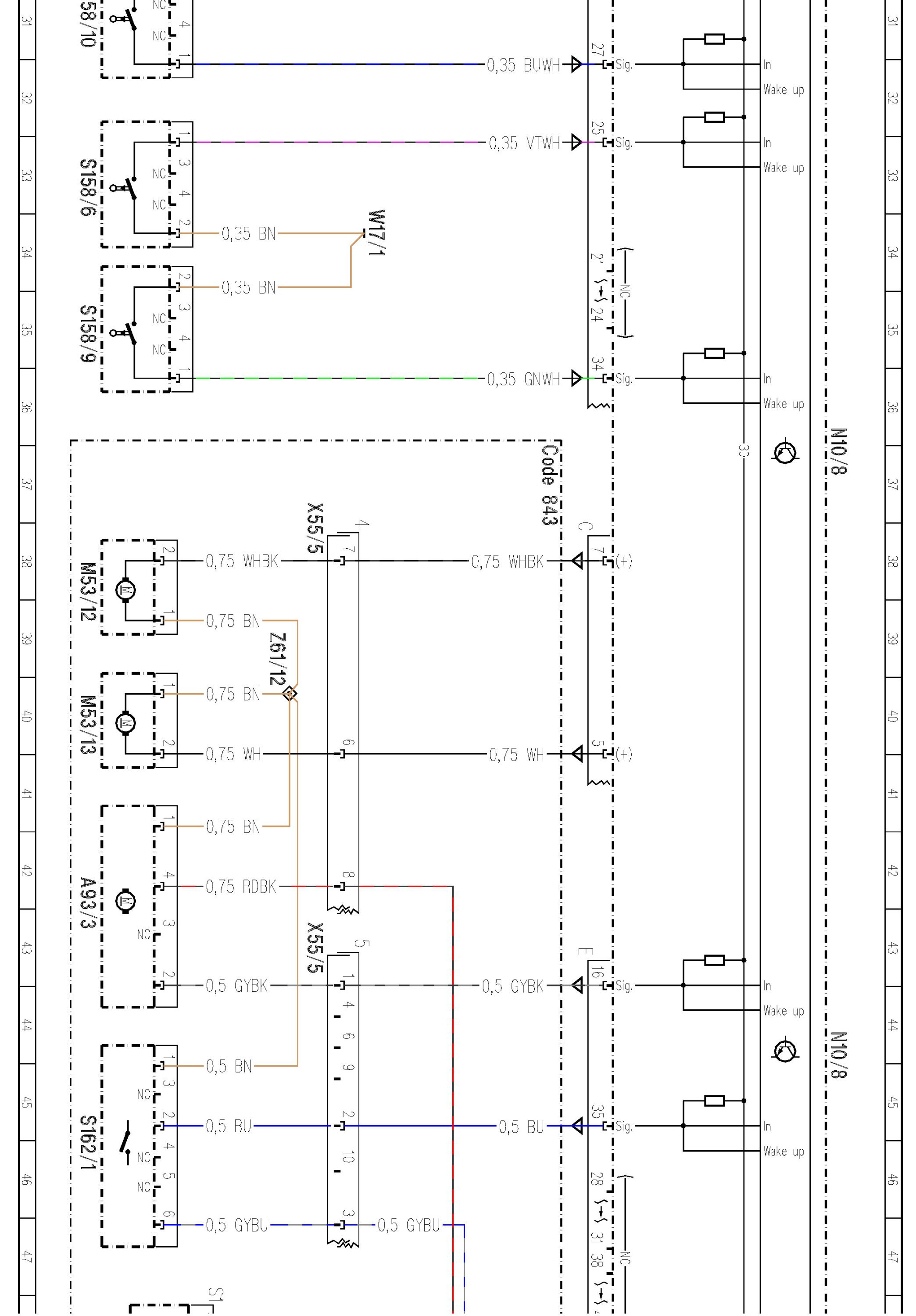

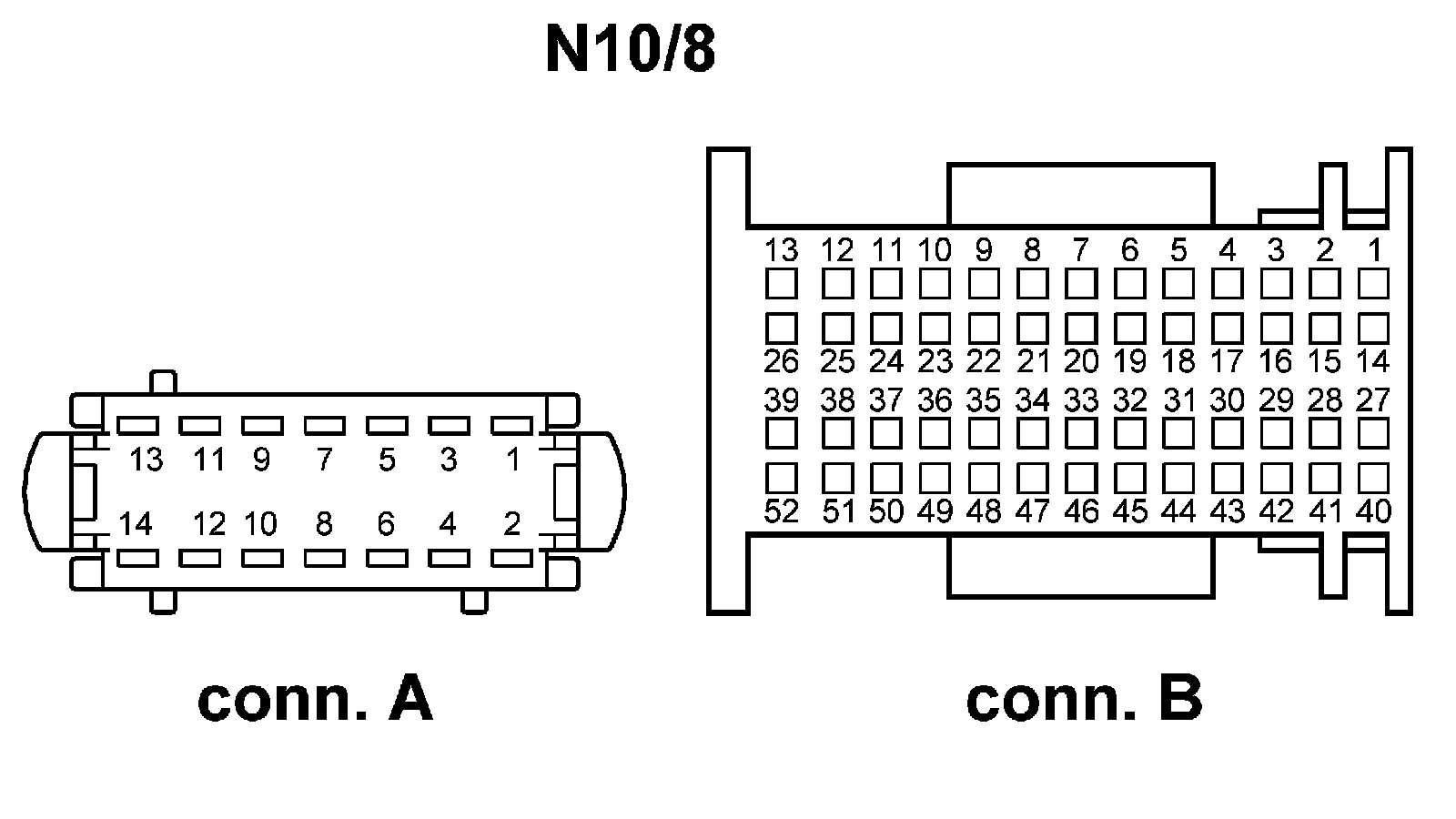

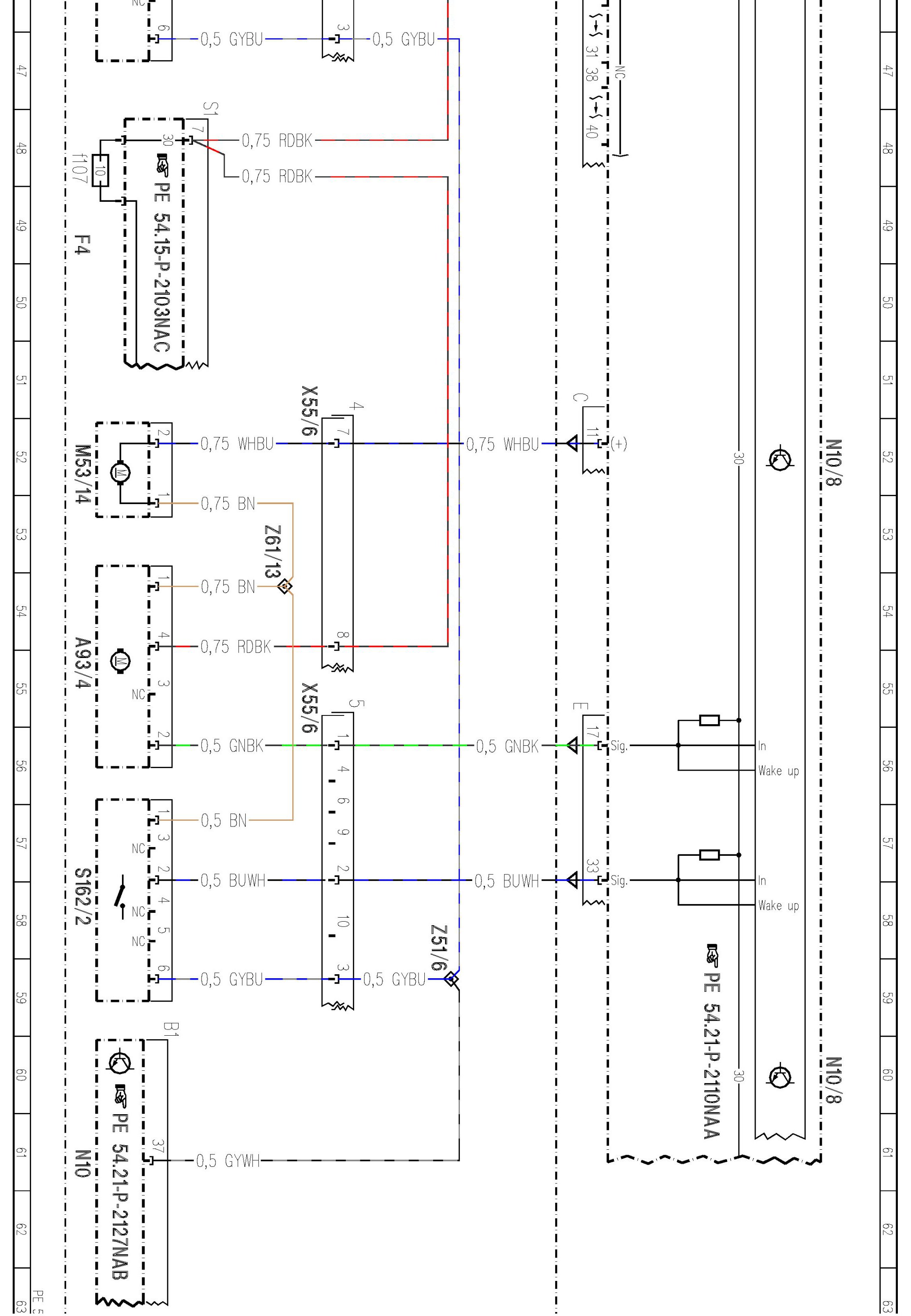

Control Unit N10/8, Sheet 2

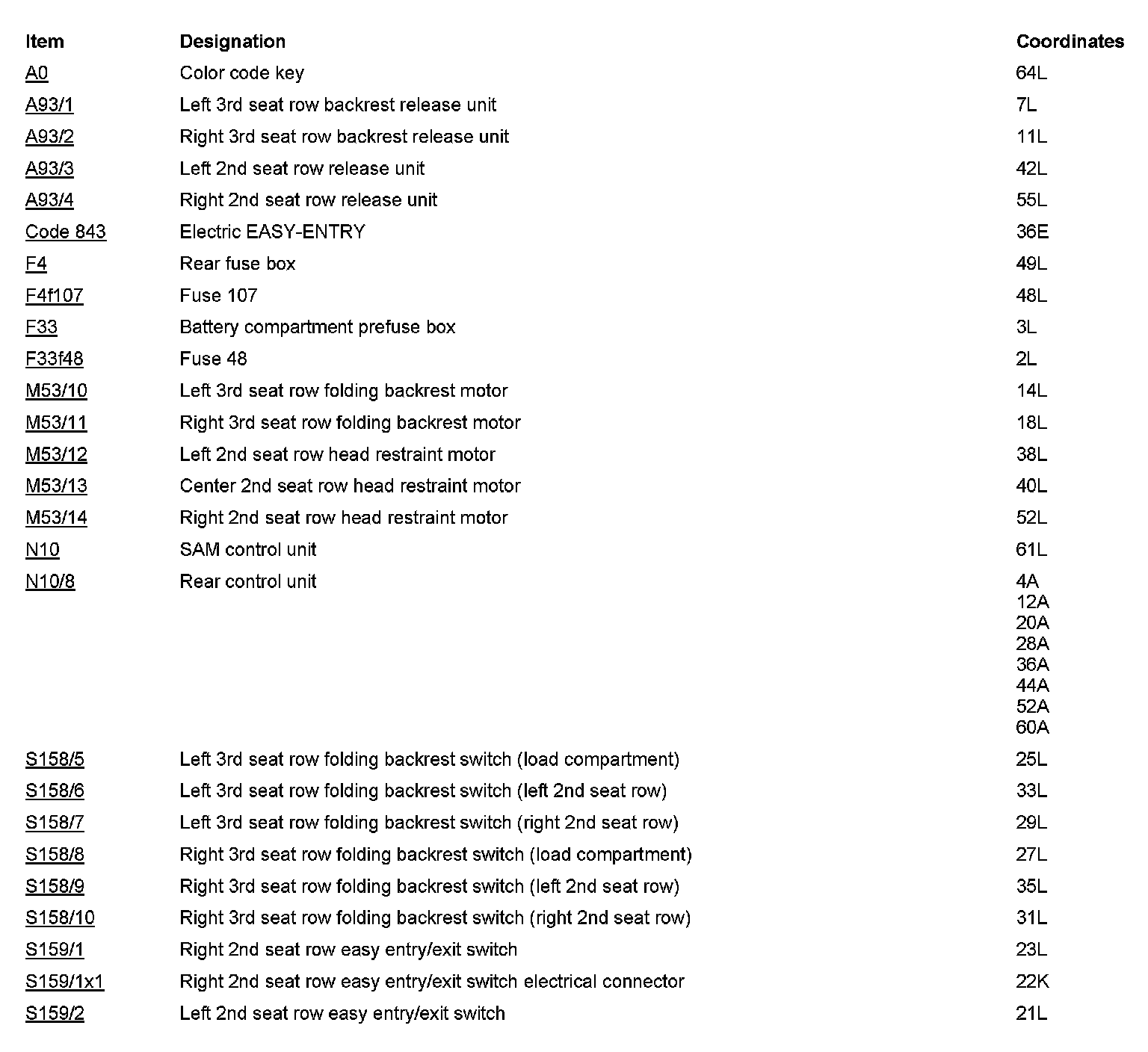

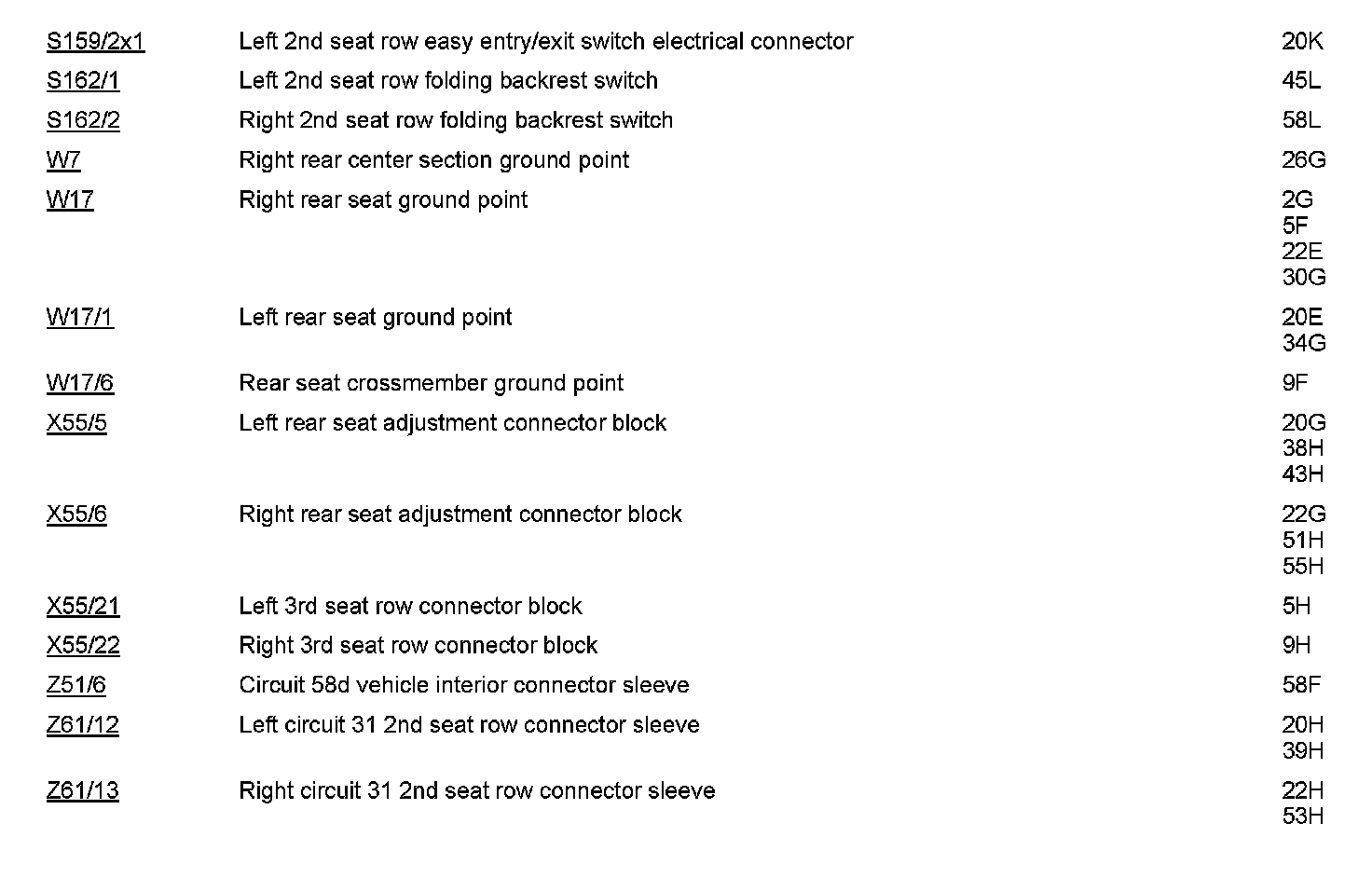

Component Locations:
Component Location photographs can be found via their component names at the vehicle level.
Locations
