Auxiliary Step / Running Board: Service and Repair

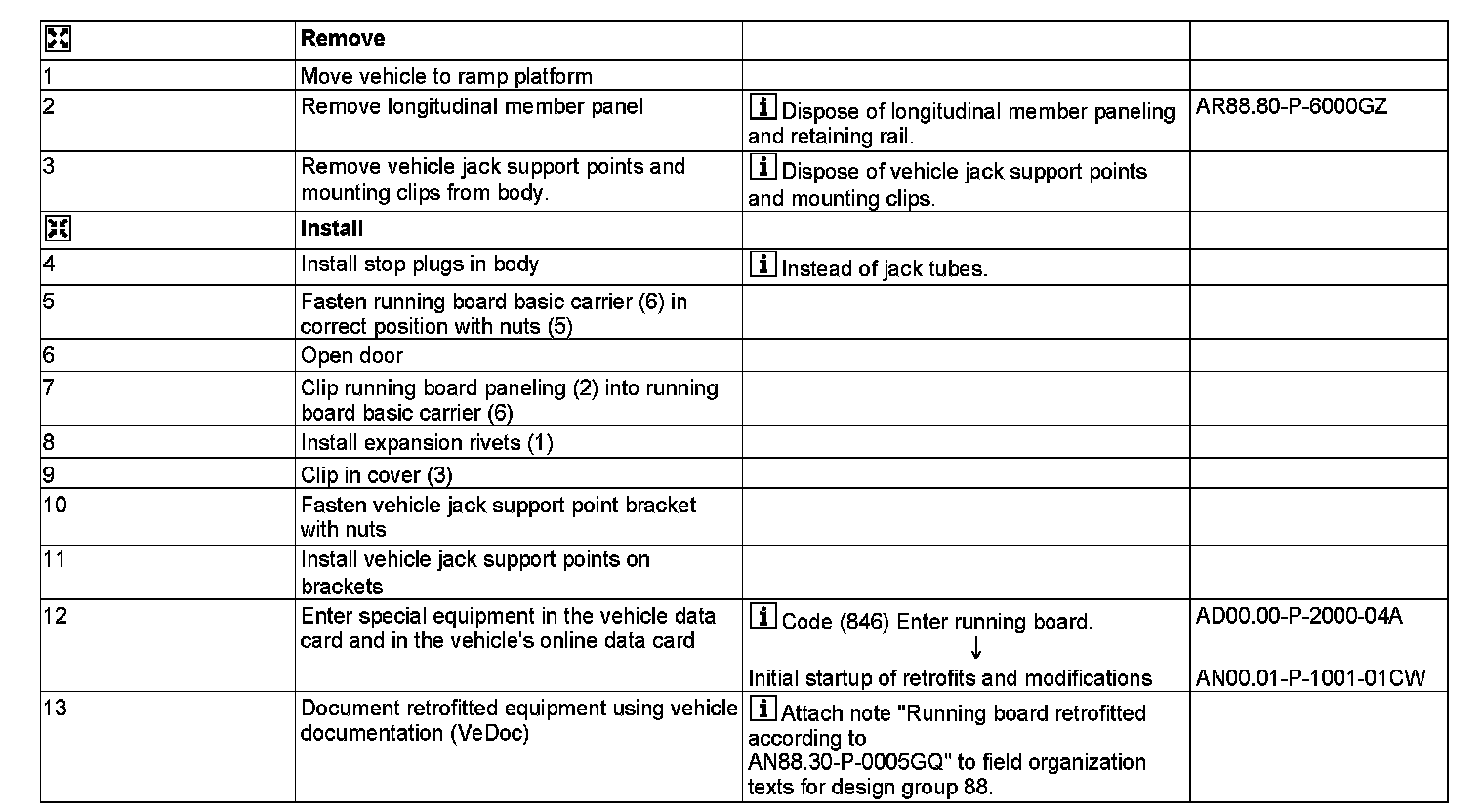

AN88.30-P-0005GQ Retrofit Running Boards

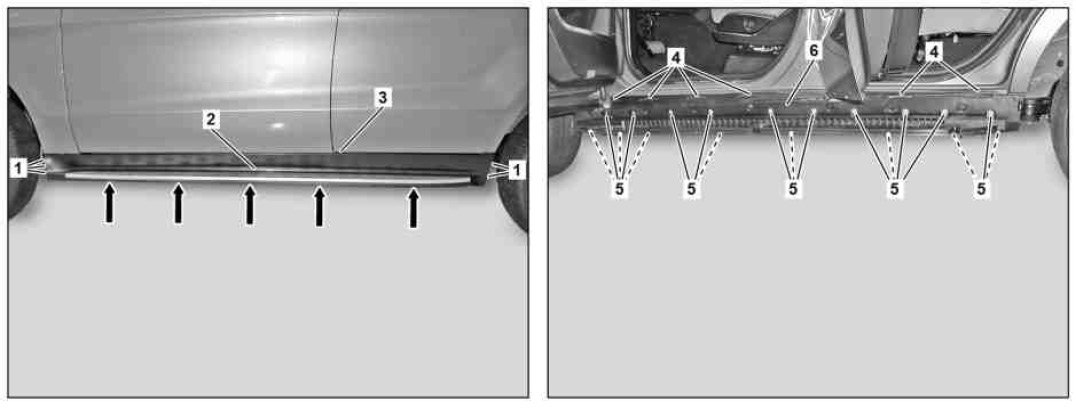

MODEL 166.0

1 Expanding rivets
2 Running board paneling
3 Cover
5 Nuts
6 Basic carrier paneling
