Home >> Mercedes Benz Truck >> 2012 >> ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Speaker >> Service and Repair >> AR82.62-P-7876GZ Remove/Install the Speakers In the Headliner

AR82.62-P-7876GZ Remove/Install the Speakers In the Headliner



AR82.62-P-7876GZ Remove/Install the Speakers In the Headliner
- with CODE (810) Sound system

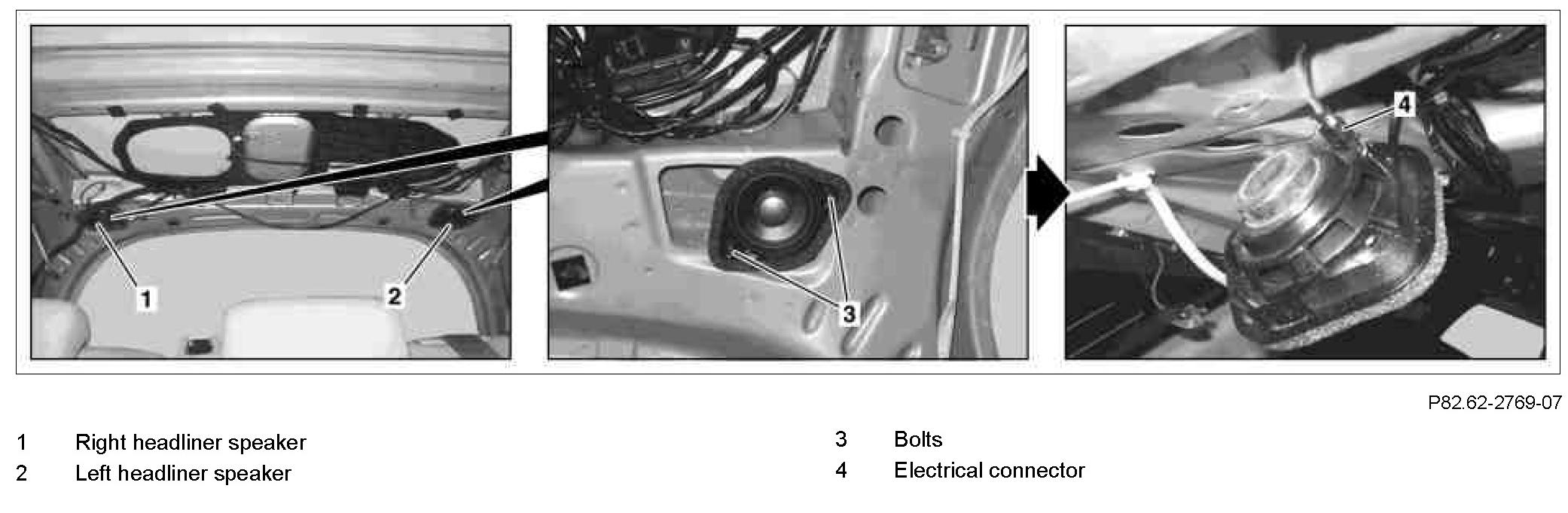

Component Identification:

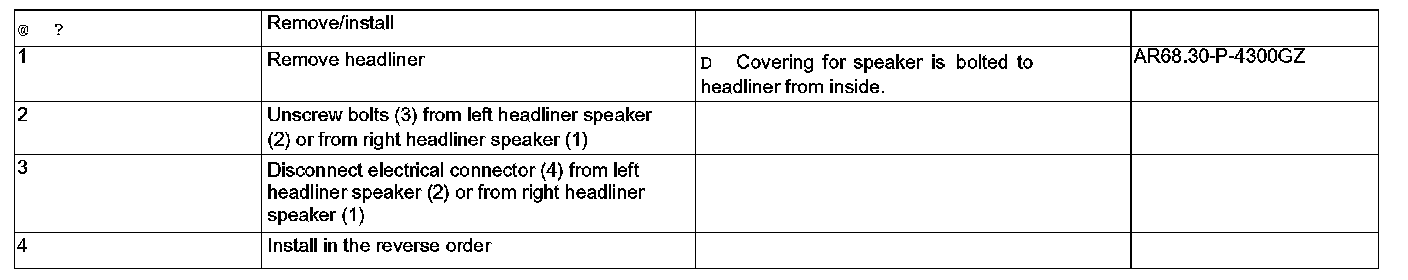

Steps 1 - 4:
