AR82.62-P-7874GZ Remove/Install Loudspeakers In Rear Doors



AR82.62-P-7874GZ Remove/Install Loudspeakers In Rear Doors

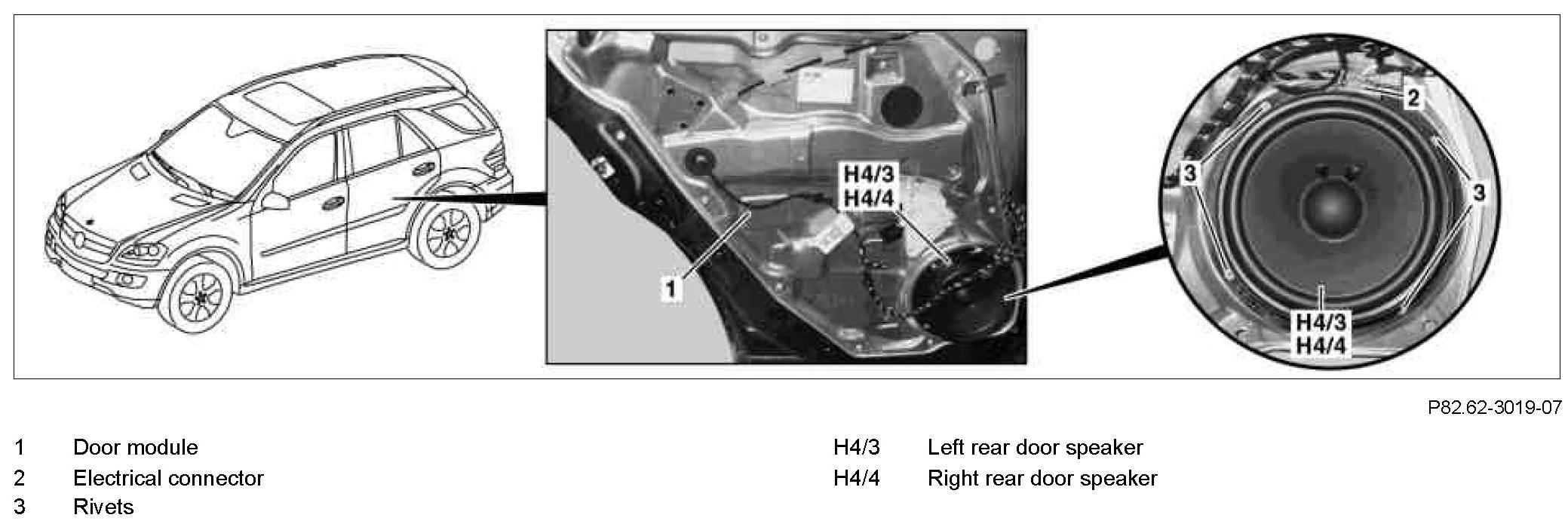

Component Identification:

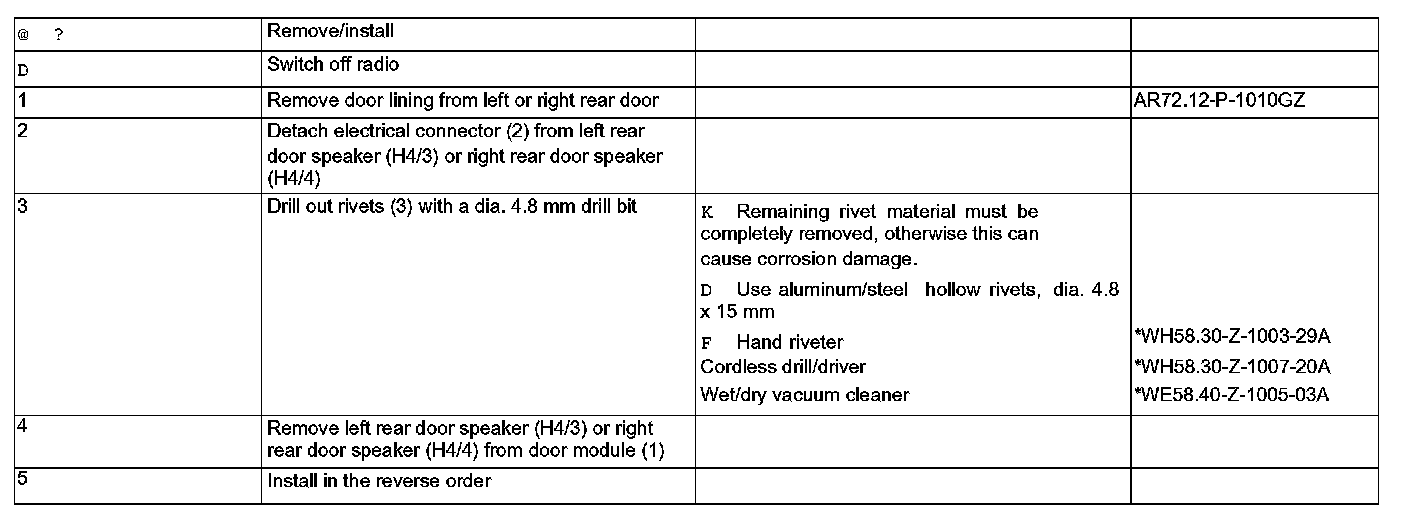

Steps 1 - 5:

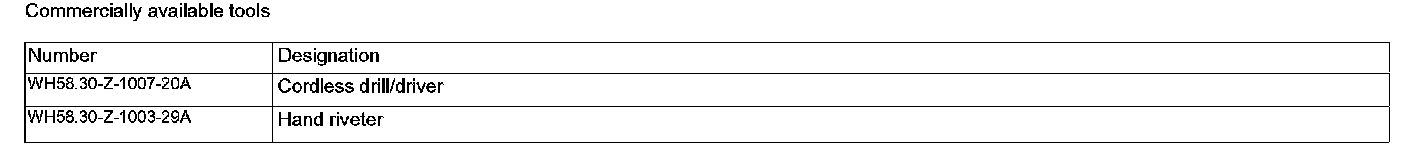

Commercially Available Tools:

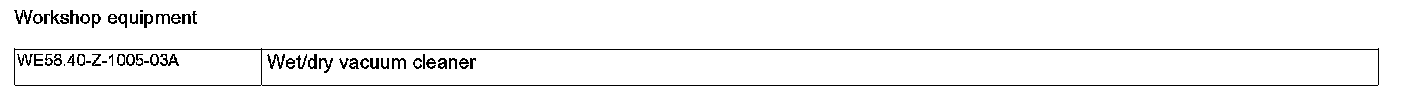

Workshop Equipment:
