Removal and Replacement



AR82.60-P-7720SXS Remove/Install Display In Rear
- with CODE (864) Rear entertainment system

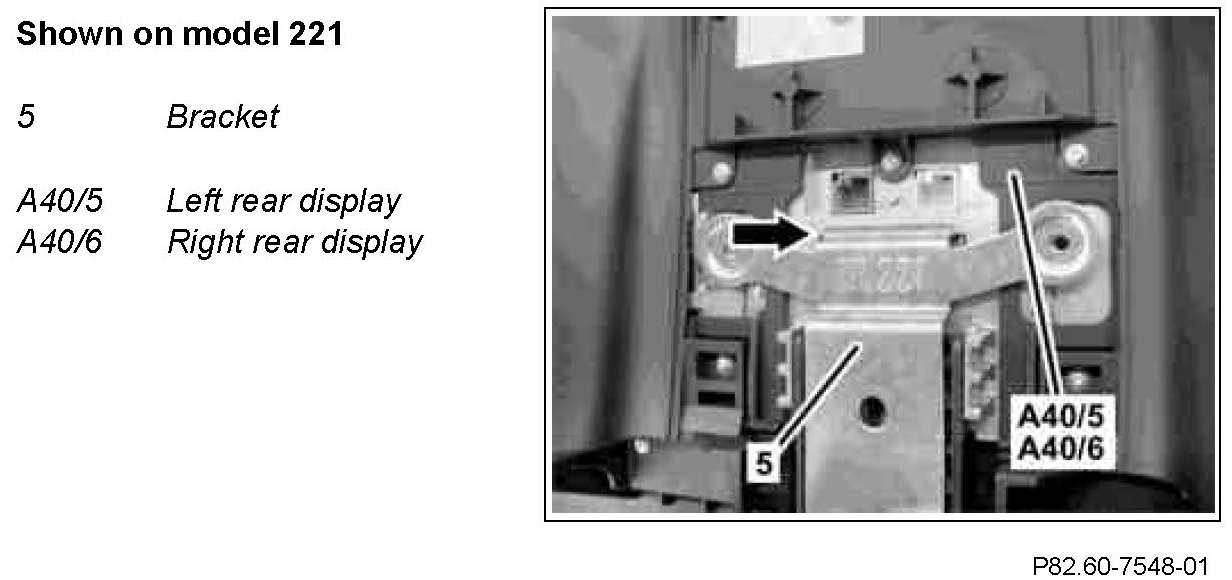

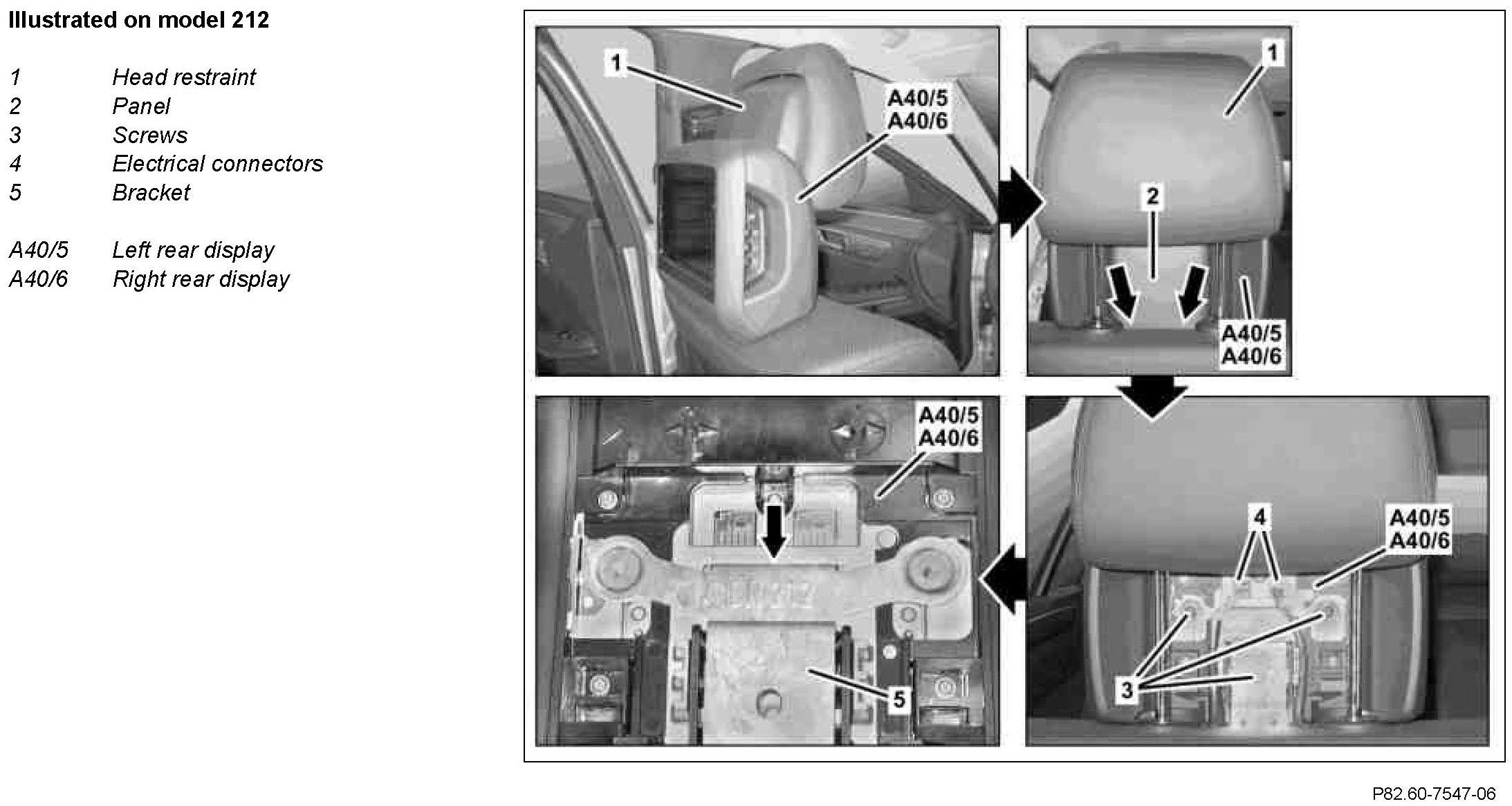

Component Identification:




Component Identification:

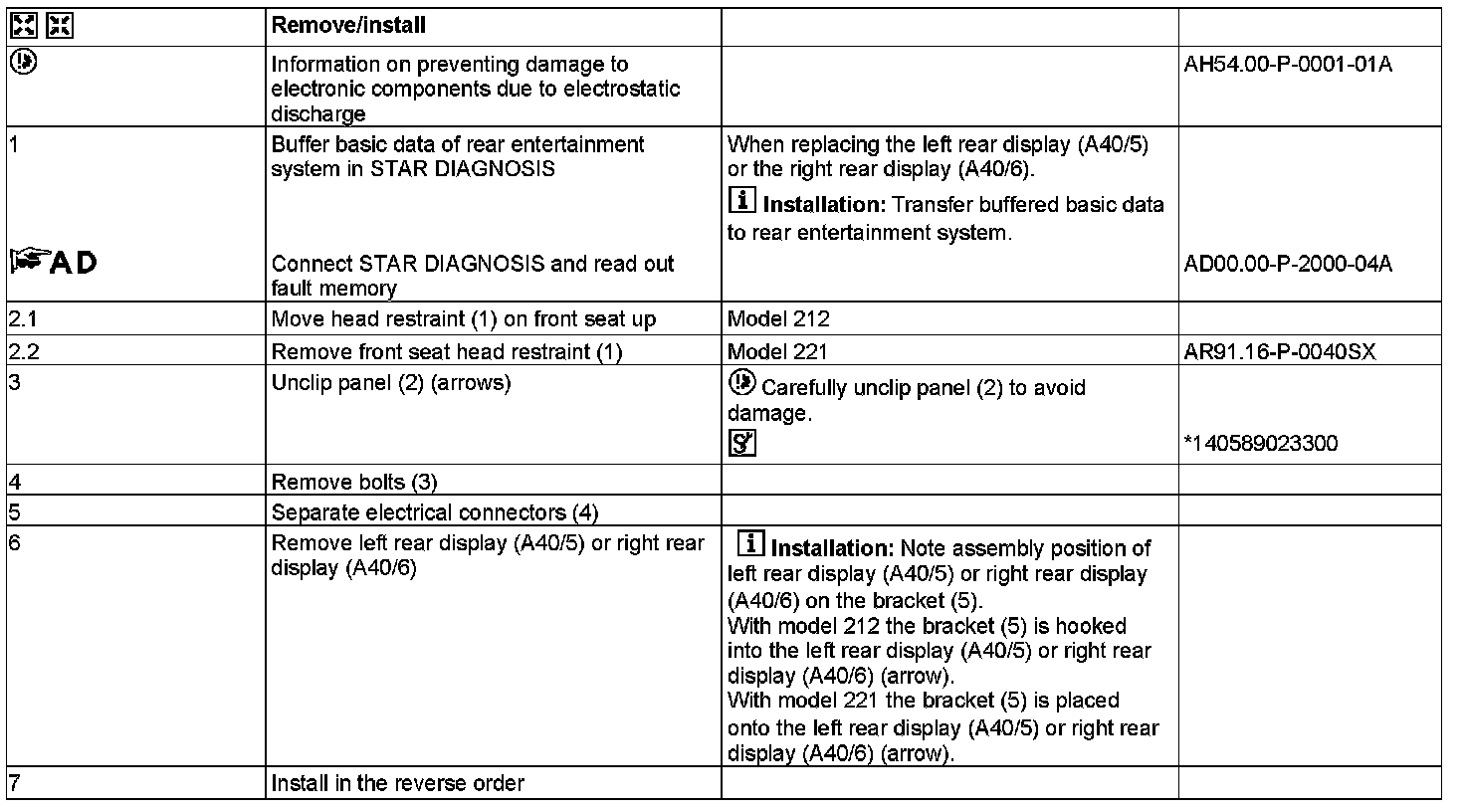

Steps 1 - 7:

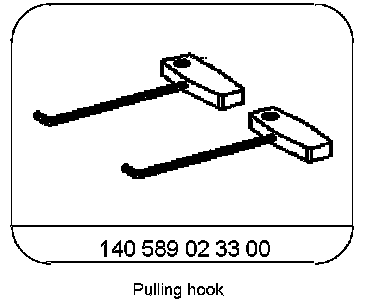

Special Tools:
