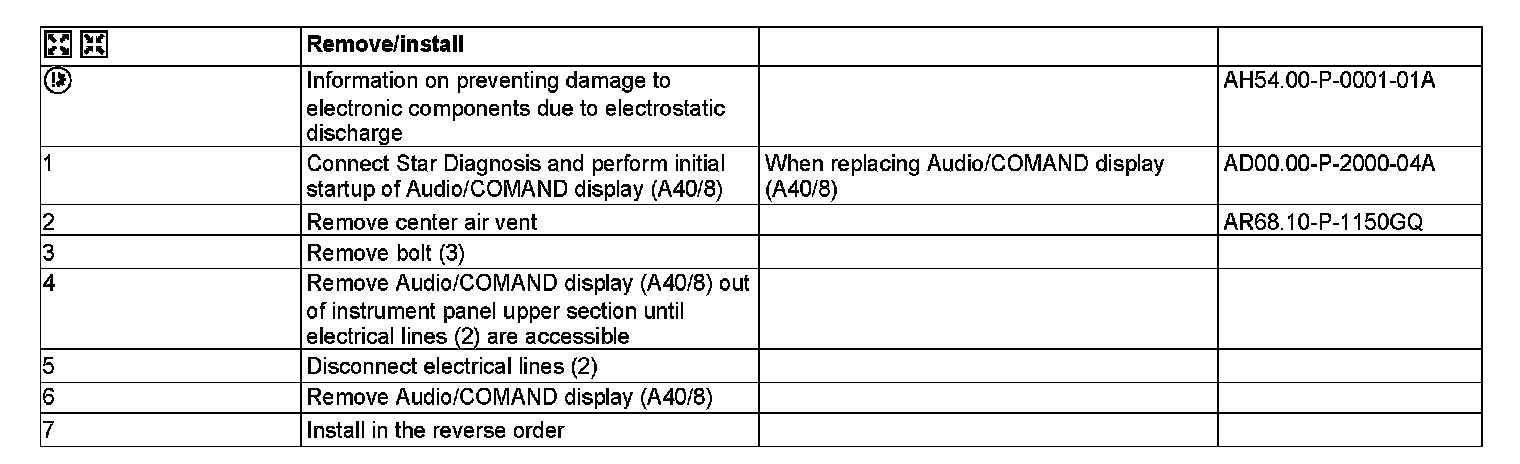

AR82.60-P-7722GQ Remove/Install Radio Display




AR82.60-P-7722GQ Remove/Install Radio Display
MODEL 166

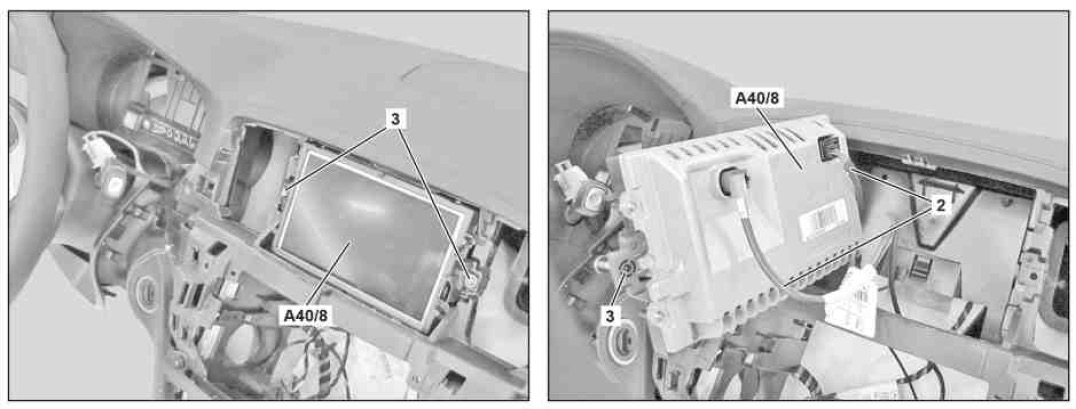

2 Electrical line
3 Bolts
A40/8 Audio/COMAND display
