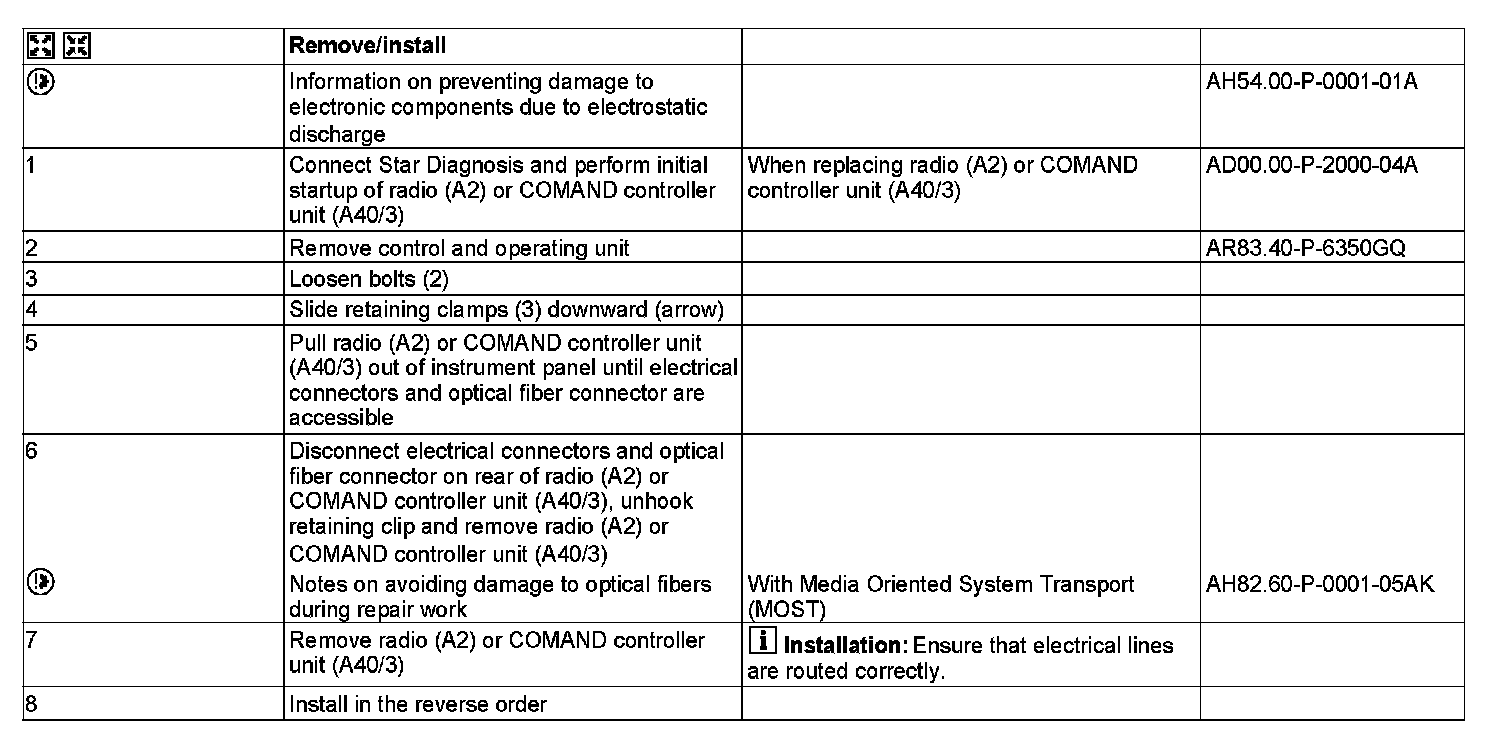

AR82.60-P-7502GQ Remove/Install Radio




AR82.60-P-7502GQ Remove/Install Radio
MODEL 166

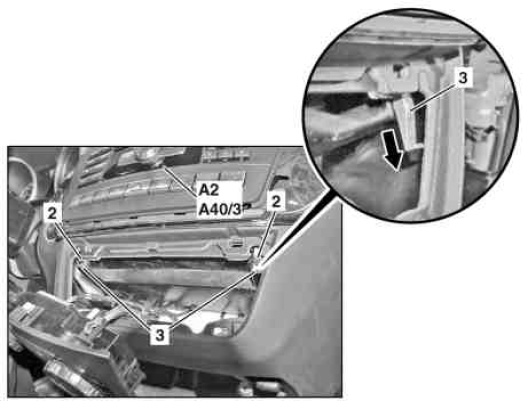

2 Bolts
3 Retaining clips
A2 Radio
A40/3 COMAND control unit
