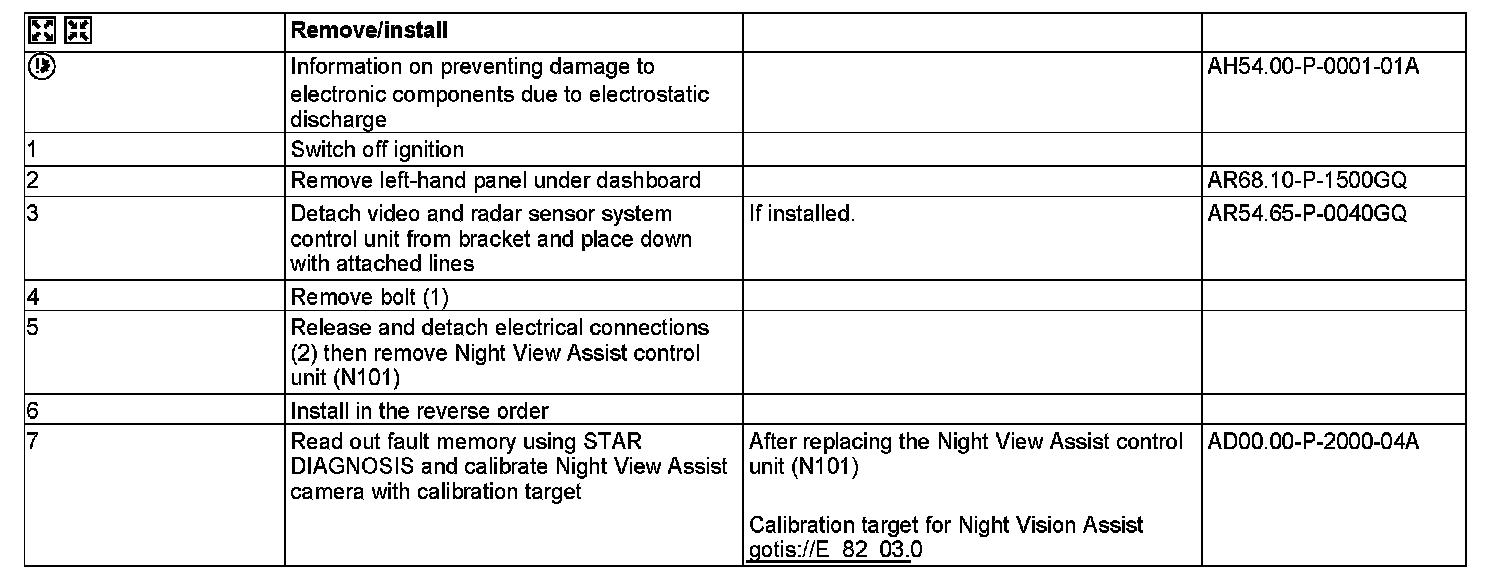

AR54.30-P-3100GQ Remove/Install Night View Assist Control Unit




AR54.30-P-3100GQ Remove/Install Night View Assist Control Unit
MODEL 166
- with CODE (610) Night vision assist

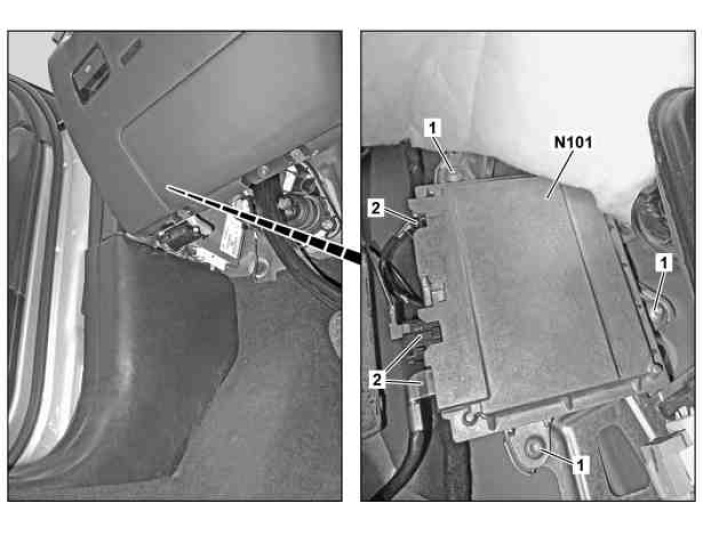

Shows model 166.024
1 Screw
2 Electrical connector
N101 Night View Assist control unit
