AN82.85-P-0020-01GQ Retrofit Navigation Box

AN82.85-P-0020-01GQ Retrofit Navigation Box
Model 166.0
- with code (510) Audio 20 with CD changer
- with code (523) MB Audio 20 radio
- except code (512) COMAND APS with DVD changer
- except code (527) COMAND APS with single DVD drive (with navigation)
- except code (494) USA version
- except code (498) Japan version

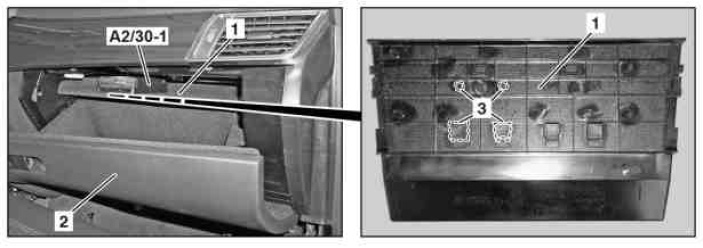

1 Remove shelf (1) from glove box (2).
2 Break coverings (3) out of shelf (1).
If the navigation box is installed into a right-hand drive vehicle, then the other coverings must be used.
3 Insert holder for navigation module (A2/30-1) into cutouts on shelf (1), and fasten in place using screws/bolts.
