AN82.61-P-0001-06GQA Retrofit MOST Fiber Optic Cable Wiring Harness

AN82.61-P-0001-06GQA Retrofit MOST Fiber Optic Cable Wiring Harness
Model 166.0
- with code (537) Digital radio
- with code (810) Sound system
- except code (523) MB Audio 20 radio





1 Route optical fiber wiring harness (1) from COMAND installation opening along vehicle wiring harness and fix in place using cable ties.
The connector of the optical fiber wiring harness (1) is connected during the installation of the media interface control unit (N125/1).

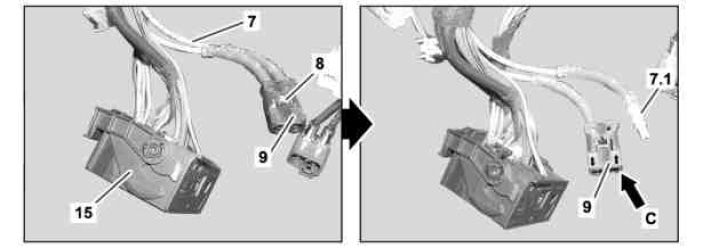

2 Remove coupling (9) of on-board optical fiber (7) from black 44-pin coupling (15).
3 Remove blue fuse (8) from coupling (9) of vehicle's own optical fiber (7).
4 Remove optical fiber (7.1) of on-board optical fiber (7) from input contact cavity (arrow C) of coupling (9).
Observe arrows on coupling (9).

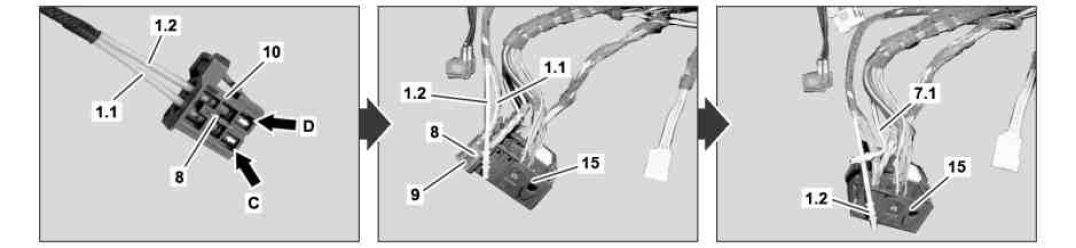

5 Remove blue fuse (8) from coupling (10) of optical fiber wiring harness.
6 Remove optical fiber (1.1) from input contact cavity (arrow C) of optical fiber wiring harness coupling (10).
Observe arrows on coupling (10).
7 Install optical fiber (1.1) into free contact cavity of coupling (9) of on-board optical fiber.
8 Install blue fuse (8) in coupling (9) of on-board optical fiber.
9 Remove optical fiber (1.2) from output contact cavity (arrow D) of optical fiber wiring harness coupling (10).
10 Install connector (9) of on-board optical fiber in external slot of black 44-pin connector (15).

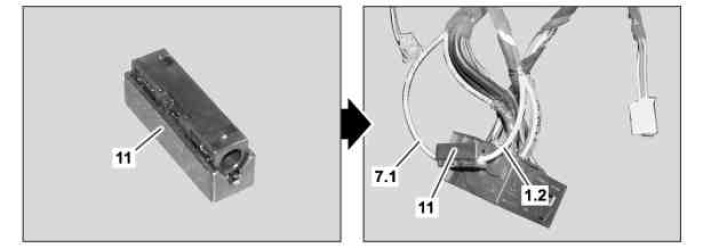

11 Connect optical fiber (7.1) and optical fiber (1.2) to connection piece (11).
The connection piece (11) is an adapter for reclosing the ring of the optical fiber.
The optical fiber (7.1) and the optical fiber (1.2) must audibly engage.
12 Lock connection piece (11) by pressing it together.
