AN82.60-P-0016-02GQ Retrofit Media Interface Wiring Harness

AN82.60-P-0016-02GQ Retrofit Media Interface Wiring Harness
Model 166.0
- except code (523) MB Audio 20 radio

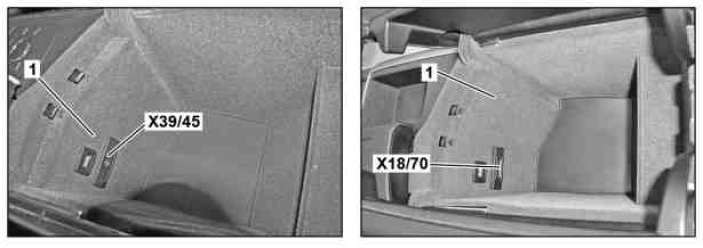

1 Electrical connector
Unclip AUX connection (X39/45) from mounting console (1).
Electrical connector
The AUX connection (X39/45) is no longer required.
2 Clip media interface electrical connector (X18/70) into mounting console (1).
3 Route media interface wiring harness on underside of center console.
